$289.99

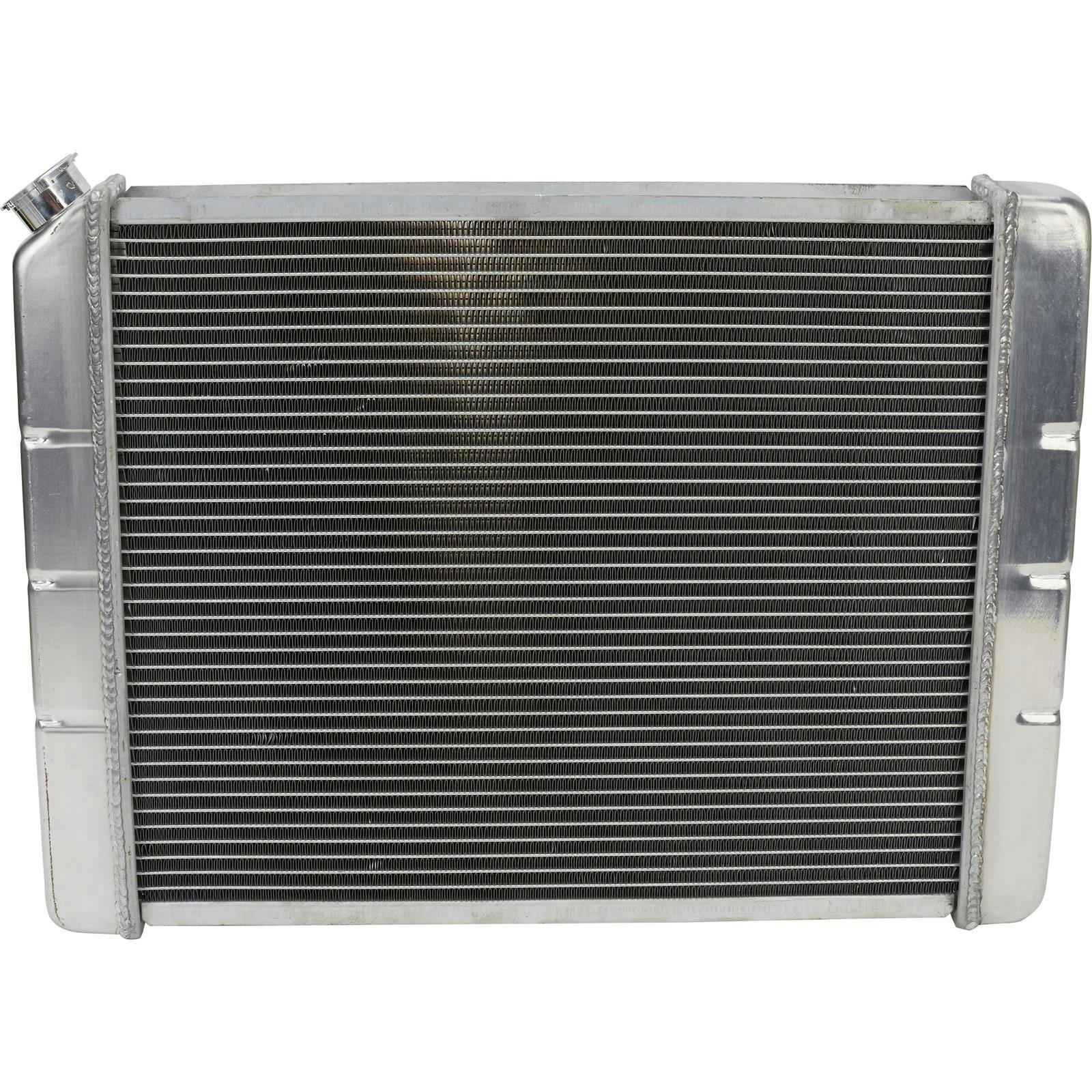

Speedway 1970-81 Camaro / 1968-79 Nova Aluminum Radiator

Speedway 1970-81 Camaro / 1968-79 Nova Aluminum Radiator
70-81 Chevy Camaro, 69-79 Chevy Nova, Single Pass Radiator Style, Aluminum, 2 Row Quantity
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle










Speedway 1970-81 Camaro / 1968-79 Nova Aluminum Radiator
X









Details
Reviews
Q&A
Videos & Articles
- Direct replacement for many '64-and-up cars and trucks
- Welded construction and includes built-in transmission cooler
- Applications are for reference only and you need to measure your existing radiator for proper dimensions
- Measurements listed are overall which includes radiator tanks
- Spal fan and shroud assemblies are designed to fit the radiators listed only and are sold separately
Details
Radiator Style:
Single Pass
Radiator Flow Direction:
Crossflow
Material Type:
Aluminum
Inlet Location:
Upper driver side
Outlet Location:
Lower passenger side
Row Quantity:
2
Tube Size:
1.00"
Overall Width Range:
25.00" to 25.99"
Overall Width:
25.38"
Overall Height Range:
18.00" to 18.99"
Overall Height:
18.63"
Overall Thickness:
3.00"
Core Width Range:
20.00" to 20.99"
Core Width:
20.75"
Core Height Range:
17.00" to 17.99"
Core Height:
17.375"
Core Thickness:
2.25"
Finish:
Natural
Cooling Fan:
Not Included
Transmission Cooler:
Yes
Shroud Included:
No
Filler Neck Height:
1.00"
Inlet Size:
1.34
Fan Included:
No
MFG. Part #:
9175028
Sold in Quantity:
Each
Info
These all aluminum radiators are a direct replacement for 1968-1979 Chevy II Nova and 1970-81 Camaro. They Feature two rows of 1" tubes, all welded construction and includes a built-in transmission cooler. The heater core return nipple is 5/8". The transmission cooler inlet and outlet is 1/2"-20 inverted flare, which makes use of 5/16" tubing.
- 1970-1981 Camaro
- 1968-79 Nova
NOTE: Applications for reference only - measure your existing radiator for proper dimensions. Measurements listed are overall which includes radiator tanks.
Fan and shroud assemblies available separately.
Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.
Item Details
25-3/8" Wide, 18-5/8" TallStyle B
Application
- 1972-80 Camaro, std duty radiator
- 1968-79 Nova, std duty radiator
- This radiator is the smaller of two radiator options for Camaro/Nova
- Big block cars and HD radiator options V01 cars use wider radiators
Specs
Notes
1/4" NPT inlet for a temp sensor. Trans cooler inlet and outlet fittings are both 1/2"-20 double flare threads. Overflow line nipple is .32" OD.Important Messages
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
