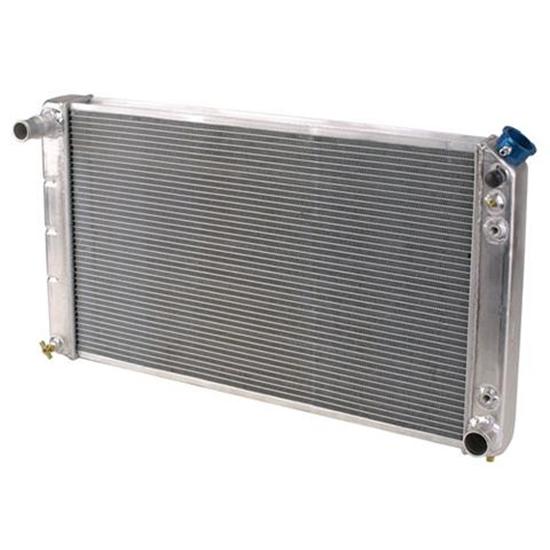

Speedway 1966-90 GM A-Body/B-Body/Truck Aluminum Radiator
by
Speedway Motors5 Reviews
|
6 Questions
- Welded construction
- Includes built-in transmission cooler
- Also listed are aluminum fan and shrouds for mechanical fans or Spal electrical fans with shroud
See More
$317.99
each
In Stock
$344.00
Save $26.01
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Single Pass Radiator Style, Aluminum, 2 Row Quantity
- Welded construction
- Includes built-in transmission cooler
- Also listed are aluminum fan and shrouds for mechanical fans or Spal electrical fans with shroud
See more details
Key Specs
Radiator Style | Single Pass |
Radiator Flow Direction | Crossflow |
Material Type | Aluminum |
Inlet Location | Upper driver side |
Outlet Location | Lower passenger side |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
These all aluminum radiators features two rows of 1" tubes, all welded construction and includes a built-in transmission cooler.
Fits
- 1968-72 Chevelle/Malibu
- 1970-77 Monte Carlo
- 1974-77 Buick Regal
- 1966-77 Olds Cutlass
- 1966-77 Pontiac Grand Prix
- 1968-77 Pontiac LeMans/GTO
- 1972-79 Chevy Impala, Caprice, Bel Air, and Biscayne
- 1973-90 Chevy/GMC Truck
NOTE: Applications for reference only - measure your existing radiator for proper dimensions. Measurements listed are overall which includes radiator tanks. Lower hose outlet diameter is 1-1/2" for additional coverage of the B/O/P V8 and V6 applications. When using with a Chevy V8 application typically used with the 1-3/4" lower outlet size, the lower outlet on the radiator will either need to be sleeved to increase the diameter to work with the 1-3/4" lower hose or a different lower hose will need to be utilized to work with the 1-1/2" lower outlet size.
Fan and shroud assemblies available separately.
Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.
Application
Fits
- 1968-72 Chevelle/Malibu
- 1970-77 Monte Carlo
- 1974-77 Buick Regal
- 1966-77 Olds Cutlass
- 1966-77 Pontiac Grand Prix
- 1968-77 Pontiac LeMans/GTO
- 1972-79 Chevy Impala, Caprice, Bel Air, and Biscayne
- 1973-90 Chevy/GMC Truck
Guides & Documents
Specifications
Specifications
KEY SPECS | |
---|---|
MFG. Part # | 9175026 |
Brand | Speedway Motors |
Radiator Style | Single Pass |
Radiator Flow Direction | Crossflow |
Material Type | Aluminum |
Inlet Location | Upper driver side |
Outlet Location | Lower passenger side |
Row Quantity | 2 |
Tube Size | 1.00" |
Overall Width Range | 33.00" to 33.99" |
Overall Width | 33" |
Overall Height Range | 18.00" to 18.99" |
Overall Height | 18.5" |
Overall Thickness | 3.125" |
Core Width Range | 28.00" to 28.99" |
Core Width | 28.38" |
Core Height Range | 17.00" to 17.99" |
Core Height | 17.375" |
Core Thickness | 2.25" |
Finish | Natural |
Cooling Fan | Not Included |
Transmission Cooler | Yes |
Shroud Included | No |
Radiator Cap Included | No |
GENERAL | |
Filler Neck Height | 1" |
Inlet Size | 1.25 |
Outlet Size | 1.50 |
Fan Included | No |
Sold in Quantity | Each |
