#917351

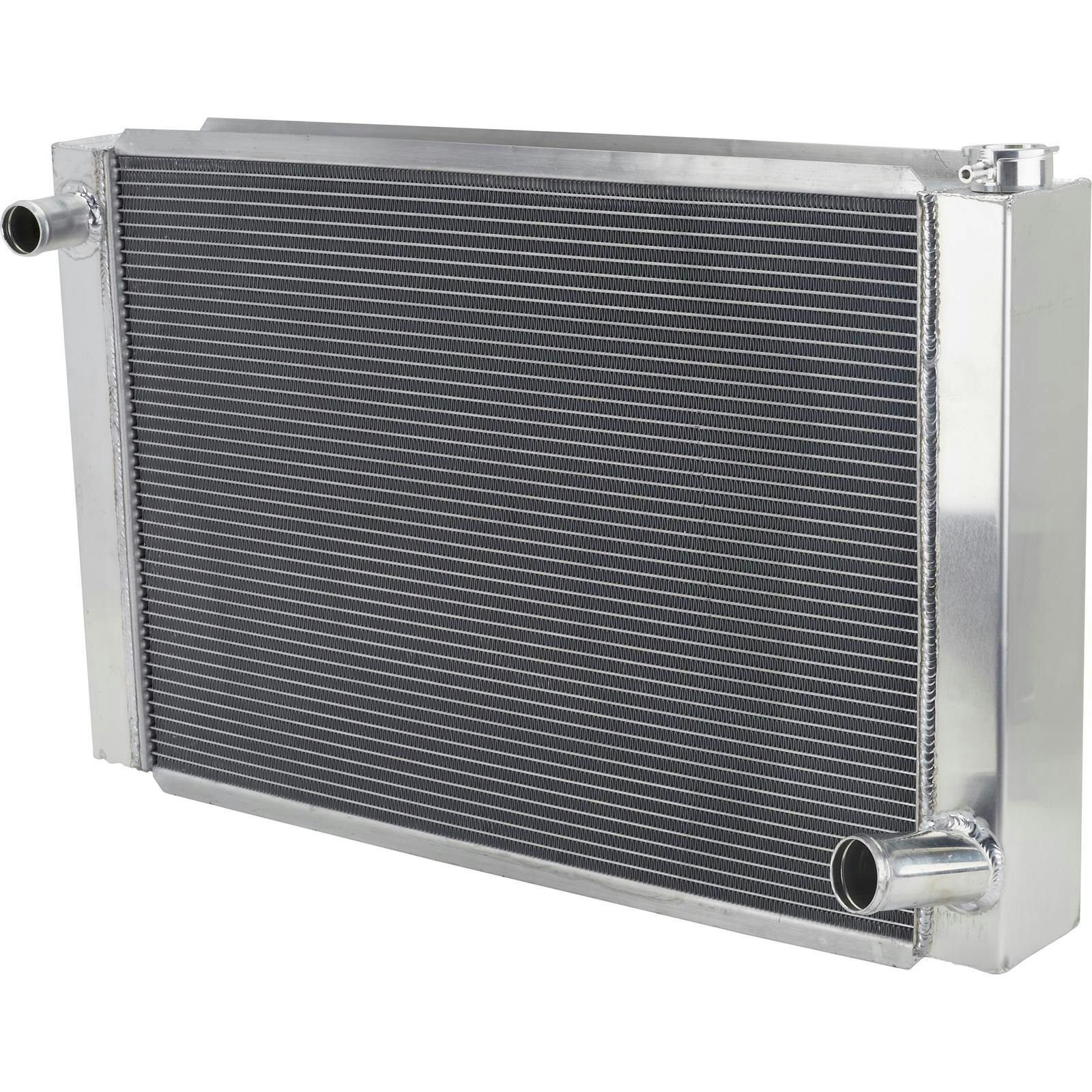

Race Pro SBC Chevy 3-Row Aluminum Racing Radiators
- 3 rows of 1" tubes for high performance cooling
- 30% more cooling capacity than any brand of 2 row 1" tube radiator!
- Machined billet aluminum SAE compliant filler neck
Starting from
$656.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Single Pass Radiator Style, Aluminum
- 3 rows of 1" tubes for high performance cooling
- 30% more cooling capacity than any brand of 2 row 1" tube radiator!
- Machined billet aluminum SAE compliant filler neck
- Cooling where you need it - high HP, blown, asphalt / modified
- Typical GM hose connection locations
Key Specs
| Radiator Style | Single Pass |
| Radiator Flow Direction | Crossflow |
| Material Type | Aluminum |
| Inlet Location | Upper driver side |
| Outlet Location | Lower passenger side |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
Race Pro Universal Chevy/GM 3 Row Radiators
- 3 rows of 1" tubes for high performance cooling
- 30% more cooling capacity than any brand of 2 row 1" tube radiator!
- Machined billet aluminum SAE compliant filler neck
- Cooling where you need it - high HP, blown, asphalt / modified
- Typical GM hose connection locations
- Must use high CFM fan if installing electric fan
Charts
Guides & Documents
Specifications
Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | Select Size to see |
| Brand | Speedway Motors |
| Radiator Style | Single Pass |
| Radiator Flow Direction | Crossflow |
| Material Type | Aluminum |
| Inlet Location | Upper driver side |
| Outlet Location | Lower passenger side |
| Row Quantity | 3 |
| Tube Size | 1" |
| Overall Width Range | Select Size to see |
| Overall Width | Select Size to see |
| Overall Height Range | 19.00" to 19.99" |
| Overall Height | 19.56" |
| Overall Thickness | 4.25" |
| Core Width Range | Select Size to see |
| Core Width | Select Size to see |
| Core Height Range | 18.00" to 18.99" |
| Core Height | 18" |
| Core Thickness | 3.375" |
| Finish | Natural |
| Cooling Fan | Not Included |
| Transmission Cooler | No |
| Shroud Included | No |
| Inlet Size | 1.5 |
| Outlet Size | 1.75 |
| Radiator Cap Included | No |
| GENERAL | |
| Weight | 20 lbs. |
| Fan Included | No |
| Sold in Quantity | Each |
