-32%

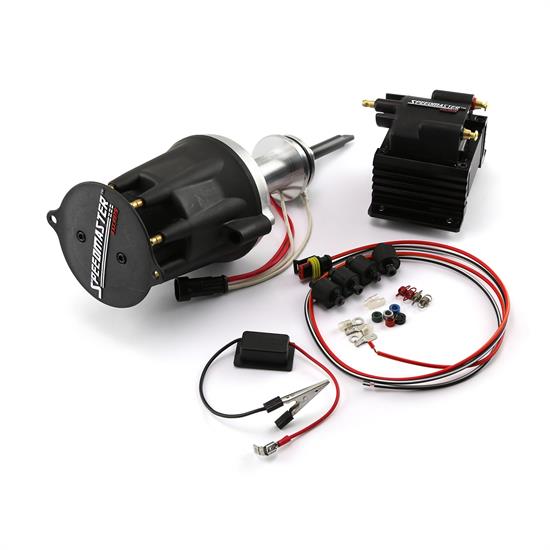

Speedmaster 1-385-006 Distributor Ignition Kit, Mopar 318-360

-32%

Speedmaster 1-385-006 Distributor Ignition Kit, Mopar 318-360
Speedmaster

|

#2561385006

Speedmaster 1-385-006 Distributor Ignition Kit, Mopar 318-360

Discontinued


This item is currently not available

Shop all Speedmaster El Rayo Distributor Ignition Kits

Product Summary

318 Poly, 340, 360, HEI / Male Cap Type, Black

    See more details

    Key Specs

    MFG. Part #1-385-006
    BrandSpeedmaster
    Cap TypeHEI / Male
    Advance TypeMechanical
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Speedmaster 1-385-006 Details

    Speedmaster El Rayo ignition system are designed for the enthusiast that is serious about performance but needs the small cap size due to space considerations when installed. They are precision CNC machined from billet 6061-T6 aluminum to exacting tolerances. The “spark plug” type terminals offer secure wire attachment. Under the brass terminals of the cap and rotor is an extremely accurate magnetic pickup that never requires adjustment along with an easy to adjust mechanical advance mechanism. The heavy duty 1/2” steel shaft is guided in a long sintered bushing as well as a sealed ball bearing at the top to precisely locate the reluctor. This combination yields stable timing and spark delivery at any RPM.

    Speedmaster El Rayo high output coil features a very efficient design where less loss occurs during the transfer of electricity due to the closed core of the coil. Another benefit is that the coils run extremely cool, even at high racing rpm, thanks to the efficient design and huge laminations.

    • Efficient E-core winding design produces more voltage and current
    • 85:1 turns ratio and lower primary resistance produce high voltage output
    • Windings are encased in red epoxy and secured with extruded brackets
    • Spark plug style terminal and threaded brass primary studs
    • Supplied with rubber shock mounts
    • Fits Mopar 318-360

    Charts

    CARB Warning

    For race/ off road use or for use on pre-1966 vehicles.

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
    CARB warning

    Speedmaster 1-385-006 Specifications

    KEY SPECS
    MFG. Part #1-385-006
    BrandSpeedmaster
    Cap TypeHEI / Male
    Advance TypeMechanical
    GENERAL
    External Ignition Box RequiredNo
    Cap Terminal StyleHEI / Male
    Trigger StyleMagnetic
    Hall EffectNo
    Sync SignalNo
    Trigger SensorsSingle
    Distributor Cap ColorBlack
    Housing MaterialAluminum
    Coil IncludedYes
    Sold in QuantityKit
    GTIN Code840136502753

    Questions & Answers

    Be the first to ask a question.

    Fitment

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 318 Poly

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 340 Mopar

    • 340 Mopar

    • 360 Mopar

    • 360 Mopar

    • 340 Mopar

    • 340 Mopar

    • 360 Mopar

    • 360 Mopar

    • 340 Mopar

    • 340 Mopar

    • 360 Mopar

    • 360 Mopar

    • 318 Poly

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 340 Mopar

    • 340 Mopar

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 318 Poly

    • 360 Mopar

    • 360 Mopar

    • 318 Poly

    • 318 Poly

    • 360 Mopar

    • 340 Mopar

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 318 Poly

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 318 Poly

    • 360 Mopar

    • 318 Poly

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 318 Poly

    • 360 Mopar

    • 318 Poly

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 318 Poly

    • 360 Mopar

    • 318 Poly

    • 360 Mopar

    • 340 Mopar

    • 340 Mopar

    • 360 Mopar

    • 360 Mopar

    • 318 Poly

    • 340 Mopar

    • 340 Mopar

    • 340 Mopar

    • 360 Mopar

    • 360 Mopar

    • 318 Poly

    • 340 Mopar

    • 360 Mopar

    • 318 Poly

    • 318 Poly

    • 360 Mopar

    • 360 Mopar

    • 318 Poly

    • 360 Mopar

    • 318 Poly

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 318 Poly

    • 340 Mopar

    • 360 Mopar

    • 340 Mopar

    • 340 Mopar

    • 360 Mopar

    • 360 Mopar

    • 318 Poly

    • 318 Poly

    • 318 Poly

    • 360 Mopar

    • 340 Mopar

    • 340 Mopar

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar

    • 360 Mopar
