Small Block Ford Lake Style Header Kit, 1-5/8 Tube, 3-1/2 Inch Cone
Small Block Ford Lake Style Header Kit, 1-5/8 Tube, 3-1/2 Inch Cone
Speedway Motors

|

#9300564

Small Block Ford Lake Style Header Kit, 1-5/8 Tube, 3-1/2 Inch Cone

  • Kit include flange plates, pre-bent tubing, collector plates, block-off plates, gaskets, bolts and flanges for connection an under-car exhaust system
  • All tubing comes pre-bent
  • Choose 3 1/2" or 4" diameter cone
See More

$345.99

/set

In Stock

$352.47

Save $6.48


Quantity

Need Help? Call to Order

Add to a list

Share

Select an engine to verify Fitment

Select Engine

Product Summary

Universal Fit, Lake Style Header Tube Type, Steel, Raw

  • Kit include flange plates, pre-bent tubing, collector plates, block-off plates, gaskets, bolts and flanges for connection an under-car exhaust system
  • All tubing comes pre-bent
  • Choose 3 1/2" or 4" diameter cone
  • Tapered cones can be trimmed as needed
  • Vintage style street rods are hotter than ever, and nothing gives your fenderless rod an authentic dry lakes competition look like a set of lakester headers

Comes as a Kit

View Kit Components

See more details

Key Specs

MFG. Part #9300564
Header Tube TypeLake Style
Exhaust Port ShapeOval
Flange StyleStandard
Primary Tube Diameter1-5/8"
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 9300564 Details

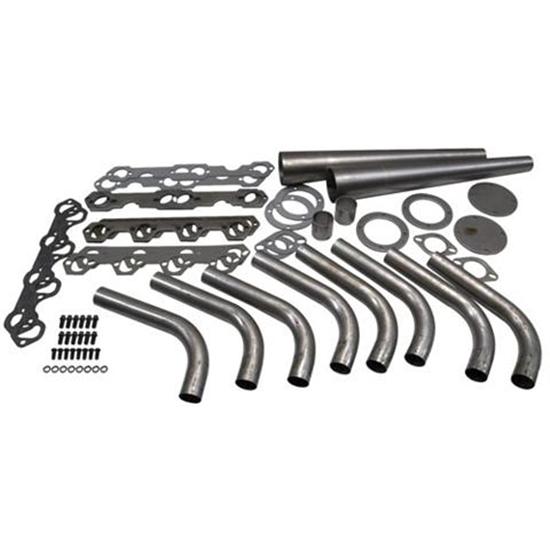

Vintage style street rods are hotter than ever, and nothing gives your fenderless rod an authentic dry lakes competition look like a set of lakester headers. These lake style header kits allow you to build your own weld up headers and tailor them to your vehicle. All tubing comes pre-bent. Tapered cones can be trimmed as needed. Lakester header kit includes parts to complete both sides. Fits Ford 289-351W.

  • 5/16" thick flanges
  • 16 ga. pre-bent tubing
  • Collector flanges w/ block-off plates
  • Flanges for connecting an under-car exhaust system (2" O.D.)
  • Gaskets & bolts
  • Fits Ford 289-351W

Item Details

1-5/8" Tube, 3-1/2" Cone

Charts

Speedway Motors 9300564 Specifications

KEY SPECS
MFG. Part #9300564
BrandSpeedway Motors
Header Tube TypeLake Style
Exhaust Port ShapeOval
Flange StyleStandard
Primary Tube Diameter1-5/8"
Material TypeSteel
ColorNatural
Weld-UpYes
Collector Diameter3-1/2 Inch
FinishRaw
Hardware IncludedYes
Gasket(s) IncludedYes
GENERAL
Sold in QuantitySet
Notes22.50" x 3.5" cones. Includes (8) primary tubes, gaskets, hardware, and flanges.
Flange Thickness0.31"
Port Height1.93"
Port Width1.27"

Ratings & Reviews

4

9 Reviews

Overall Assessment

Customers praised the product for its good quality and excellent value, highlighting the completeness of the kit and its practicality for those with fabrication skills. People noted the heavy tubing was easy enough to weld, despite some challenges fitting round pipe to the oval port. The final result consistently achieved the desired look, adding to the appeal of the vehicles it was installed on. The kit was often compared favorably to competitors, despite a few cases of missing parts. However, some customers found the tubes not long enough for their needs. Nonetheless, users endorsed the product highly, expressing intentions to repurchase.

Write A Review

4

9 reviews

5

4

4

3

3

1

2

0

1

1

Filter by Ratings

I would buy this product again

3.0

4 years ago

Rat a tat tat

Denver CO

Verified

Did not like the confusion that they ship you a SBC kit and Ford flanges to make it work

Would Recommend

I would buy this product again.

5.0

5 years ago

Drilldog

Hayden Lake, Idaho

Verified

Easy to assemble and look excellent. The exact look I was hoping for.

Would Recommend

Ford Lakes style Headers

5.0

6 years ago

Darrun

Washington WV

Verified

I've always wanted to build a set of these headers, so I finally bit the bullet and took the challenge. Tubing is heavy enough to weld with my mig. All the parts fit well, although fitting the round pipe to the oval port was the challenging part. After the first couple tubes I was moving right along. I simply squeezed them in my vise, and as long as I didnt get in a hurry, it was quite easy after awhile. The look is awesome and I can say I did it myself.

Would Recommend

Kit as described

4.0

6 years ago

M Rogers

New Hampshire

Verified

Good kit.

Would Recommend

Customer review image
Customer review image
Customer review image

Good kit

4.0

8 years ago

Dan

Minnesota

Verified

Very complete kit; good value! Of course it challenges fabrication skills but end result looks good on my half-completed '32 Loboy. Some components did have rust but not a problem as bead blasting was done.

Would Recommend

Customer review image

I would buy this product again!

5.0

9 years ago

Mark

New Hampshire

Verified

Looks like a very nice kit! I can't wait to get it all finish welded on the truck!

Would Recommend

Great product

5.0

9 years ago

Josh

Northern California

Verified

All the parts you need and more.

Would Recommend

Tubes not long enough to fit around mode

1.0

12 years ago

Whodoneit31

Seattle

Verified

Fitting round tube into square holes. Not the best. The tubes supplied are not long enough had to tube to the ends of the last two header pipes

Would Not Recommend

Great kit

4.0

16 years ago

Lone Star Rods

Bastrop TX

This is a great kit, all the parts were of good quality, no problems fitting, it is manufactured by Patriot. The only complaint I have is that I was shorted on the header bolts. I ordered a kit for a Ford and this was a Chevy kit that they just added a pair of Ford flanges to, which is fine but they did not think to add extra header bolts, I got 12 and needed 16. If you can weld and fab and want to save some bucks this is a good kit, not for beginners though. I liked how you can fit it exactly to your project.

Would Recommend

Showing 9 of 9 reviews

Questions & Answers

5 Questions • 5 Answers

Do you offer Zoomie headers for the 302 ford?

by Herschel

• 8 years ago

1 answer

View Answer

Do you offer baffles to fit the cones? I'm not going to run any exhaust other than the headers. I am going to use turn outs but i'm wondering if it will be "too" loud. Putting them on a 29 model A four door with a 347 stroker. Also whats the difference between the 3.5" and 4" cones? Just the looks or is there a performance difference?

by 29modelA

• 11 years ago

1 answer

View Answer

Do you have a set of headers for a 351 cleveland?

by

• 14 years ago

1 answer

View Answer

will this fit on 351 windsor and clevland?

by Limestone kid speedshop

• 15 years ago

1 answer

View Answer

what diametter is the tubing?

by cash

• 15 years ago

1 answer

View Answer

5 of 5 questions shown
