Product Summary

302, 327, 350, 400, Tunnel Ram Intake Manifold Type

  • Complete street tunnel ram kit with Edelbrock manifold
  • Includes two 500 cfm manual choke Edelbrock carburetors, gasser style scoop and linkage
  • Not for the faint of heart! (3500-7500 rpm)
  • Note: Only the scoop is polished
  • Overall height from block surface to top of scoop is 19" at highest point including the carb gaskets

Comes as a Kit

Key Specs

MFG. Part #92519901
BrandSpeedway Motors

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

Oh baby, this would look cool on your car! Complete street tunnel ram kit with Edelbrock manifold. Includes two 500 cfm manual choke Edelbrock carburetors, gasser style scoop and linkage. Not for the faint of heart! (3500-7500 rpm)

Designed for 302-327-350-400 c.i.d. small-block Chevy V8s operating below 7500 rpm where low-end torque is not a prime factor. Great for engines with slightly modified heads. Applicable to street machines, street rods, pro street and marine.Will not fit 1987 and later cast iron heads.

Note: Only the scoop is polished.



Charts

Specs

Small Block Tunnel Ram Specs:

  • Overall height from block surface to top of scoop is 19" at highest point including the carb gaskets
  • Height of tunner ram manifold from block surface to carburetor mounting surface is 9" in front and 9-1/2" at rear

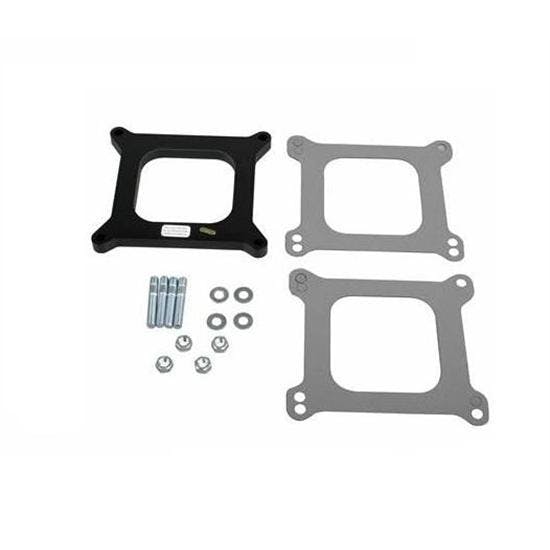

  • Front carburetor uses a 1/2" phenolic spacer
  • Two different lengths of carb studs are included in kit
  • Carburetor height is 3-3/8" from base surface to upper neck base where air cleaner fits
  • Scoop is 6" in height at tallest point
  • Does not include fuel log
  • Suggested fuel line kit is #910-11578
  • Suggested intake manifold gasket #910-10206
  • This intake will NOT accept an HEI distributor
  • 8.875"Carb center to carb center
  • Single carb spacer included to level the carbs for proper air cleaner / scoop fitment.

Specifications

KEY SPECS
MFG. Part #92519901
BrandSpeedway Motors
GENERAL
Intake Manifold TypeTunnel Ram
Carburetor QuantityTwo
Carburetor Barrels4-Barrel
Carburetor Flange Type4-Barrel Square Bore
CFM500 CFM
RPM Range3,500-7,500
Choke TypeManual
Intake Manifold MaterialAluminum
Intake Manifold FinishSatin
Carburetor FinishNatural
Air Cleaner TypeOpen Oval Air Scoop
Air Cleaner FinishPolished
Sold in QuantityKit
