Add to Cart
$1,299.99

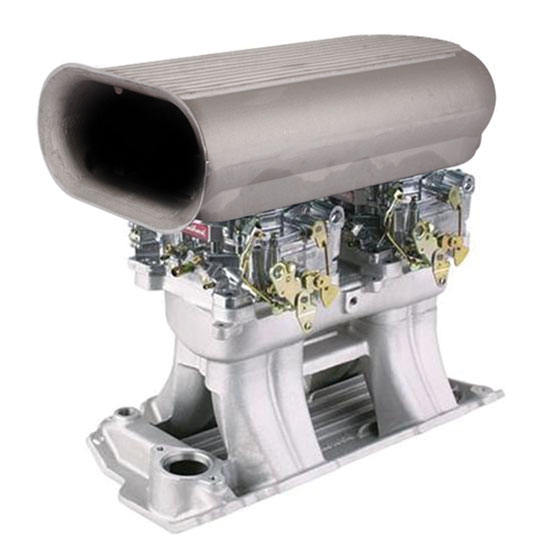

Small Block Chevy Street Tunnel Ram Kit, Plain Scoop
Small Block Chevy Street Tunnel Ram Kit, Plain Scoop

Small Block Chevy Street Tunnel Ram Kit, Plain Scoop

Chevy Small Block V8, Tunnel Ram Intake Manifold Type, Two Carburetor Quantity, 500 CFM CFM

4 Reviews | 4 Answered Questions
On Backorder
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Small Block Chevy Street Tunnel Ram Kit, Plain Scoop
Small Block Chevy Street Tunnel Ram Kit, Plain Scoop
X
Zoomed In Image
We estimate this item will ship on or before June 1st.
Part # 92519903
$1,299.99
kit
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Intake Manifold Type:
Tunnel Ram
Carburetor Quantity:
Two
Carburetor Barrels:
4-Barrel
CFM:
500 CFM
Carburetor Flange Type:
4-Barrel Square Bore
Choke Type:
Manual
Secondary Type:
Mechanical
Fuel Type:
Gasoline
Fuel Inlet Type:
Dual
RPM Range:
3,500-7,500
Air Cleaner Type:
Open Oval Air Scoop
Carburetor Finish:
Natural
Intake Manifold Material:
Aluminum
Intake Manifold Finish:
Satin
Air Cleaner Finish:
Natural
Sold in Quantity:
Kit
MFG. Part #:
92519903

Info

Oh baby, this would look cool on your car! Complete street tunnel ram kit with Edelbrock manifold. Includes two 500 cfm manual choke Edelbrock carburetors, gasser style scoop and linkage. Not for the faint of heart! (3500-7500 rpm)

Designed for 302-327-350-400 c.i.d. small-block Chevy V8s operating below 7500 rpm where low-end torque is not a prime factor. Great for engines with slightly modified heads. Applicable to street machines, street rods, pro street and marine. Will not fit 1987 and later cast iron heads.

Note: Scoop is raw finish cast aluminum.

Notes

Installation Notes: Top has vacuum outlet for power brakes. Manifold will accept forward and sideways mounted carbs. Distance from carb center to carb center: 8.875". H.E.I. ignition will not clear manifold. Port exit dimensions: 1.12" x 2.12".

Specs

Small Block Tunnel Ram Specs:

  • Overall height from block surface to top of scoop is 19" at highest point including the carb gaskets
  • Height of tunnel ram manifold from block surface to carburetor mounting surface is 9" in front and 9-1/2" at rear
  • Front carburetor uses a 1/2" phenolic spacer
  • Two different lengths of carb studs are included in kit
  • Carburetor height is 3-3/8" from base surface to upper neck base where air cleaner fits
  • Scoop is 6" in height at tallest point
  • Does not include fuel log
  • Suggested fuel line kit is #910-11578
  • Suggested intake manifold gasket #910-10206
  • This intake will NOT accept an HEI distributor
  • 8.875"Carb center to carb center
  • Single carb spacer included to level the carbs for proper air cleaner / scoop fitment.
Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Edelbrock 7110 S/B Chevy Street Tunnel Ram Intake Manifold
    Qty x 1
  • Gasser Style Competition Air Scoop for Blown/Tunnel Ram Engine-Plain
    Qty x 1
  • Double End Carburetor Linkage, 9 Inches Long
    Qty x 1
  • Throttle Ball Assortment
    Qty x 2
  • Carburetor Stud Kit, 1-3/8 Inch
    Qty x 1
  • Trans-Dapt 2180 Phenolic Open Carburetor Spacer, 1/2 Inch
    Qty x 1
  • Speedway Aluminum Carburetor Linkage Rod Bushings
    Qty x 2
  • Edelbrock 1804 Dual Quad 4 Barrel Carburetor, 500 CFM, Manual Choke
    Qty x 2
