Small Block Chevy Low Mount Alternator Bracket, Chrome
Chevy Small Block V8, Steel, Chrome, Is Hardware Included
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

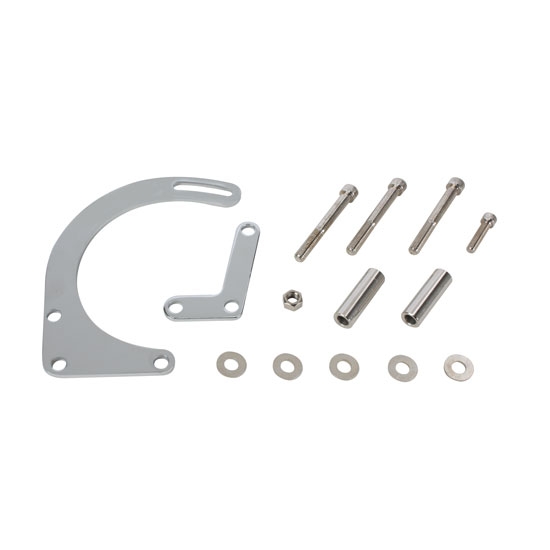

These low mount alternator brackets mount common Delco alternators below the frost plug at the left front corner (driver's side) of your small block Chevy using bolt holes next to the timing cover. They are ideal for custom builds, street rods, and tube chassis cars that do not have power steering and work with short ('55-'68 S/B Chevy) water pumps. These brackets will support a standard full-size GM alternator which is sold separately. Includes bracket, bolts and spacers.
- Mounts common Delco alternators below frost plug
- Left front corner (driver's side) of engine
- Bolt holes next to the timing cover
- Includes bracket, bolts and spacers
- small block Chevy
- 1955-1968 short water pumps
Note: Watch for steering box clearance!
- Mounts alternator down beside oil pan, using early front motor mount holes.
- This bracket will NOT work with Speedway's T-bucket kits because the frames are too narrow.
- Not designed for use with standard (stock) engine crossmembers - will require modification to allow clearance.
NotesMounts so the outside edge of the alternator is 6.4"-7.3" from the outside edge of mounting piece. Upper LH block mount is 2-15/16" from alternator pivot hole (center to center).
