Product Summary

  • Seal was originally developed to contain lubrication inside the fuel pump cavity in order to lubricate the pump arm
  • Also allows the pump to deliver cooler fuel to the carburetor
  • It uses a molded neoprene seal bonded to an alloy plate to seal around the pump arm
  • Has a special insulating gasket and sleeved, insulated bolts also cut down on the engine heat transferred to the pump to further reduce fuel temperature
  • Made of lightweight aluminum with a red anodized finish for added corrosion resistance
See more details

Key Specs

MFG. Part #
Material TypeAluminum
FinishAnodized
ColorRed
Hardware IncludedYes
See more specs

Need To Know

Quick and Easy Returns

Return Policy

Details

This seal was originally developed to contain lubrication inside the fuel pump cavity in order to lubricate the pump arm, but it also allows the pump to deliver cooler fuel to the carburetor. Uses a molded neoprene seal bonded to an alloy plate to seal around the pump arm. A special insulating gasket and sleeved, insulated bolts also cut down on the engine heat transferred to the pump to further reduce fuel temperature.

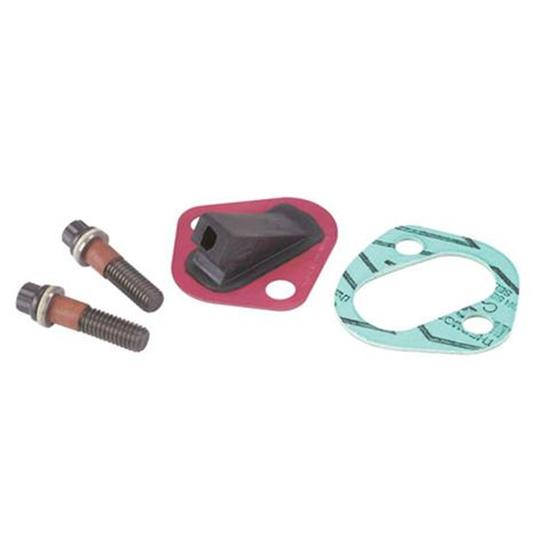

  • 91011853-Hol  (shown)
    • Fits old style Holley/Edelbrock pumps w/ 1/2" NPT ports on opposite end
  • 91011853-Car
    • Fits new style Holley/Carter fuel pumps

Installation note: The gasket will go on first at the block, followed by the plate, then the seal and ending with the fuel pump.

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

Specifications

KEY SPECS
MFG. Part #
BrandSpeedway Motors
Material TypeAluminum
FinishAnodized
ColorRed
Hardware IncludedYes
GENERAL
Sold in QuantityEach

Ratings & Reviews

4.5

2 Reviews

Overall Assessment

Customers appreciate the product for its high-quality material and practicality. Main features, such as preventing oil leaks from engines, are highly praised. Users have found the product to be exceptionally efficient and reliable. The product stands out in comparison to competitors due to its superior performance.

4.5

2 reviews

5

1

4

1

3

0

2

0

1

0

Filter by Ratings

Yes

4.0

2 years ago

Don

Ohio

Verified

In an engine

Would Recommend

No more leaks

5.0

10 years ago

Bennie

Bedford, IN

Verified

This kit really helped stop the oil leaking from the vent hole in the side of my pump.

Would Recommend

Showing 2 of 2 reviews

Questions & Answers

1 Question1 Answer

I have Speedway racing pump # 5791002 . Which version of this seal will fit? Hol or Car?

by Dan

9 years ago

1 answer

1 of 1 questions shown
