#9101456
Small Block Chevy Elite Series Valve Covers w/Gaskets & Breathers
1 Review
|
Ask a Question
- To be used with Small Block Chevy engines
- Comes detailed with Allen hex heads
- They have raised Fins w/Black Mat Background
See More
$214.99
kit
In Stock
$218.92
Save $3.93
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Chevy Small Block V8, Tall Valve Cover Height, Polished
- To be used with Small Block Chevy engines
- Comes detailed with Allen hex heads
- They have raised Fins w/Black Mat Background
- Reusable neoprene rubber with stainless steel core to prevent the gasket from pushing out when torqued down
- Breathers with rubber grommet
Comes as a Kit
View Kit Components
See more details
Key Specs
| MFG. Part # | 9101456 |
| Valve Cover Height | Tall |
| Valve Cover Mounting Style | Perimeter Bolt |
| Material Type | Cast Aluminum |
| Finish | Polished |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 9101456 Details
Speedway Motors 9101456 Details
Valve Covers

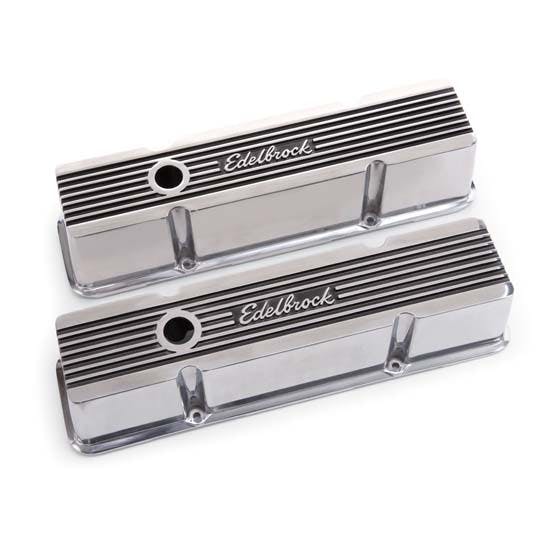

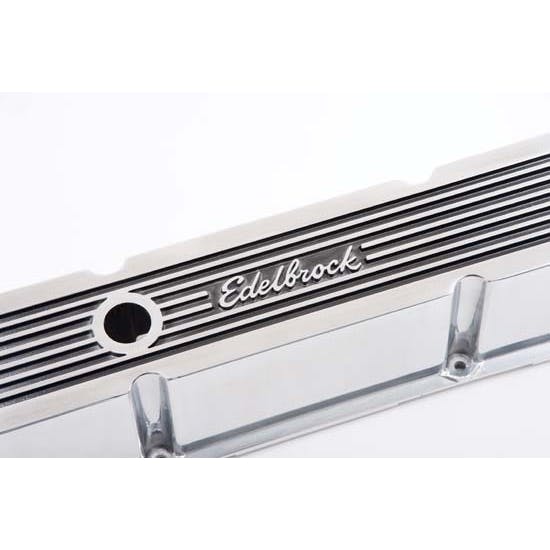

Edelbrock Elite II Series Valve Covers feature an extra tall design with a cast aluminum construction and polished finish. They are for use with Small Block Chevy engines.
- Polished Finish
- Raised Fins w/Black Mat Background
- Detailed With Allen Hex Heads
- 2 Piece Look; 1 Piece Construction
- Clears Most Roller Rockers
- Clears Valvetrain Components
- Heavy Gauge
Gaskets
These premium quality Small Block Chevy (SBC) valve cover gaskets are made with a stainless steel frame sandwiched between durometer-tested neoprene rubber. This eliminates leakage caused by internal pressure fluctuations. Steel core valve cover gaskets won't tear or collapse.
- Steel core improves seal
- Reusable
- .175" thick
- Fits 1960-86 small block Chevy style heads (4 perimeter bolts)
- Package of two gaskets
Breathers (2)
Each chrome push-in style oil breather cap fits factory and after market valve covers with a 1-1/4" diameter hole, with rubber grommet.
Application
Chevy 262-400 V8 1959-86, Tall Profile (A,B)
(A) Some tall profile valve covers will interfere with A/C compressors, EGR valves and power brake boosters.
(B) Will not fit '86 & later Vette aluminum heads or 1987 & later Chevy cast iron heads. See centerbolt valve covers.
Charts
Speedway Motors 9101456 Specifications
Speedway Motors 9101456 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 9101456 |
| Brand | Speedway Motors |
| Valve Cover Height | Tall |
| Valve Cover Mounting Style | Perimeter Bolt |
| Material Type | Cast Aluminum |
| Finish | Polished |
| GENERAL | |
| Valve Cover Top Style | Edelbrock Logo |
| Baffled | Yes |
| Breathers Included | Yes |
| Gaskets Included | Yes |
| Grommets Included | Yes |
| Hardware Included | Yes |
| Sold in Quantity | Kit |
| Notes | Valve cover height is 4.40 in. Valve cover height could cause interference with some AC compressors, EGR valves, and power brake boosters. |
