Add to Cart
$79.99

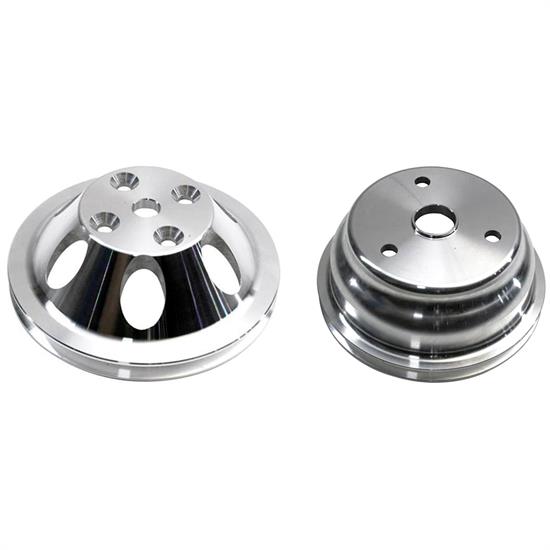

Small Block Chevy Aluminum Single Groove Pulley Set, Long Pump
Small Block Chevy Aluminum Single Groove Pulley Set, Long Pump

Small Block Chevy Aluminum Single Groove Pulley Set, Long Pump

Chevy Small Block V8, 6.60" Overall Diameter, V-Belt Belt Type, 1 Groove Count, Aluminum

0 Reviews | 0 Answered Questions
On Backorder
Can Ship FREE
Select your vehicle to verify fitment.
Select Vehicle
Small Block Chevy Aluminum Single Groove Pulley Set, Long Pump
Small Block Chevy Aluminum Single Groove Pulley Set, Long Pump
Small Block Chevy Aluminum Single Groove Pulley Set, Long Pump
Small Block Chevy Aluminum Single Groove Pulley Set, Long Pump
Small Block Chevy Aluminum Single Groove Pulley Set, Long Pump
Small Block Chevy Aluminum Single Groove Pulley Set, Long Pump
Small Block Chevy Aluminum Single Groove Pulley Set, Long Pump
X
Small Block Chevy Aluminum Single Groove Pulley Set, Long Pump
Small Block Chevy Aluminum Single Groove Pulley Set, Long Pump
Small Block Chevy Aluminum Single Groove Pulley Set, Long Pump
Small Block Chevy Aluminum Single Groove Pulley Set, Long Pump
Small Block Chevy Aluminum Single Groove Pulley Set, Long Pump
Zoomed In Image
Part # 9108693
$79.99
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • Precision machined cast aluminum construction
  • Lightweight and strong
  • For '69-'85 Small Block Chevy long style water pumps
  • Single groove for V-belt
  • Diameter is 6-5/8"

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Overall Diameter:
6.60"
Belt Type:
V-Belt
Groove Count:
1
Material Type:
Aluminum
Finish:
Natural
Sold in Quantity:
Kit
Water Pump Style:
Long

Info

Pair up a new set of pulleys sure to match for your Small Block Chevy equipped with a long-style water pump.  These convienent combos feature cast aluminum construction, for use on 1969-1985 SBC engines.

  • Precision machined cast aluminum construction
  • Lightweight and strong
  • For '69-'85 Small Block Chevy long style water pumps
  • Single groove for V-belt

Kit Includes:

  • (1) SBC Aluminum Long Water Pump Pulley - Single Groove
  • (1) SBC Aluminum Long Pump Crank Pulley - Single Groove



SBC Aluminum Long Water Pump Pulley - Single Groove

  • From inside of pulley at fan hub to rear edge of pulley is 2"
  • From rear edge of pulley to center of V-belt groove is 5/16"
  • Center hole fits a 5/8" shaft (can be drilled out to 3/4" if needed)
  • Diameter is 6-5/8"
  • Mounted Length: 1.96"
  • Shaft Diameter: .63"
  • Bolt Hole Pattern: 4 on 2.15"
  • Belt Width: .42"

Note:  When using in conjunction with an electric fan assembly, be sure to consider the pulley installation screw kit # 910-15440.



SBC Aluminum Long Pump Crank Pulley - Single Groove

  • From balancer to outer edge of pulley is 2-3/4"
  • From outer edge to center of V-belt groove is 5/16"
  • Diameter is 6-5/8"
  • Mounted Length: 2.76"
  • Bolt Hole Pattern: 3 on 2.77"
  • Belt Width: .42"
  • Inside Diameter: 1.09"



Notes:

  1. It may be necessary to shim either or both of the pulleys to achieve perfect belt alignment. There are variances between manufacturers of both water pumps and pulleys.
  2. Water Pump Pulley: Mounted length is from the face of the water pump pulley mount towards the front of the engine.
  3. Crank Pulley: Mounted length is from the face of the harmonic balancer towards the front of the vehicle.

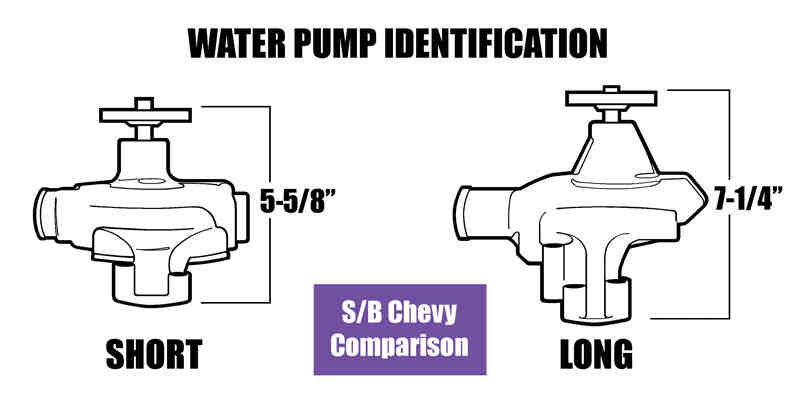

Get the correct pulleys for your application by learning which water pump you have as explained in our tech article. SBC - Short vs Long Water Pump.

Charts

Water Pump ID Chart (GIF)

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • 1969-1985 Small Block Chevy Aluminum Single Upper Pulley, Long Pump
    Qty x 1
  • 1969-1985 Small Block Chevy Aluminum Single Lower Pulley, Long Pump
    Qty x 1
