Product Summary

265, 267, 283, 302, 305, 307, 327, 350, 2 Groove Count

  • Precision machined cast aluminum construction
  • Lightweight and strong
  • For '69-'85 Small Block Chevy long style water pumps
  • Double groove pulleys for 2 V-belts
  • Diameter is 6-5/8"

Comes as a Kit

Key Specs

BrandSpeedway Motors
Water Pump StyleLong

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

Pair up a new set of pulleys sure to match for your Small Block Chevy equipped with a long-style water pump.  These convienent combos feature cast aluminum construction, for use on 1969-1985 SBC engines.

  • Precision machined cast aluminum construction
  • Lightweight and strong
  • For '69-'85 Small Block Chevy long style water pumps
  • Double groove pulleys for 2 V-belts

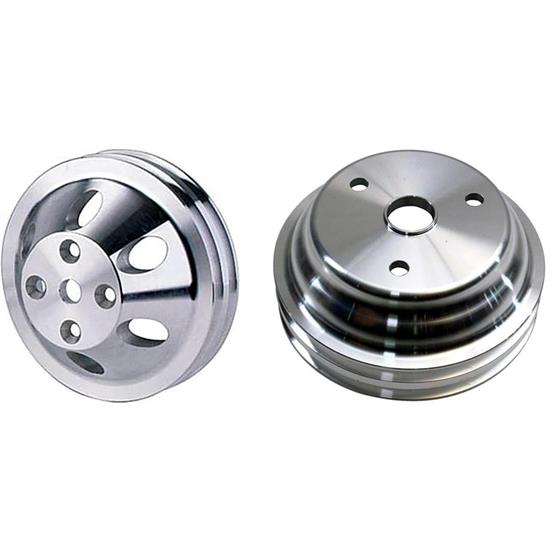

Kit Includes:

  • (1) SBC Aluminum Long Water Pump Pulley - Double Groove
  • (1) SBC Aluminum Long Pump Crank Pulley - Double Groove



SBC Aluminum Long Water Pump Pulley - Double Groove

  • Center hole fits a 5/8" shaft (can be drilled out to 3/4" if needed)
  • Hub surface to first groove center: 2.415"
  • Center-to-center of grooves:  11/16"
  • Diameter is 6-5/8"
  • Mounted Length: 2.69"
  • Shaft Diameter: .63"
  • Bolt Hole Pattern: 4 on 2.13"
  • Belt Width: .42"



SBC Aluminum Long Pump Crank Pulley - Double Groove

  • Diameter is 6-5/8"
  • Mounted Length: 2.69"
  • Bolt Hole Pattern: 3 on 2.75"
  • Belt Width: .41"
  • Inside Diameter: 1.10"



Notes:

  1. It may be necessary to shim either or both of the pulleys to achieve perfect belt alignment. There are variances between manufacturers of both water pumps and pulleys.
  2. Water Pump Pulley: Mounted length is from the face of the water pump pulley mount towards the front of the engine.
  3. Crank Pulley: Mounted length is from the face of the harmonic balancer towards the front of the vehicle.

Get the correct pulleys for your application by learning which water pump you have as explained in our tech article. SBC - Short vs Long Water Pump.

Charts

Specifications

KEY SPECS
BrandSpeedway Motors
Water Pump StyleLong
GENERAL
Overall Diameter6.60"
Belt TypeV-Belt
Groove Count2
Material TypeAluminum
FinishNatural
Sold in QuantityKit
