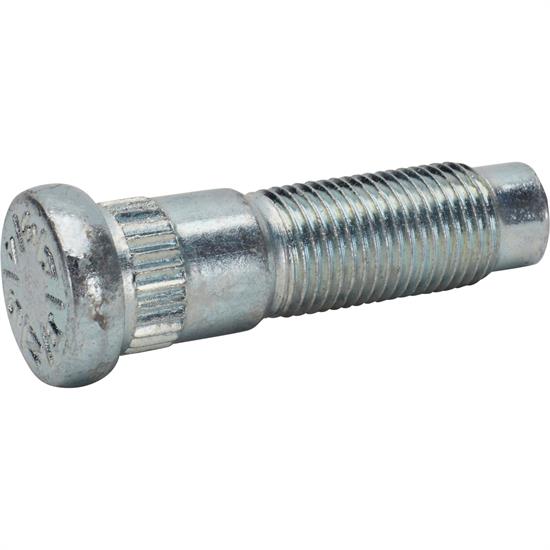

Single 1/2 Inch Fine Wheel Stud

1/2"20 threaded steel wheel stud, 1.875" overall length, 0.570 Knurl diameter.

• 0.570" knurl dia. for recommended standard hole size 0.554" to 0.564"

Recommended Press Fit for press-in wheel stud

• Steel Hub          0.006"-0.016"
• Aluminum Hub   0.010"-0.016"

Tech Tip:  If nearest standard drill bit is too small, you will need to use an appropriately sized reamer to enlarge the drilled hole until it is within the tolerance for the desired press fit.
