Schoenfeld Suzuki GSXR Headers, 1-3/8 Inch Primary w/Muffler

1 Question

4-2-1 style collector with 1-1/4" insert
1-3/8" tube diameter
1-3/4" collector

$459.90

In Stock

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

4 to 1 Header Tube Type, Standard Flange Style, Steel

4-2-1 style collector with 1-1/4" insert
1-3/8" tube diameter
1-3/4" collector
Muffler length - 13"
Outlet Diameter- 2-1/4"

Comes as a Kit

View Kit Components

See more details

Key Specs

Header Tube Type	4 to 1
Flange Style	Standard
Primary Tube Diameter	1-3/8"
Material Type	Steel
Color	Black

See more specs

Need To Know

This Product Will Ship Free

Need help?

Quick and Easy Returns

Details

Exhaust Header

These Schoenfeld Suzuki GSXR 600 headers are designed for micro/mini sprint car racing. They feature 1-3/8" tube diameter with 1-3/4" collector and smooth mandrel bends with rotational firing into a 4 into 2 into 1 racing merge collector with a 1-1/4" insert.

4-2-1 style collector with 1-1/4" insert
1-3/8" tube diameter
1-3/4" collector

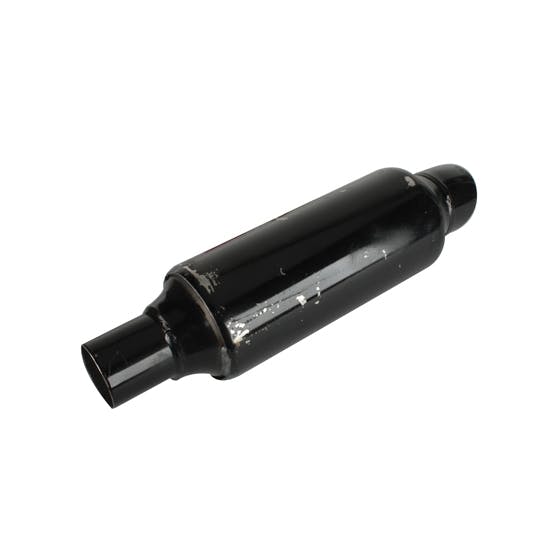

Muffler

Schoenfeld introduces a performance exhaust muffler designed to work with Schoenfeld Micro Headers.

Length-13"
Inlet Diameter- 1-3/4"
Outlet Diameter- 2-1/4"
Body Diameter- 3-1/2"

Guides & Documents

Choosing the Right Headers

Create the Perfect Exhaust Note with Performance Mufflers

Specifications

KEY SPECS
Brand	Schoenfeld
Header Tube Type	4 to 1
Flange Style	Standard
Primary Tube Diameter	1-3/8"
Material Type	Steel
Color	Black
Weld-Up	No
Collector Diameter	1-3/4 Inch
Finish	Painted
Hardware Included	Yes
Gasket(s) Included	No

GENERAL
Sold in Quantity	Kit
