Schoenfeld 1186 IMCA Modified Long Style Headers

#9171186

Schoenfeld 1186 IMCA Modified Long Style Headers

Name: Schoenfeld 1186 IMCA Modified Long Style Headers
Brand: Schoenfeld
SKU: 9171186
Price: 319.95 USD
Availability: InStock
Rating: 5 (2 reviews)

2 Reviews

6 Questions

Headers are specifically made to fit the Chevy Small Block V8 engines
Full steel construction with a black painted finish
Long style headers have a 1-3/4" tube that meet at a 3-1/2" collector

$319.95

/pair

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Long Tube Header Tube Type, D Port Flange Style, Steel

Headers are specifically made to fit the Chevy Small Block V8 engines
Full steel construction with a black painted finish
Long style headers have a 1-3/4" tube that meet at a 3-1/2" collector
Features a D-port style flange that is 1/4" thick
Port is 1.69" high and has a width measuring 1.5"

See more details

Key Specs

MFG. Part #	1186
Header Tube Type	Long Tube
Flange Style	D Port
Primary Tube Diameter	1-3/4"
Material Type	Steel

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Ineligible for Return

Contains items that cannot be returned

Schoenfeld 1186 Details

Garage Sale Product

Garage Sale Clearance!

Long style headers for Dirtworks and most others (does not fit D&M). 1-3/4" tube with 3-1/2" collector. Not a step design. Not adjustable.

Item Details

Painted black, not coated. Not step design

NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS

Charts

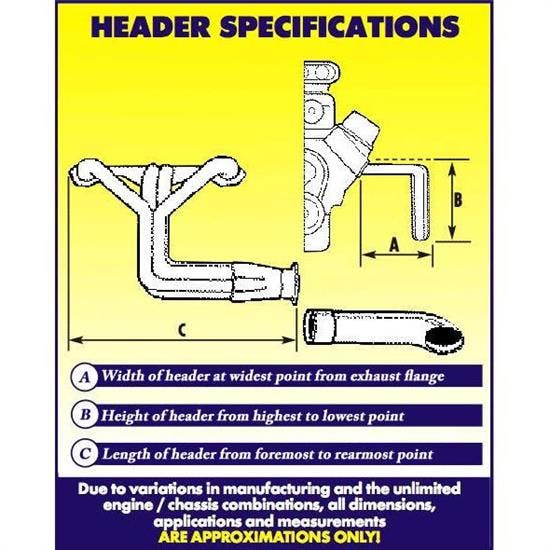

Header Dimension Chart (JPG)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Schoenfeld 1186 Specifications

KEY SPECS
MFG. Part #	1186
Brand	Schoenfeld
Header Tube Type	Long Tube
Flange Style	D Port
Primary Tube Diameter	1-3/4"
Material Type	Steel
Color	Black
Collector Diameter	3-1/2 Inch
Finish	Painted
Hardware Included	Yes
Gasket(s) Included	Yes

GENERAL
Sold in Quantity	Pair
Collector Length	7.75"
Flange Thickness	0.25"
Port Height	1.69"
Port Width	1.5"
Drivers Side Dimension A	22.85"
Drivers Side Dimension B	4.25"
Drivers Side Dimension C	19"
Passenger Side Dimension A	14.05"
Passenger Side Dimension B	2.5"
Passenger Side Dimension C	29.75"

Ratings & Reviews

2 Reviews

Overall Assessment

Customers appreciate the product for its excellent quality and practicality. They love the headers, indicating high material quality. Its great fit for modifications highlights its practicality. Users also confirmed they would purchase again, reflecting high overall satisfaction.

Write A Review

2 reviews

Filter by Ratings

Sort Reviews

happy with shock and fast shipping

5.0

8 years ago

anthony

lucasville ohio

Verified

love the headers

Would Recommend

i would buy again

5.0

9 years ago

dave

dublin va

Verified

fit my modified great!!

Would Recommend

Showing 2 of 2 reviews

Questions & Answers

6 Questions • 6 Answers

Sort Questions

Will these headers fit a 2009 Larry Shaw modified chassis?

by 07 Modified

• 3 years ago

1 answer

View Answer

Will these work on 602 crate in a 2012 harris chassis?

by Newbie

• 4 years ago

1 answer

View Answer

Will these fit a Chevy G body. (1979 Malibu)

by Hubb

• 6 years ago

1 answer

View Answer

Do you know if these headers will work on a lightning chassis

by Hurricane

• 10 years ago

1 answer

View Answer

HI, I SEE HERE THAT THESE DO NOT FIT D&M MODIFIEDS. DO YOU BY ANY CHANCE KNOW WHAT MID LENGTH OR LONG STYLE HEADERS WILL FIT A D&M?

by lj

• 10 years ago

1 answer

View Answer

How long are the primary tubes(average)on these 1186 Schoenfeld headers? I'm looking for an average tube length of 31".

by RACERJOE46

• 14 years ago

1 answer

View Answer

6 of 6 questions shown

Fitment

1968 Chevy Bel Air

Gen 1 L14 Small Block Chevy

1970-1975 Chevy Bel Air

2-Piece Rear Main Chevy 400

1968 Chevy Biscayne

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Biscayne

2-Piece Rear Main Chevy 400

1969-1973 Chevy Blazer

Gen 1 L14 Small Block Chevy

1969 Chevy Brookwood

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Brookwood

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1968-1973 Chevy C10

Gen 1 L14 Small Block Chevy

1976-1980 Chevy C10

2-Piece Rear Main Chevy 400

1968-1973 Chevy C10 Suburban

Gen 1 L14 Small Block Chevy

1968-1973 Chevy C20

Gen 1 L14 Small Block Chevy

1976-1980 Chevy C20

2-Piece Rear Main Chevy 400

1968-1973 Chevy C20 Suburban

Gen 1 L14 Small Block Chevy

1976-1980 Chevy C20 Suburban

2-Piece Rear Main Chevy 400

1968-1973 Chevy C30

Gen 1 L14 Small Block Chevy

1976-1979 Chevy C30

2-Piece Rear Main Chevy 400

1969-1973 Chevy Camaro

Gen 1 L14 Small Block Chevy

1968-1969 Chevy Caprice

Gen 1 L14 Small Block Chevy

1970-1973 Chevy Caprice

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1974-1976 Chevy Caprice

2-Piece Rear Main Chevy 400

1968-1969 Chevy Chevelle

Gen 1 L14 Small Block Chevy

1970-1973 Chevy Chevelle

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1968 Chevy Chevy II

Gen 1 L14 Small Block Chevy

1968-1969 Chevy El Camino

Gen 1 L14 Small Block Chevy

1970-1973 Chevy El Camino

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1974-1976 Chevy El Camino

2-Piece Rear Main Chevy 400

1969 Chevy Estate

Gen 1 L14 Small Block Chevy

1970 Chevy Estate

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1976 Chevy G10

2-Piece Rear Main Chevy 400

1968-1973 Chevy G10 Van

Gen 1 L14 Small Block Chevy

1975-1980 Chevy G20

2-Piece Rear Main Chevy 400

1968-1973 Chevy G20 Van

Gen 1 L14 Small Block Chevy

1975-1980 Chevy G30

2-Piece Rear Main Chevy 400

1968-1969 Chevy Impala

Gen 1 L14 Small Block Chevy

1970-1973 Chevy Impala

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1974-1976 Chevy Impala

2-Piece Rear Main Chevy 400

1968-1973 Chevy K10

Gen 1 L14 Small Block Chevy

1975-1980 Chevy K10

2-Piece Rear Main Chevy 400

1968-1973 Chevy K10 Suburban

Gen 1 L14 Small Block Chevy

1975-1979 Chevy K10 Suburban

2-Piece Rear Main Chevy 400

1968-1973 Chevy K20

Gen 1 L14 Small Block Chevy

1975-1980 Chevy K20

2-Piece Rear Main Chevy 400

1968-1973 Chevy K20 Suburban

Gen 1 L14 Small Block Chevy

1975-1980 Chevy K20 Suburban

2-Piece Rear Main Chevy 400

1968-1973 Chevy K30

Gen 1 L14 Small Block Chevy

1977-1980 Chevy K30

2-Piece Rear Main Chevy 400

1975-1979 Chevy K5 Blazer

2-Piece Rear Main Chevy 400

1969 Chevy Kingswood

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Kingswood

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1973 Chevy Laguna

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1974-1976 Chevy Laguna

2-Piece Rear Main Chevy 400

1973 Chevy Malibu

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1974-1976 Chevy Malibu

2-Piece Rear Main Chevy 400

1970-1976 Chevy Monte Carlo

2-Piece Rear Main Chevy 400

1969-1973 Chevy Nova

Gen 1 L14 Small Block Chevy

1976 Chevy P30

2-Piece Rear Main Chevy 400

1968-1969 Chevy P30 Van

Gen 1 L14 Small Block Chevy

1973 Chevy P30 Van

Gen 1 L14 Small Block Chevy

1969 Chevy Townsman

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Townsman

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1968-1972 GMC C25/C2500 Pickup

Gen 1 L14 Small Block Chevy

1968-1972 GMC C25/C2500 Suburban

Gen 1 L14 Small Block Chevy

1968-1972 GMC C35/C3500 Pickup

Gen 1 L14 Small Block Chevy

1973-1974 GMC C35/C3500 Pickup

2-Piece Rear Main Chevy 400

1975-1978 GMC K15

2-Piece Rear Main Chevy 400

1975-1978 GMC K15 Suburban

2-Piece Rear Main Chevy 400

1967-1974 GMC K15/K1500 Pickup

2-Piece Rear Main Chevy 400

1967-1974 GMC K15/K1500 Suburban

2-Piece Rear Main Chevy 400

1979-1980 GMC K1500 Suburban

2-Piece Rear Main Chevy 400

1975-1978 GMC K25

2-Piece Rear Main Chevy 400

1975-1978 GMC K25 Suburban

2-Piece Rear Main Chevy 400

1968-1972 GMC K25/K2500 Pickup

Gen 1 L14 Small Block Chevy

1973-1974 GMC K25/K2500 Pickup

2-Piece Rear Main Chevy 400

1968-1972 GMC K25/K2500 Suburban

Gen 1 L14 Small Block Chevy

1973-1974 GMC K25/K2500 Suburban

2-Piece Rear Main Chevy 400

1979-1986 GMC K2500 Suburban

2-Piece Rear Main Chevy 400

1968-1972 GMC K35/K3500 Pickup

Gen 1 L14 Small Block Chevy

1973-1974 GMC K35/K3500 Pickup

2-Piece Rear Main Chevy 400

1973-1977 GMC Sprint

2-Piece Rear Main Chevy 400

1967 GMC Suburban

Gen 1 L14 Small Block Chevy
