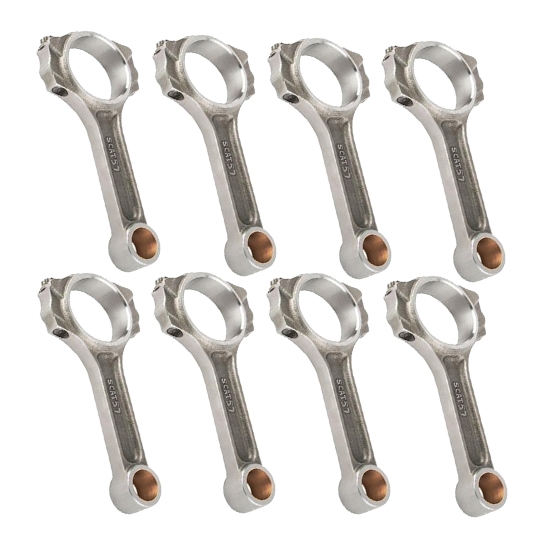

Scat 25700716 Small Block Chevy 4340 I-Beam Rods, 5.7 Inch, Bushed Pin
Scat 25700716 Small Block Chevy 4340 I-Beam Rods, 5.7 Inch, Bushed Pin
Chevy Small Block V8, I-Beam Connecting Rod Type, Forged 4340 Steel Connecting Rod Material
On Backorder
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
Scat 25700716 Small Block Chevy 4340 I-Beam Rods, 5.7 Inch, Bushed Pin
X
Part # 91015230
$349.99
$359.99
set
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
- Has polished beams to eliminate stress risers
- Has a I-beam design that is made from forged 4340 steel
- Features a one-rib cap design for added strength and bearing support
- There are special hollow dowels and the profile is clearance for stroker applications
- Connecting rob bolts are made from 8740 chromoly steel and have a 180,000 psi strength
Details
MFG. Part #:
2-ICR5700-7/16
Connecting Rod Type:
I-Beam
Connecting Rod Material:
Forged 4340 Steel
Connecting Rod Length:
5.700"
Wrist Pin Style:
Floating
Wrist Pin Diameter:
0.927"
Rod Journal Diameter:
2.100"
Connecting Rod Bolt Diameter:
7/16"
Sold in Quantity:
Set
Rod Crank End Width:
0.940"
GTIN Code:
846091011040
Connecting Rod Finish:
Shot-peened and tumbled
Clearanced for Stroker:
Yes
Cap Retention Style:
Cap Screw
Connecting Rod Bolt Brand:
ARP
Connecting Rod Bolt Material:
8740 Chromoly Steel
Fastener Yield Strength:
180,000 psi
Connecting Rod Bolt Head Style:
12-Point
Big End Bore Diameter:
2.225"
Weight Matched Set:
Yes
New or Remanufactured:
New
Magnafluxed:
No
Info
These Scat Pro Comp 4340 forged bushed I-beam connecting rods come with huge 7/16" ARP cap screw bolts, which greatly increase strength and horsepower capabilities. In fact, Pro Comp series rods include some strength adders found in H-beam designs:
- One-rib cap design for added strength and bearing support
- Polished beams to eliminate stress risers
- Special hollow dowels
- Profile clearanced for stroker applications
Item Details
590 Grams*(Weight is approximate due to manufacturing variances)
Specs
- Bushed
- 5.700" rod length
- 2.100" crankpin
- .927" wristpin
- .940" big end width
- 590 grams
- 64 ft/lbs rod bolt torque
Important Messages:
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
