Product Summary

302, 347, H-Beam Connecting Rod Type

  • Specifically designed for Ford 302 C.I. engine applications
  • Features bronze bushings and high strength ARP 8740 cap screws
  • Connecting rods are made from forged 4340 steel
  • They have a 2.123" crankpin and a .927" wristpin
  • Connecting rod bolts are manufactured by ARP from 8740 chromoly steel

Key Specs

MFG. Part #2-302-5400-2123-927
Connecting Rod TypeH-Beam
Connecting Rod MaterialForged 4340 Steel
Connecting Rod Length5.400"
Wrist Pin StyleFloating

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Scat 2-302-5400-2123-927 Details

High strength 4340 H-beam rod for use in 347 cubic inch stroker motors. Features bronze bushings and high strenth ARP 8740 cap screws.

  • 2.123" crankpin
  • .927" wristpin
  • .830" big end width

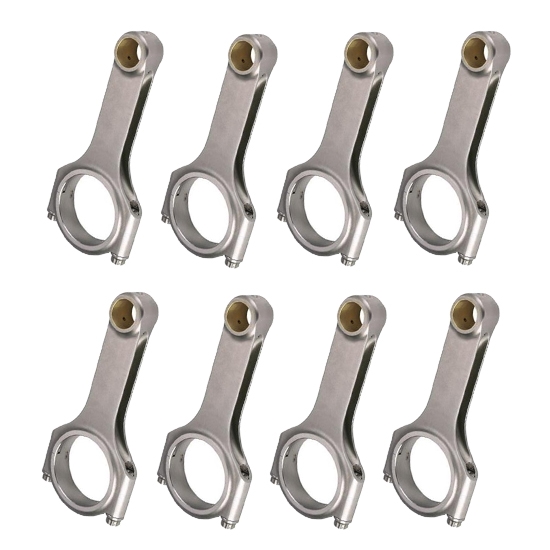

Set of 8 rods.

Item Details

Ford bearing, .927" wristpin

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

Scat 2-302-5400-2123-927 Specifications

KEY SPECS
MFG. Part #2-302-5400-2123-927
BrandScat
Connecting Rod TypeH-Beam
Connecting Rod MaterialForged 4340 Steel
Connecting Rod Length5.400"
Wrist Pin StyleFloating
GENERAL
Speedway Motors Catalog Part #910-15339
Wrist Pin Diameter0.927"
Rod Journal Diameter2.123"
Connecting Rod Bolt Diameter7/16"
Sold in QuantitySet
Rod Crank End Width0.830"
GTIN Code846091010128
Connecting Rod FinishShot-peened and tumbled
Clearanced for StrokerYes
Cap Retention StyleCap Screw
Connecting Rod Bolt BrandARP
Connecting Rod Bolt Material8740 Chromoly Steel
Fastener Yield Strength180,000 psi
Connecting Rod Bolt Head Style12-Point
Big End Bore Diameter2.123"
Weight Matched SetYes
New or RemanufacturedNew
MagnafluxedNo
