SBC Pulley Set, 2-Groove Up/3-Groove Low/Double-PS, Short Pump
SBC Pulley Set, 2-Groove Up/3-Groove Low/Double-PS, Short Pump

SBC Pulley Set, 2-Groove Up/3-Groove Low/Double-PS, Short Pump

Chevy Small Block V8, V-Belt Belt Type, 2-3 Groove Count, Steel, Painted, Black

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
SBC Pulley Set, 2-Groove Up/3-Groove Low/Double-PS, Short Pump
SBC Pulley Set, 2-Groove Up/3-Groove Low/Double-PS, Short Pump
SBC Pulley Set, 2-Groove Up/3-Groove Low/Double-PS, Short Pump
SBC Pulley Set, 2-Groove Up/3-Groove Low/Double-PS, Short Pump
SBC Pulley Set, 2-Groove Up/3-Groove Low/Double-PS, Short Pump
SBC Pulley Set, 2-Groove Up/3-Groove Low/Double-PS, Short Pump
SBC Pulley Set, 2-Groove Up/3-Groove Low/Double-PS, Short Pump
SBC Pulley Set, 2-Groove Up/3-Groove Low/Double-PS, Short Pump
SBC Pulley Set, 2-Groove Up/3-Groove Low/Double-PS, Short Pump
SBC Pulley Set, 2-Groove Up/3-Groove Low/Double-PS, Short Pump
SBC Pulley Set, 2-Groove Up/3-Groove Low/Double-PS, Short Pump
SBC Pulley Set, 2-Groove Up/3-Groove Low/Double-PS, Short Pump
SBC Pulley Set, 2-Groove Up/3-Groove Low/Double-PS, Short Pump
X
SBC Pulley Set, 2-Groove Up/3-Groove Low/Double-PS, Short Pump
SBC Pulley Set, 2-Groove Up/3-Groove Low/Double-PS, Short Pump
SBC Pulley Set, 2-Groove Up/3-Groove Low/Double-PS, Short Pump
SBC Pulley Set, 2-Groove Up/3-Groove Low/Double-PS, Short Pump
SBC Pulley Set, 2-Groove Up/3-Groove Low/Double-PS, Short Pump
SBC Pulley Set, 2-Groove Up/3-Groove Low/Double-PS, Short Pump
SBC Pulley Set, 2-Groove Up/3-Groove Low/Double-PS, Short Pump
SBC Pulley Set, 2-Groove Up/3-Groove Low/Double-PS, Short Pump
SBC Pulley Set, 2-Groove Up/3-Groove Low/Double-PS, Short Pump
SBC Pulley Set, 2-Groove Up/3-Groove Low/Double-PS, Short Pump
SBC Pulley Set, 2-Groove Up/3-Groove Low/Double-PS, Short Pump
Zoomed In Image
Part # 9108705
$144.99
$149.99
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • Satin black finish
  • Steel construction
  • Lightweight
  • For Small Block Chevy short style water pumps
  • Double groove power steering pulley for two V-belts

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Belt Type:
V-Belt
Groove Count:
2-3
Material Type:
Steel
Finish:
Painted
Sold in Quantity:
Kit
Color:
Black
Water Pump Style:
Short

Info

Pair up a new set of pulleys sure to match for your Small Block Chevy equipped with a short-style water pump.  These convienent combos feature a satin black finish.

  • Satin black finish
  • Steel construction
  • Lightweight
  • For Small Block Chevy short style water pumps
  • Double groove water pump pulley for two V-belts
  • Combine separate 2-groove and 1-groove crank pulleys to make one 3-groove for three V-belts
  • Double groove power steering pulley for two V-belts

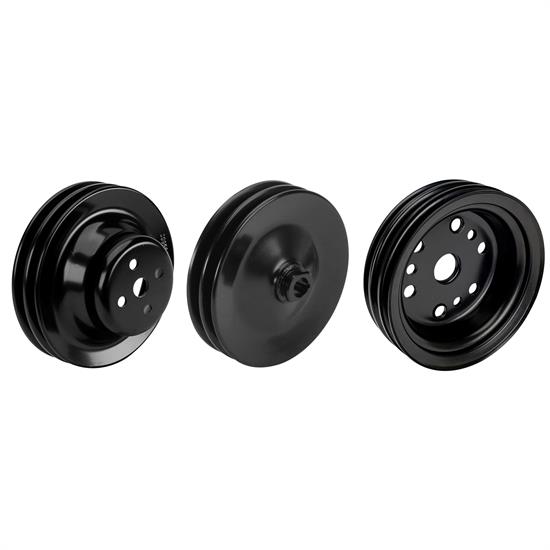

Kit Includes:

  • (1) SBC Satin Black Short Water Pump Pulley - Double Groove
  • (1) SBC Satin Black¬†Short Pump Crank Pulley - Double Groove
  • (1) SBC Satin Black¬†Short Pump Crank Pulley - Single Groove
  • (1) Chevy Satin Black Power Steering¬†Pulley - Double Groove



SBC Satin Black Short Water Pump Pulley - Double Groove

  • Diameter is 6-1/4"
  • Outside Length: 3"
  • Mounted Length: 2.71"
  • Shaft Diameter: .63"
  • Bolt Hole Pattern: 4 on 1.75"
  • Belt Width: .38"
  • Replaces GM # 3995642



SBC Satin Black Short Pump Crank Pulley - Double Groove

  • Diameter is 6-3/4"
  • Overall Thickness: 1-1/4"
  • Stock"Shallow" variety
  • Replaces GM # 374403
  • Use in conjunction with single groove crank pulley (91038812) for 3-groove pulley combo



SBC Satin Black 3rd-Groove Crank Pulley - Single Groove

  • Use in conjunction with double groove crank pulley (91038811) to make 3rd groove
  • Diameter: 6-3/4"
  • Replaces GM # 3751232



Satin Black Power Steering Pulley - Double Groove

  • For early 1970-82 Saginaw GM pumps w/ threaded shaft
  • Not for Gen II pump
  • For use with "Keyway" type pumps only
  • Overall Thickness: 1.91"

The outer groove on this 2-groove pulley is in the same position as the groove position used on the 1-groove pulley (91038809)



Notes:

  1. It may be necessary to shim either or both of the pulleys to achieve perfect belt alignment. There are variances between manufacturers of both water pumps and pulleys.
  2. Water Pump Pulley: Mounted length is from the face of the water pump pulley mount towards the front of the engine.
  3. Crank Pulley: Mounted length is from the face of the harmonic balancer towards the front of the vehicle.

Get the correct pulleys for your application by learning which water pump you have as explained in our tech article. SBC - Short vs Long Water Pump.

Charts

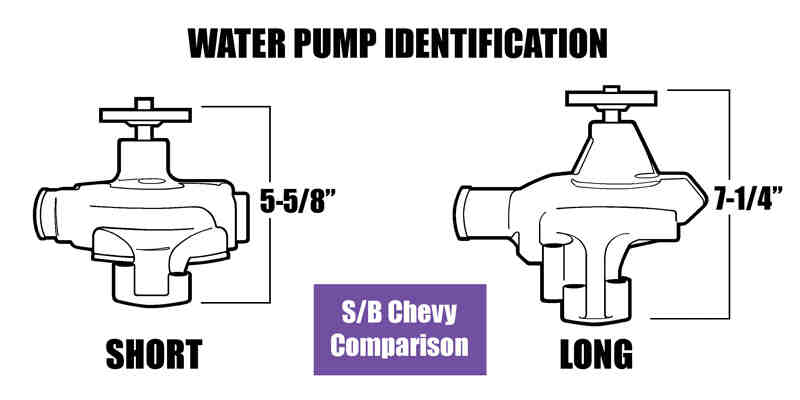

Water Pump ID Chart (GIF)

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Black Upper Double Groove Water Pump Pulley, Chevy V8
    Qty x 1
  • Double Groove S/B Chevy Crank Pulley, Black
    Qty x 1
  • 3rd Groove S/B Chevy Crank Pulley, Black
    Qty x 1
  • Black Double Groove Power Steering Pulley, Chevy
    Qty x 1
