SBC HEI Distributor and Spark Plug Wiring Kit, Over Valve Covers
SBC HEI Distributor and Spark Plug Wiring Kit, Over Valve Covers

SBC HEI Distributor and Spark Plug Wiring Kit, Over Valve Covers

Chevy Small Block V8, HEI / Male Cap Type, HEI / Male Cap Terminal Style, Steel Gear Material

0 Reviews | 1 Answered Question
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
SBC HEI Distributor and Spark Plug Wiring Kit, Over Valve Covers
SBC HEI Distributor and Spark Plug Wiring Kit, Over Valve Covers
SBC HEI Distributor and Spark Plug Wiring Kit, Over Valve Covers
SBC HEI Distributor and Spark Plug Wiring Kit, Over Valve Covers
SBC HEI Distributor and Spark Plug Wiring Kit, Over Valve Covers
X
SBC HEI Distributor and Spark Plug Wiring Kit, Over Valve Covers
SBC HEI Distributor and Spark Plug Wiring Kit, Over Valve Covers
SBC HEI Distributor and Spark Plug Wiring Kit, Over Valve Covers
Zoomed In Image
Part # 91602033
$119.99
$124.99
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • This complete kit includes a blueprinted HEI distributor, Moroso over the valve cover spark plug wires, and HEI wiring pigtail
  • High performance ignition module is rated to 7500 RPM to maintain spark output all the way to redline
  • 50,000 volt high output coil delivers increased spark energy to increase horsepower
  • Adjustable vacuum advance allows you to limit the vacuum advance to improve fuel economy while cruising
  • Performance advance curve built in so there is no need for a re-curve kit

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Item 1 of 1
Moroso Spark Plug Wires, Over Valve Covers, HEI Cap Ends, Install-Ready
Moroso Spark Plug Wires, Over Valve Covers, HEI Cap Ends, Install-Ready
Quantity: 1
Next
Add to Cart

Details

External Ignition Box Required:
No
Cap Type:
HEI / Male
Cap Terminal Style:
HEI / Male
Advance Type:
Mechanical and Vacuum
Trigger Style:
Magnetic
Hall Effect:
No
Sync Signal:
No
Trigger Sensors:
Single
Gear Material:
Steel
Distributor Cap Color:
Red
Mechanical Tach Drive:
No
Slip Collar:
No
Rotor Rotation:
Clockwise
MFG. Part #:
91602033
Sold in Quantity:
Kit

Info

Get a complete ignition system for your Small Block Chevy in one kit with this HEI distributor and spark plug wiring kit from Speedway Motors.

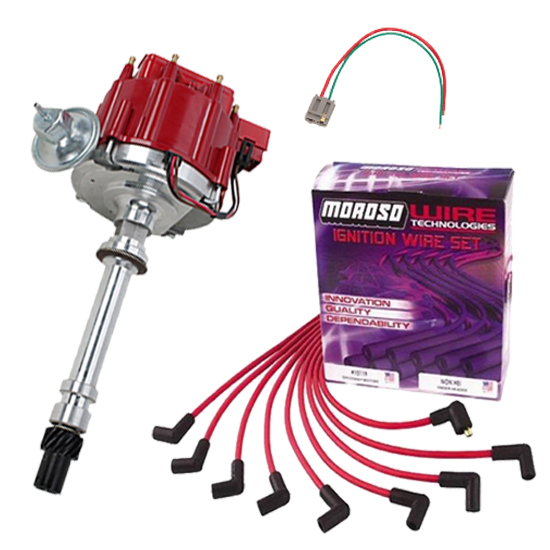

Kit Includes:

  • (1) Speedway Blueprinted HEI Distributor
  • (1) Moroso Spark Plug Wire Set -¬†Over Valve Covers
  • (1) GM HEI Distributor Wiring Pigtail Connector - 10"

HEI Distributor:

This HEI distributor for S/B and B/B Chevy non-computer controlled engines features:

  • 4-pin ignition module rated to 7500 rpm
  • Premium cap with brass terminals
  • Shaft Diameter: 1.249"
  • High output coil (50,000 volt¬†spark through 7,500 rpm)¬†
  • 4340¬†chromoly¬†steel bottom gear, for use with cast and steel billet cams¬†
  • Mechanical advance
  • Adjustable vacuum advance to improve economy while cruising
  • High performance rotor
  • Coil cover
  • Fully CNC machined, polished housing
  • True spark alignment for instant response at high RPM
  • Performance style advance curve built in

910-12342 Instructions (PDF)

Spark Plug Wires:

If you have ever tried to put plug wires together yourself, you know how fustrating it can be. These pre-assembled Moroso 8mm spiral core wires are fiberglass reinforced with a silicone outer layer.¬†Wires have 90¬į boots on both ends. Available in red or black¬†for¬†small block¬†Chevy.

  • 90 Degree boots on both ends¬†¬†
  • Over the valve cover wire route
  • HEI distributor cap ends
  • Designed for small block Chevy
  • Coil wire not included
  • 24" 1 Wire
  • 29" 3 Wires
  • 27" 5 Wires

Note: HEI type sets do not include remote coil wire

Distributor Wiring Pigtail:

This wiring pigtail features a dual HEI connector that helps clean up your engine bay by eliminating the use of single spade connectors to make battery and tachometer connections. 10 inch long wires that are red and green to identify battery and tachometer.

Notes

Replacement:

Cap 910-12330

Rotor 910-12331

Coil 698-741000

Gear 547-8531

Rotor Bushing 910-12222

Coil Cover 910-12333

HEI Module & Harness 910-12338

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Speedway Blueprinted SBC/BBC Chevy HEI Distributor
    Qty x 1
  • Moroso Spark Plug Wires, Over Valve Covers, HEI Cap Ends, Install-Ready
    Qty x 1
  • GM HEI Distributor Wiring Pigtail Connector, 10 Inch
    Qty x 1
