SBC Aluminum Pulley Set, 1-Groove Upper/2-Groove Lower,Short Pump
SBC Aluminum Pulley Set, 1-Groove Upper/2-Groove Lower,Short Pump

SBC Aluminum Pulley Set, 1-Groove Upper/2-Groove Lower,Short Pump

Chevy Small Block V8, 6.60" Overall Diameter, V-Belt Belt Type, 1-2 Groove Count, Aluminum

0 Reviews | 0 Answered Questions
In Stock
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
SBC Aluminum Pulley Set, 1-Groove Upper/2-Groove Lower,Short Pump
SBC Aluminum Pulley Set, 1-Groove Upper/2-Groove Lower,Short Pump
SBC Aluminum Pulley Set, 1-Groove Upper/2-Groove Lower,Short Pump
SBC Aluminum Pulley Set, 1-Groove Upper/2-Groove Lower,Short Pump
SBC Aluminum Pulley Set, 1-Groove Upper/2-Groove Lower,Short Pump
SBC Aluminum Pulley Set, 1-Groove Upper/2-Groove Lower,Short Pump
X
SBC Aluminum Pulley Set, 1-Groove Upper/2-Groove Lower,Short Pump
SBC Aluminum Pulley Set, 1-Groove Upper/2-Groove Lower,Short Pump
SBC Aluminum Pulley Set, 1-Groove Upper/2-Groove Lower,Short Pump
SBC Aluminum Pulley Set, 1-Groove Upper/2-Groove Lower,Short Pump
Zoomed In Image
Part # 9108690
$69.99
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Overall Diameter:
6.60"
Belt Type:
V-Belt
Groove Count:
1-2
Material Type:
Aluminum
Finish:
Natural
Sold in Quantity:
Kit
Water Pump Style:
Short

Info

Pair up a new set of pulleys sure to match for your Small Block Chevy equipped with a short-style water pump.  These convienent combos feature cast aluminum construction, for use on 1955-1968 SBC engines.

  • Precision machined cast aluminum construction
  • Lightweight¬†and strong
  • For '55-'68 Small Block Chevy short style water pumps
  • Single groove water pump pulley for one V-belt
  • Double groove crank pulley for two V-belts

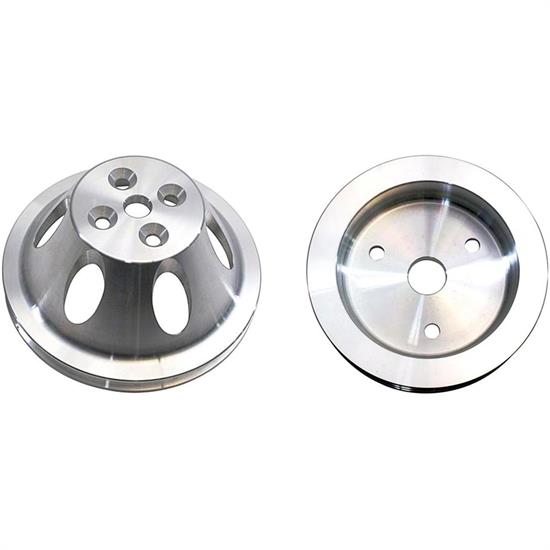

Kit Includes:

  • (1) SBC Aluminum Short Water Pump Pulley - Single Groove
  • (1) SBC Aluminum Short Pump Crank Pulley - Double Groove



SBC Aluminum Short Water Pump Pulley - Single Groove

  • From inside at fan hub to back side of pulley is 2-3/4"
  • From back edge of pulley to center of V-belt groove is 5/16"
  • Fits over a 5/8" water pump shaft (can be drilled to 3/4" if needed)
  • Diameter is 6-5/8"
  • Outside Length: 3"
  • Mounted Length: 2.38"
  • Shaft Diameter: .63"
  • Bolt Hole Pattern: 4 on 1.75"
  • Belt Width: .38"



SBC Aluminum Short Pump Crank Pulley - Double Groove

  • Diameter is 6-5/8"
  • Mounted Length: 1.25"
  • Bolt Hole Pattern: 3 on 2.75"
  • Belt Width: .42"
  • Inside Diameter: 1.10"



Notes:

  1. It may be necessary to shim either or both of the pulleys to achieve perfect belt alignment. There are variances between manufacturers of both water pumps and pulleys.

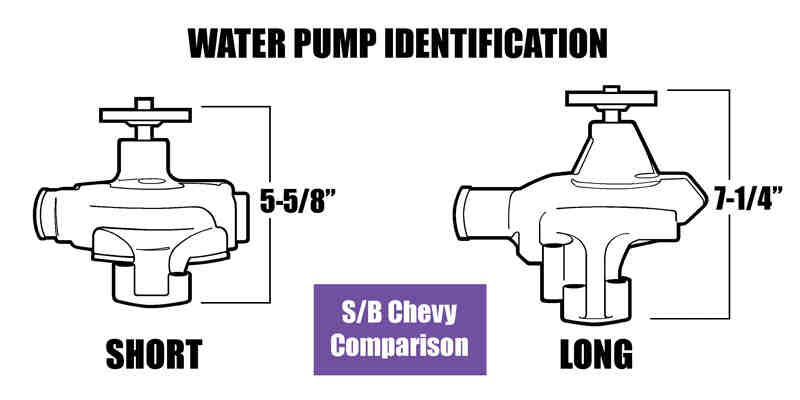

  2. Water Pump ID Chart (GIF)
  3. Water Pump Pulley: Mounted length is from the face of the water pump pulley mount towards the front of the engine.
  4. Crank Pulley: Mounted length is from the face of the harmonic balancer towards the front of the vehicle.

Get the correct pulleys for your application by learning which water pump you have as explained in our tech article. SBC - Short vs Long Water Pump.

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Small Block Chevy Aluminum Single Upper Pulley, Short Pump
    Qty x 1
  • Small Block Chevy Aluminum Double Lower Pulley, Short Pump
    Qty x 1
