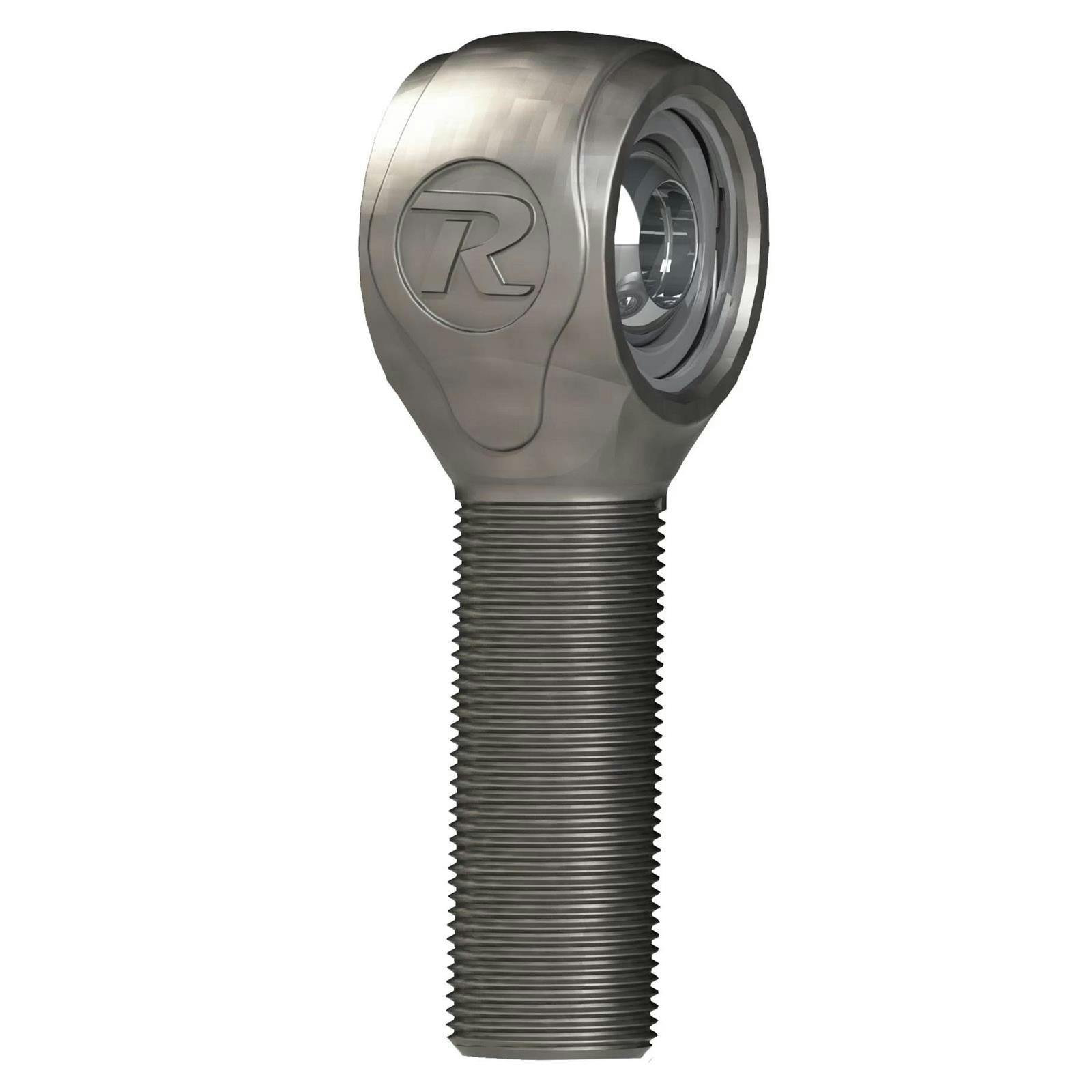

RideTech 90002898 R-Joint XL Rod End, 1-14 Right Hand Thread

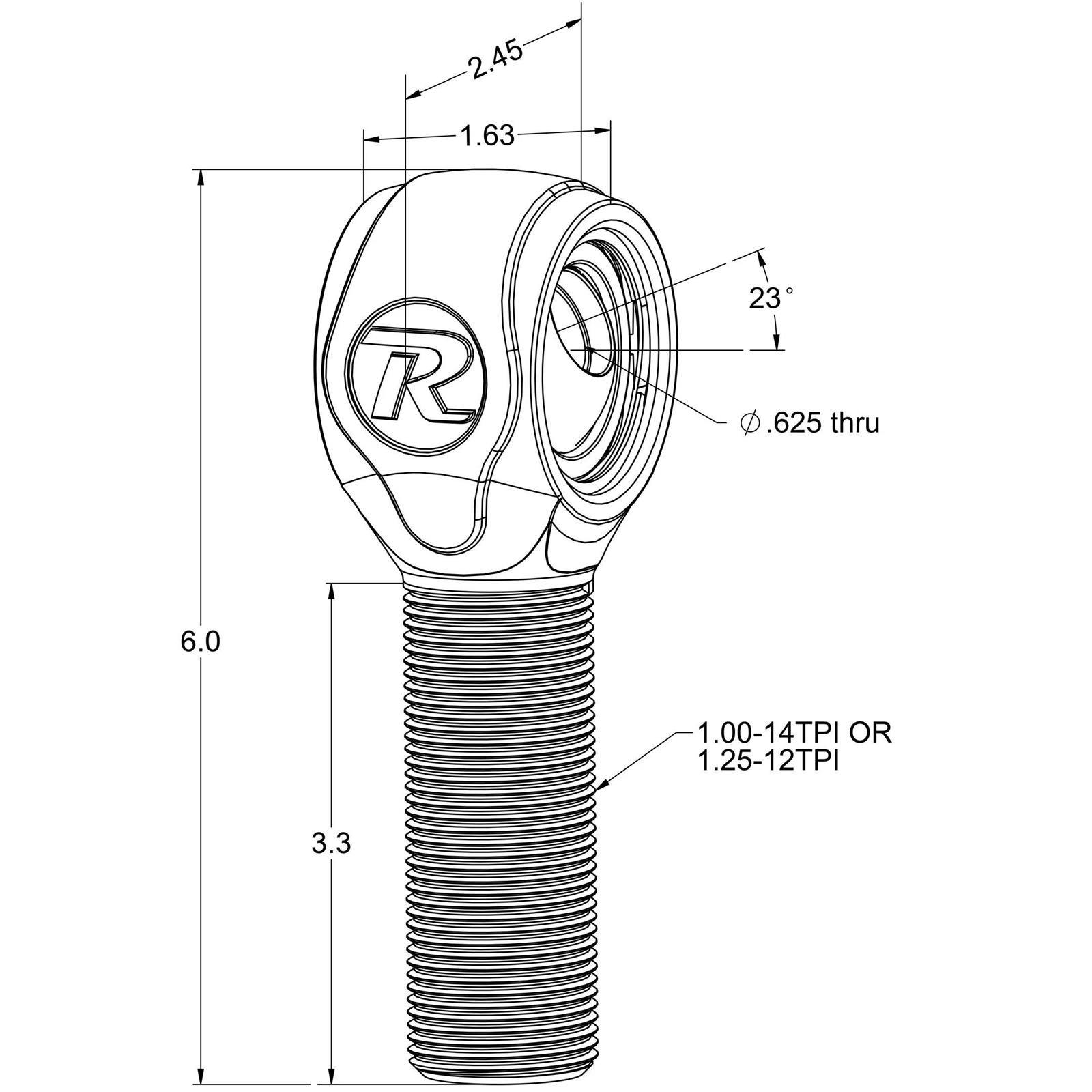

R-Joint XL rod end with 1?-14 right hand thread. Includes spacers to create 9/16? I.D. and 2-5/8? width. Other bolt sizes and width’s also available.

FEATURES:

R-Joints are a revolutionary rod end design that provides low friction, full range articulation, long service life, lateral stability and quiet operation.

Articulates in 3 planes 360 degree axial rotation and 50 degrees of total lateral rotation.

R-Joint XL housing is investment cast in the United States. The Casting then goes through a H900 Solution Anneal heat treatment to remove any crystallization. The heat treatment both increases tensile strength and ductility. All threading and machining is performed post heat treatment.

Composite Yield [starts to deform]: 17,250lbs

R-Joint XL Material Specs:

• Ball: 304 Stainless Steel
• Composite: RTX10
• Wave Spring: 17-7 Stainless Steel
• Retainer Ring: 302 Stainless Steel
• Housing: 17-4 Stainless Steel
• Spacers: 303 Stainless Steel
• Housing Manufacturing:

R-Joint XL housing is investment cast in the United States. The Casting then goes through a H900 Solution Anneal heat treatment to remove any crystallization. The heat treatment both increases tensile strength and ductility. All threading and machining is performed post heat treatment.
