Ridetech 23359741 Rq Series Shock, Fixed Valve, 4.80" Stroke
Ridetech 23359741 Rq Series Shock, Fixed Valve, 4.80" Stroke
Ridetech

|

#76823359741

Ridetech 23359741 Rq Series Shock, Fixed Valve, 4.80" Stroke

$235.00

/each

Factory Shipped


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Mono Tube Shock Type, Polished

    See more details

    Key Specs

    Shock TypeMono Tube
    Shock AdjustabilitySingle Adjustable
    Shock Body MaterialAluminum
    Body Diameter1.5"
    Shock Body TypeThreaded
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Ridetech 23359741 Details

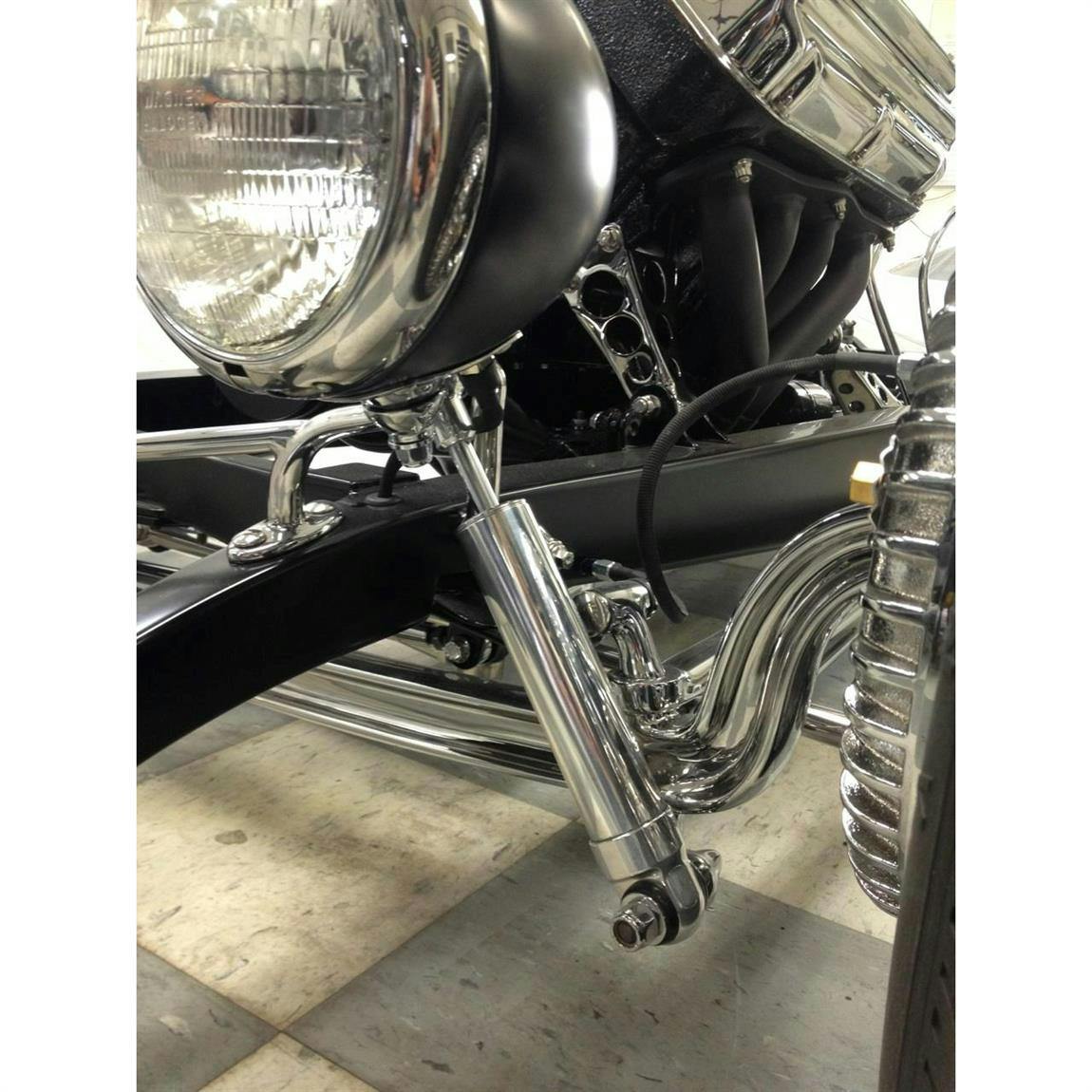

    The Ridetech “Hot Rod Shocks” are specifically designed to improve ride quality and performance in Straight Axle applications. To thrive in this harsh environment requires an extremely short shock length and specifically tuned compression and rebound dampening.

    This shock has an eye-to-eye compressed measurement of 9.3? and extended measurement of 14.1?. Included are 3 sets of 1.25? wide sleeves allowing for bolt sizes of 7/16?, 1/2? and 5/8?.

  • Specifically valved for Straight Axle Front or Rear Applications on Street Rods
  • 1.5? diameter body brilliantly polished by Advanced Plating
  • Monotube design allows large piston superior oil control, increases ride quality and handling performance
  • 1/2? harnened shaft is precision ground and straightened to a tolerance of .001? for increased durability and performance
  • Teflon piston wiper allow consistent piston/bore contact and repeatable performance.

    • Ridetech 23359741 Specifications

    KEY SPECS
    MFG. Part #23359741
    BrandRidetech
    Shock TypeMono Tube
    Shock AdjustabilitySingle Adjustable
    Shock Body MaterialAluminum
    Body Diameter1.5"
    Shock Body TypeThreaded
    Shock Body SizeSmall Body
    Shock Stroke Range4.00" to 4.99"
    PositionFront or Rear
    Mount PositionStock Mount
    Upper Shock MountEyelet
    Lower Shock MountEyelet
    Extended Length Range14.00" to 14.99"
    Extended Length14.1"
    Compressed Length Range9.00" to 9.99"
    FinishPolished
    Compressed Length9.3"
    Gas ChargedYes
    GENERAL
    RebuildableNo
    Shock Stroke4.80
    Material TypeAluminum
    Sold in QuantityEach
    GTIN Code840123509451
