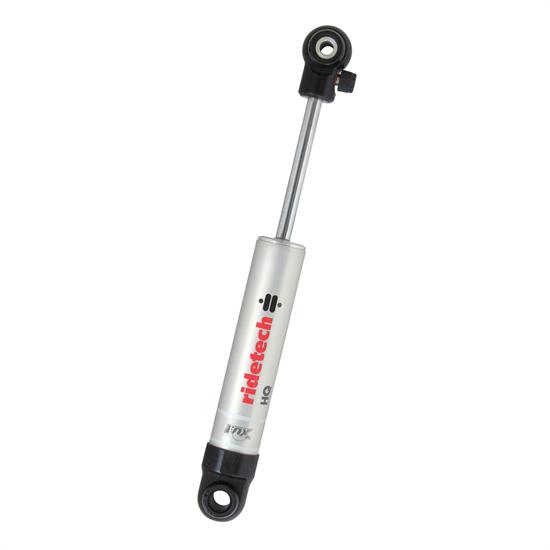

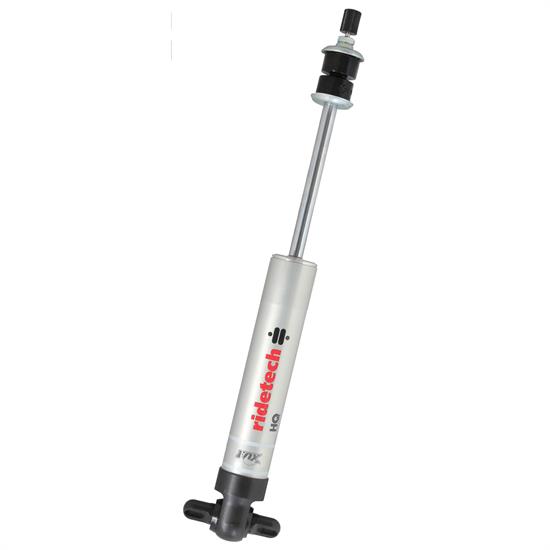

Ridetech 22199847 HQ Series Shock Absorber, 8.35" Stroke
Ridetech 22199847 HQ Series Shock Absorber, 8.35" Stroke
Ridetech

|

#76822199847

Ridetech 22199847 HQ Series Shock Absorber, 8.35" Stroke

$255.00

/each

Factory Shipped


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

70-81 Chevy Camaro, 70-81 Pontiac Firebird, Gas Charged

    See more details

    Key Specs

    Shock TypeMono Tube
    Shock AdjustabilitySingle Adjustable
    Shock Body MaterialAluminum
    Body Diameter1.5"
    Shock Body TypeSmooth
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Ridetech 22199847 Details

    Shock absorbers are the brains of your suspension. They greatly influence how your car rides and handles. To best accomplish these objectives, Ridetech shock absorbers for 1970-1981 Camaros and Firebirds utilize mono tube valving which allows for a larger piston and more precise control. The design is superior to twin tubes shocks with respect to damping and reliability. Ridetech HQ Series Shocks are 100% bolt-on. They are rebound adjustable shock absorbers and offer exceptional quality thanks to impact-forged, hard-anodized aluminum bodies and heavy-duty shafts. They carry an industry-best 1,000,001 mile warranty.

    Fitment of this rear shock includes:

  • 1970-1981 Camaro
  • 1970-1981 Firebird

    • Dimensions:

  • Compressed – 12.55?
  • Ride Height – 17.5?
  • Extended – 20.9?

    • Wide T-Bar – 2.312? to 2.875? Center to Center

    Charts

    Ridetech 22199847 Specifications

    KEY SPECS
    MFG. Part #22199847
    BrandRidetech
    Shock TypeMono Tube
    Shock AdjustabilitySingle Adjustable
    Shock Body MaterialAluminum
    Body Diameter1.5"
    Shock Body TypeSmooth
    Shock Body SizeSmall Body
    Shock Stroke Range8.00" to 8.99"
    PositionRear
    Mount PositionStock Mount
    Upper Shock MountTie Bar
    Lower Shock MountStud
    Extended Length Range20.00" to 20.99"
    Extended Length20.9"
    Compressed Length Range12.00" to 12.99"
    FinishAnodized
    Compressed Length12.55"
    Gas ChargedYes
    Number of Valving Selections24
    GENERAL
    RebuildableNo
    Shock Stroke8.35
    Bushing MaterialPolyurethane
    Bushing ColorBlack
    Sold in QuantityEach
    GTIN Code840123501981
