#76822169847

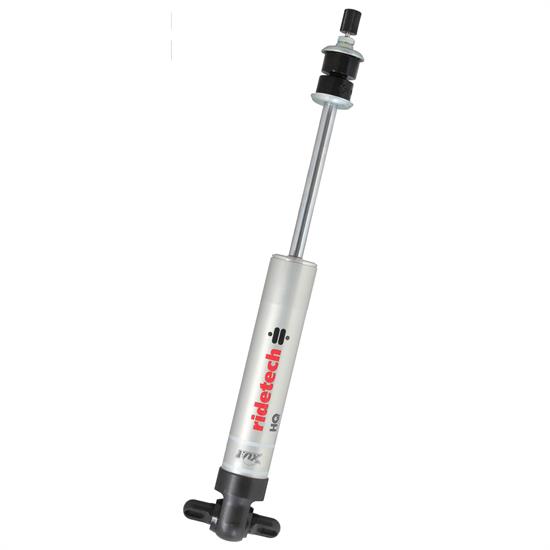

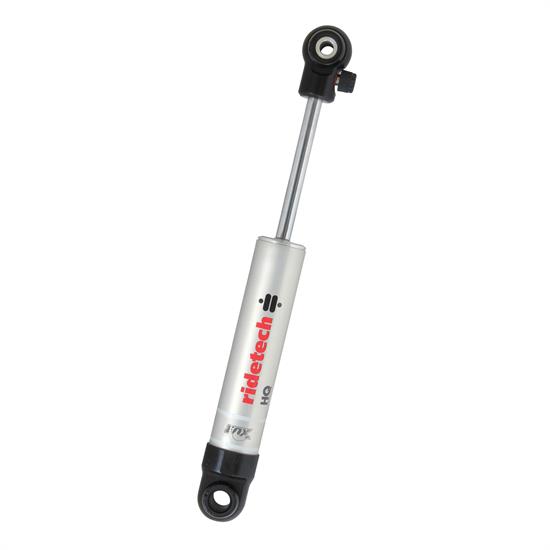

Ridetech 22169847 HQ Series Shock Absorber, 5.75" Stroke
$255.00
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
|
#76822169847
$255.00
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| Shock Type | Mono Tube |
| Shock Adjustability | Single Adjustable |
| Shock Body Material | Aluminum |
| Body Diameter | 1.5" |
| Shock Body Type | Smooth |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyShock absorbers are without a doubt the brains of your suspension. Nothing influences how your car rides and handles more than its shock absorbers. Their primary function is to control the oscillations of your car’s springs thereby keeping your tires in contact with the road. To best accomplish that objective, Ridetech shock absorbers utilize monotube design which allows for a larger piston and more precise valving. The design is superior to twin tubes shocks with respect to damping and reliability. These HQ Series Shocks are rebound adjustable shock absorbers and offer exceptional quality thanks to impact-forged, hard-anodized bodies and heavy-duty shafts. They carry an industry-best 1,000,001 mile warranty.
Fitment of this front shock includes:
Dimensions:
Wide T-Bar – 2.312? to 2.875? Center to Center
Charts
Guides & Documents
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | 22169847 |
| Brand | Ridetech |
| Shock Type | Mono Tube |
| Shock Adjustability | Single Adjustable |
| Shock Body Material | Aluminum |
| Body Diameter | 1.5" |
| Shock Body Type | Smooth |
| Shock Body Size | Small Body |
| Shock Stroke Range | 5.00" to 5.99" |
| Position | Front |
| Stroke | 5.2" |
| Mount Position | Stock Mount |
| Upper Shock Mount | Stud |
| Lower Shock Mount | Tie Bar |
| Extended Length Range | 15.00" to 15.99" |
| Extended Length | 15.3" |
| Compressed Length Range | 9.00" to 9.99" |
| Finish | Anodized |
| Compressed Length | 9.55" |
| Gas Charged | Yes |
| Number of Valving Selections | 24 |
| GENERAL | |
| Rebuildable | No |
| Shock Stroke | 5.75 |
| Bushing Material | Polyurethane |
| Bushing Color | Black |
| Sold in Quantity | Each |
| GTIN Code | 840123501790 |
Be the first to ask a question.
1961-1964 Buick LeSabre
1963-1965 Buick Riviera
1958-1964 Chevy Bel Air
1958-1964 Chevy Biscayne
1958-1961 Chevy Brookwood
1958 Chevy Del Ray
1959-1960 Chevy El Camino
1958-1964 Chevy Impala
1959-1961 Chevy Kingswood
1958-1961 Chevy Nomad
1959-1961 Chevy Parkwood
1958-1960 Chevy Sedan Delivery
1999-2006 Chevy Silverado 1500
2007 Chevy Silverado 1500 Classic
1958 Chevy Yeoman
1987-1996 Dodge Dakota
2002-2005 Dodge Ram 1500
1999-2006 GMC Sierra 1500
2007 GMC Sierra 1500 Classic
