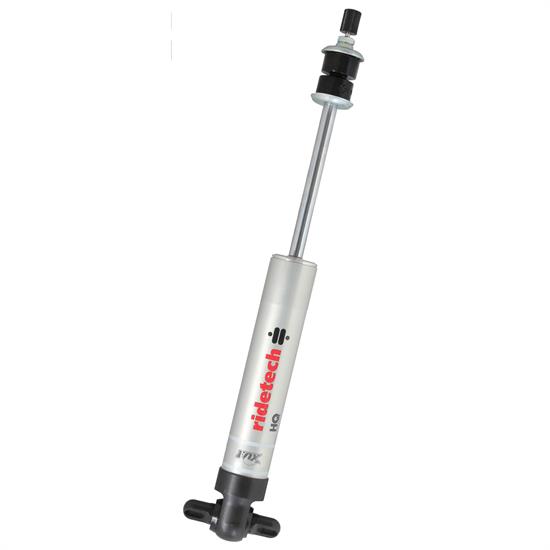

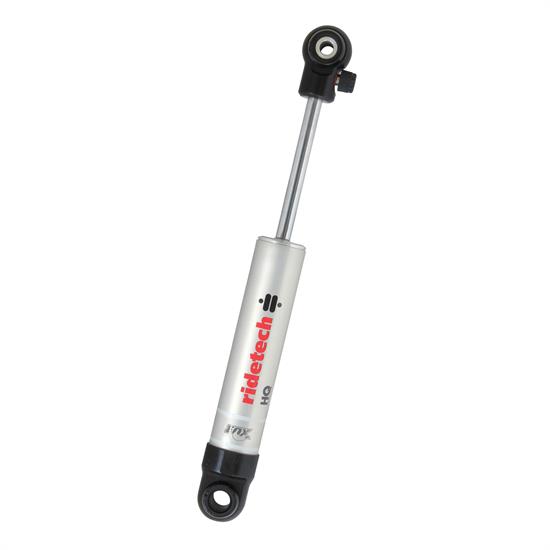

Ridetech 22159847 HQ Series Shock Absorber, 5.25" Stroke
Ridetech 22159847 HQ Series Shock Absorber, 5.25" Stroke
Ridetech

|

#76822159847

Ridetech 22159847 HQ Series Shock Absorber, 5.25" Stroke

$255.00

/each

Factory Shipped


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Buick, Cadillac, Chevy, GMC, Pontiac, Oldsmobile, Ford

    See more details

    Key Specs

    Shock TypeMono Tube
    Shock AdjustabilitySingle Adjustable
    Shock Body MaterialAluminum
    Body Diameter1.5"
    Shock Body TypeSmooth
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Ridetech 22159847 Details

    Shock absorbers are without a doubt the brains of your suspension. Nothing influences how your car rides and handles more than its shock absorbers. Their primary function is to control the oscillations of your car’s springs thereby keeping your tires in contact with the road. To best accomplish that objective, Ridetech shock absorbers utilize monotube design which allows for a larger piston and more precise valving. The design is superior to twin tubes shocks with respect to damping and reliability. These HQ Series Shocks are rebound adjustable shock absorbers and offer exceptional quality thanks to impact-forged, hard-anodized bodies and heavy-duty shafts. They carry an industry-best 1,000,001 mile warranty.

    Fitment of this front shock includes:

  • 1970-1981 Camaro and Firebird
  • 1963-1982 Corvette
  • 1955-1957 Chevy Car (Bel Air, 210, 150)
  • 1965-1970 Impala, Bel Air, Biscayne and Caprice
  • 1982-1996 Impala and Caprice
  • 1958-1970 Pontiac Full size
  • 1956-1960 Cadillac Fleetwood and DeVille
  • 1972-1976 Torino
  • 1965-1970 Oldsmobile Full size
  • 1959-1979 Thunderbird
  • 1974-1979 Cougar
  • 1972-1979 Ranchero
  • 1988-1998 C1500 (2wd – stock springs)

    • Dimensions:

  • Compressed – 9.05?
  • Ride Height – 12.25?
  • Extended – 14.3?

    • Wide T-Bar – 2.312? to 2.875? Center to Center

    Charts

    Ridetech 22159847 Specifications

    KEY SPECS
    MFG. Part #22159847
    BrandRidetech
    Shock TypeMono Tube
    Shock AdjustabilitySingle Adjustable
    Shock Body MaterialAluminum
    Body Diameter1.5"
    Shock Body TypeSmooth
    Shock Body SizeSmall Body
    Shock Stroke Range5.00" to 5.99"
    PositionFront
    Stroke5.2"
    Mount PositionStock Mount
    Upper Shock MountStud
    Lower Shock MountStud
    Extended Length Range13.00" to 13.99"
    Extended Length13.3"
    Compressed Length Range8.00" to 8.99"
    FinishAnodized
    Compressed Length8.55"
    Gas ChargedYes
    Number of Valving Selections24
    GENERAL
    RebuildableNo
    Shock Stroke5.25
    Sold in QuantityEach
    GTIN Code840123501714
