#76821170805
$995.00
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Universal Fit
| Shock Type | Mono Tube |
| Shock Adjustability | Single Adjustable |
| Shock Body Material | Aluminum |
| Body Diameter | 1.5" |
| Shock Body Type | Smooth |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyRecommended Applications:
Solid rear axle: Rear axle weight is less than 2,000lbs.
NOT recommended for IFS installations not enough load capacity

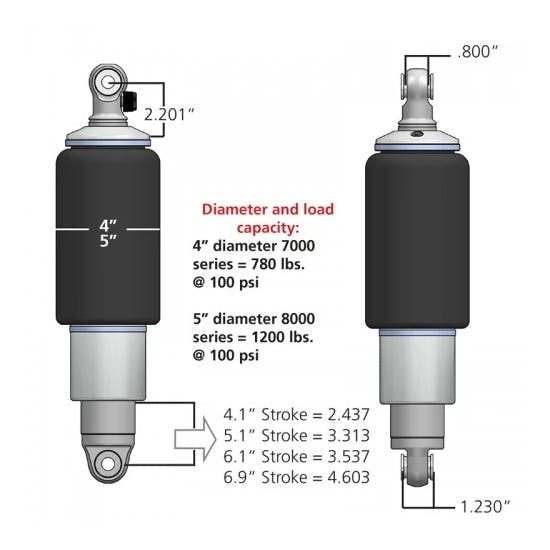

Diameter and load capacity: 5 " diameter 8000 series = 1,200 lbs. @ 100 psi
Handling Quality Series
The Handling Quality ("HQ") Series features single adjustable shock valving. It is housed in a impact forged aluminum construction. The HQ series is available in a wide range of stroke lengths, and mounting styles to fit a large variety of applications.
Features:
Guides & Documents
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | 21170805 |
| Brand | Ridetech |
| Shock Type | Mono Tube |
| Shock Adjustability | Single Adjustable |
| Shock Body Material | Aluminum |
| Body Diameter | 1.5" |
| Shock Body Type | Smooth |
| Shock Body Size | Small Body |
| Shock Stroke Range | 3.00" to 3.99" |
| Position | Rear |
| Stroke | 3.85" |
| Mount Position | Stock Mount |
| Upper Shock Mount | Stud |
| Lower Shock Mount | Eyelet |
| Extended Length Range | 18.00" to 18.99" |
| Extended Length | 18.8" |
| Compressed Length Range | 12.00" to 12.99" |
| Finish | Anodized |
| Compressed Length | 12.15" |
| Gas Charged | Yes |
| Number of Valving Selections | 24 |
| GENERAL | |
| Rebuildable | No |
| Sold in Quantity | Each |
| GTIN Code | 840123515049 |
1 Question • 1 Answer
What is the maximum stroke length I can get i this shock?
by Pete
• 3 years ago
1 answer
View Answer
1 of 1 questions shown
