Ridetech 12150210 HQ Series Coilover System, 2005-14 Mustang
Ridetech 12150210 HQ Series Coilover System, 2005-14 Mustang
Ridetech

|

#76812150210

Ridetech 12150210 HQ Series Coilover System, 2005-14 Mustang

$3,005.00

/kit

Factory Shipped


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

05-14 Ford Mustang, Front and Rear Position, Anodized

    See more details

    Key Specs

    PositionFront and Rear
    Shock AdjustabilitySingle Adjustable
    Shock TypeMono Tube
    Shock Body MaterialAluminum
    Height AdjustableYes
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Ridetech 12150210 Details

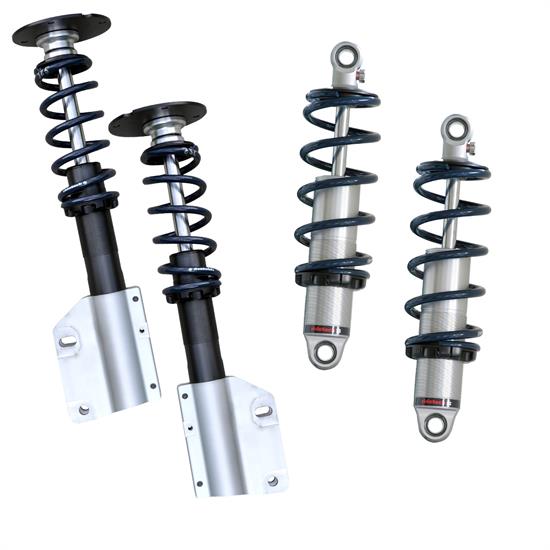

    The HQ Coil Over System provides adjustable rebound tuning with our front and rear HQ CoilOvers. The System Includes: 2 Coil-Over Front Struts, 2 Coil-Over Rear Shocks and 4 Springs, with proper spring rate, and all mounting brackets and hardware.

    Front:

    PERFORMANCE MONO-TUBE STRUT

    Not just a replacement strut … The new Ridetech performance struts are designed with handling performance and ride quality in mind.

    Features:

  • Steel Mono-Tube strut design
  • Oversized rod guides for maximum strength and durability
  • Extruded aluminum clamp mount with integrated stainless brake line brackets
  • Nitro carburized finish for a lasting durability
  • Billet upper mounting bracket with built in camber/caster adjustment.
  • Integerated thrust bearing
  • Includes Hyperco Springs (made with high tensile steel)
  • Delrin spring washers for easy spring retainer adjustment.
  • Available in (single adjustable HQ) (triple adjustable TQ)

    • Rear:

    Ridetech CoilOvers

    Anodized finish protects against corrosion

  • Available as fixed valve or rebound single adjustable
  • CNC machinedbillet hardware
  • Unique pinch clamp height adjuster uses finer thread for easy adjustment
  • Includes 1/2? bore x 1? kevlar lined bearings for noise free operation

    • Ridetech 2 1/2? coil over springs

    built in Indiana by HyperCo:

    High tensile premium steel CNC cold wound, less weight, more resistant to bowing, increased travel with durable powered coated finish

    Monotube gas pressure design offers superior fade free performance

  • Impact forged aluminum body provides superior strength and reliable service
  • Larger 1.834? piston provides outstanding ride quality
  • Double sealed rod guide with dust cover eliminates oil leakage
  • 5/8? chrome shock shaft

    • Ridetech Aluminum MonoTube Shocks

    Great Performance

    Mono-tube construction sets this coil-over shock apart – it means consistent performance and great ride quality

    Charts

    Ridetech 12150210 Specifications

    KEY SPECS
    MFG. Part #12150210
    BrandRidetech
    PositionFront and Rear
    Shock AdjustabilitySingle Adjustable
    Shock TypeMono Tube
    Shock Body MaterialAluminum
    Height AdjustableYes
    FinishAnodized
    GENERAL
    Shock Body TypeThreaded
    Number of Valving Selections24
    Coilover Kit IncludedYes
    Coilover Springs IncludedYes
    Bushing MaterialDelrin
    Body Diameter2"
    Sold in QuantityKit
    AdjustableYes
    Hardware IncludedYes
    Crossmember IncludedNo
    Welding RequiredNo
    Gas ChargedYes
    Mounting Bracket IncludedNo
    Suspension Height Adjustment1.0-3.0 Inch Lowered
    Spring FinishPowder Coated
    Spring ColorBlue
    GTIN Code840123508294
