RideTech 12093511 TQ Series Front Coilovers, 64-66 Mustang
RideTech 12093511 TQ Series Front Coilovers, 64-66 Mustang

RideTech 12093511 TQ Series Front Coilovers, 64-66 Mustang

64-66 Ford Mustang, Front Position, 3-Way Adjustable Shock Adjustability, Mono Tube Shock Type

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
RideTech 12093511 TQ Series Front Coilovers, 64-66 Mustang
RideTech 12093511 TQ Series Front Coilovers, 64-66 Mustang
RideTech 12093511 TQ Series Front Coilovers, 64-66 Mustang
RideTech 12093511 TQ Series Front Coilovers, 64-66 Mustang
RideTech 12093511 TQ Series Front Coilovers, 64-66 Mustang
X
RideTech 12093511 TQ Series Front Coilovers, 64-66 Mustang
RideTech 12093511 TQ Series Front Coilovers, 64-66 Mustang
RideTech 12093511 TQ Series Front Coilovers, 64-66 Mustang
Zoomed In Image
We estimate this item will ship on or before April 27th.
Part # 76812093511
$1,900.00
kit
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Position:
Front
Shock Adjustability:
3-Way Adjustable
Shock Type:
Mono Tube
Shock Body Material:
Aluminum
Shock Body Type:
Threaded
Upper Shock Mount:
Stud
Lower Shock Mount:
Eyelet
Number of Valving Selections:
72
Finish:
Clear Anodized
Coilover Kit Included:
Yes
Coilover Springs Included:
Yes
Bushing Material:
Delrin
Body Diameter:
2.00"
Sold in Quantity:
Pair
Adjustable:
Yes
Hardware Included:
Yes
Crossmember Included:
No
Welding Required:
No
Gas Charged:
Yes
Mounting Bracket Included:
No
Suspension Height Adjustment:
1.0-3.0 Inch Lowered
Spring Finish:
Powdercoated
Spring Color:
Blue
MFG. Part #:
12093511

Info

TQ Series Coil Overs give your 1964-1966 Mustang competition-grade handling with dual compression adjustment and rebound adjustment for precise tuning. Remote reservoirs provide consistent fluid temps in all environments, as well as easier access to compression tuning knobs. TQ "Track Quality" Series provides single rebound adjustment combined with dual stage - high speed and low speed - compression adjustment. The high speed adjustment feature allows tuning of instances that might induce a high speed excursion of the piston rod. This includes rapid changes in suspension loading such as quick directional transitions in autocross competition. The high speed adjustment also allows fine tuning for impact harshness typically found during street driving such as pot holes, speed bumps, and other road irregularities. Low speed adjustment allows tuning of ride quality, as well as the general cornering characteristics of typical road course and winding road cornering use. TQ Series Coil-Overs are the ultimate choice for autocross, track days, drag racing and other extreme use.

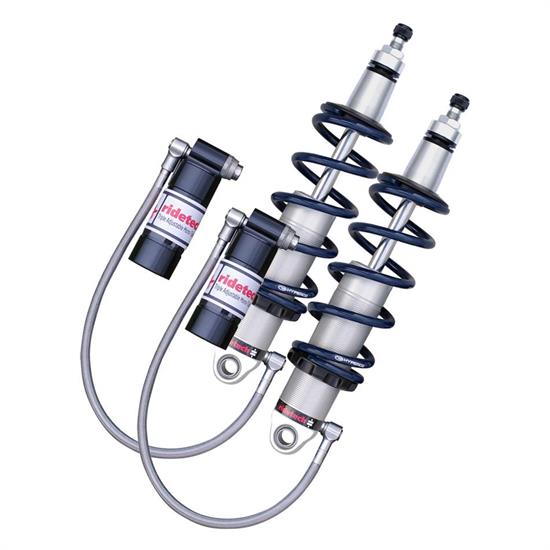

With a large 1.834" piston, heavy duty 5/8" shaft, and impact forged bodies, TQ Series Coil Overs are built to perform and built to last. They're backed by our exclusive 1,000,001 mile warranty. RideTech develops our shock calibrations and spring rates through thousands of cross-country test miles, on our exclusive test track and at competition events from coast to coast. We understand the suspension needs of your Mustang better than any other company. This Coil Over system includes two triple adjustable TQ Series Coil Over shocks with remote reservoirs and two Hyperco coil springs with proper spring rate.

Installation Instructions (PDF)

Installation Instructions (PDF)

Installation Instructions (PDF)

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 15 business days for RideTech to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
