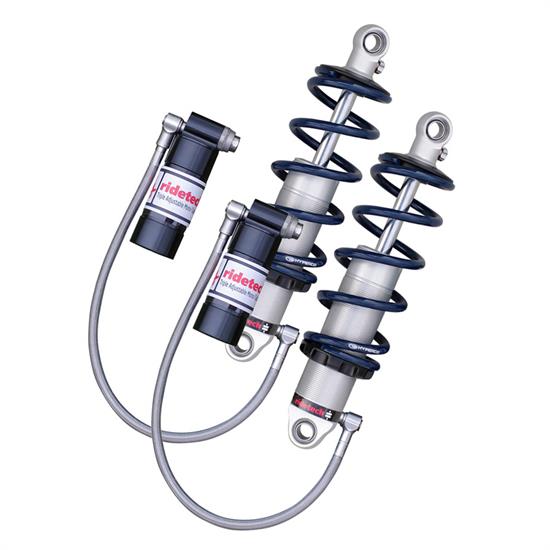

RideTech 11396511 TQ Series Coilovers, 1982-03 GM S10
RideTech 11396511 TQ Series Coilovers, 1982-03 GM S10

RideTech 11396511 TQ Series Coilovers, 1982-03 GM S10

82-03 Chevy S10, 82-90 GMC S15, Rear Position, 3-Way Adjustable Shock Adjustability

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
RideTech 11396511 TQ Series Coilovers, 1982-03 GM S10
RideTech 11396511 TQ Series Coilovers, 1982-03 GM S10
RideTech 11396511 TQ Series Coilovers, 1982-03 GM S10
RideTech 11396511 TQ Series Coilovers, 1982-03 GM S10
RideTech 11396511 TQ Series Coilovers, 1982-03 GM S10
X
RideTech 11396511 TQ Series Coilovers, 1982-03 GM S10
RideTech 11396511 TQ Series Coilovers, 1982-03 GM S10
RideTech 11396511 TQ Series Coilovers, 1982-03 GM S10
Zoomed In Image
We estimate this item will ship on or before June 4th.
Part # 76811396511
$1,800.00
set
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Position:
Rear
Shock Adjustability:
3-Way Adjustable
Shock Type:
Mono Tube
Shock Body Material:
Aluminum
Shock Body Type:
Threaded
Upper Shock Mount:
Eyelet
Lower Shock Mount:
Eyelet
Compressed Length Range:
11.00" to 11.99"
Compressed Length:
11.23"
Extended Length Range:
16.00" to 16.99"
Extended Length:
16.43"
Number of Valving Selections:
72
Finish:
Clear Anodized
Coilover Springs Included:
Yes
Shaft Diameter:
0.63"
Bushing Material:
PTFE
Body Diameter:
2.00"
Sold in Quantity:
Set
Adjustable:
Yes
Hardware Included:
Yes
Crossmember Included:
No
Welding Required:
No
Gas Charged:
Yes
Mounting Bracket Included:
No
Suspension Height Adjustment:
1.0-3.0 Inch Lowered
Spring Finish:
Powdercoated
Spring Color:
Blue
MFG. Part #:
11396511

Info

TQ Series rear CoilOvers give your S-10/S-15 competition-grade handling with dual compression adjustment and rebound adjustment for precise tuning. Remote reservoirs provide consistent fluid temps in all environments, as well as easy access to compression tuning knobs. TQ "Track Quality" Series provides single rebound adjustment combined with dual stage - high speed and low speed - compression adjustment. The high speed adjustment feature allows tuning of instances that might induce a high speed excursion of the piston rod. This includes rapid changes in suspension loading such as quick directional transitions in autocross competition. The high speed adjustment also allows fine tuning for impact harshness typically found during street driving such as pot holes, speed bumps, and other road irregularities. Low speed adjustment allows tuning of ride quality, as well as the general cornering characteristics of typical road course and winding road cornering use. TQ Series CoilOvers are the ultimate choice for autocross, track days, drag racing and other ultra-high performance use.

With a large 1.834" piston, heavy duty 5/8" shaft, and impact forged bodies, TQ Series coil-overs are built to perform and built to last. They're backed by our exclusive 1,000,001 mile warranty. RideTech develops our shock calibrations and spring rates through thousands of cross-country test miles, on our exclusive test track and at competition events from coast to coast. We understand the suspension needs of your F-body better than any other company. This CoilOver system includes two rear triple adjustable TQ Series CoilOver shocks with remote reservoirs and two Hyperco coil springs with proper spring rate.

*Note-This product requires RideTech bolt-on 4-Link rear suspension system for proper installation.

  • Fits 1982-2003 Chevy S10

Ridetech Coilover System Installation Instructions (PDF)

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 5 business days for RideTech to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
