Ridetech 11390201 Complete Coilover System, 1982-03 GM S10

#76811390201

Ridetech 11390201 Complete Coilover System, 1982-03 GM S10

Name: Ridetech 11390201 Complete Coilover System, 1982-03 GM S10
Brand: Ridetech
SKU: 76811390201
Price: 5720 USD
Availability: InStock

Write a Review

2 Questions

$5,720.00

/set

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

96-00 Hombre, 82-03 S10, 82-90 S15, 91-03 Sonoma

See more details

Key Specs

MFG. Part #	11390201
Bushing Material	Delrin
Hardware Included	Yes
Spring Rate	750 lbs.
Front Coil Springs Included	Yes

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Ridetech 11390201 Details

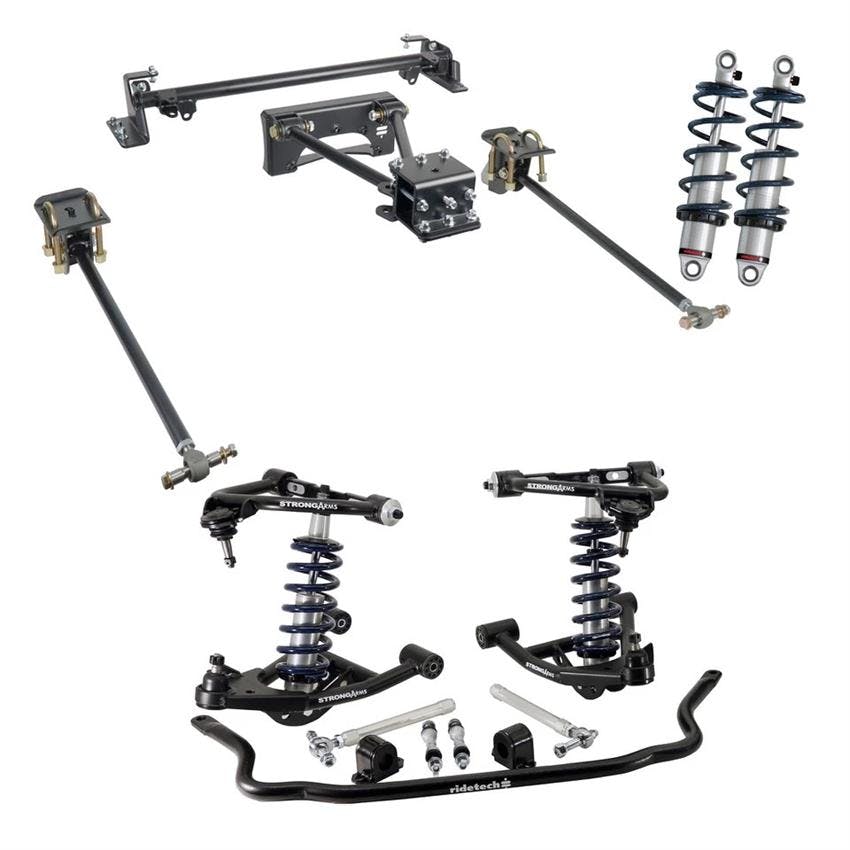

Chevrolet S-10, S-15 and GMC Sonoma pickup trucks greatly benefit from lowered ride height and improved ride quality. These trucks are plentiful, affordable and can easily be upgraded to V8 engines with great power to weight ratio. Designed to lower your vehicle and improve handling and ride quality. This complete bolt-on system eliminates your truck’s factory leaf springs and replaces them with a heavy duty Wishbone link-style system that includes Ridetech’s excellent R-Joints for smooth, bind-free articulation. Up front, our TruTurn™ system includes tubular A-arms and bump steer-correcting outer tie rod ends. The complete system features a set of front and rear HQ Series monotube Coil-overs. Adjustable spring collars help you set ride height while the shock’s rebound adjustment knob lets you fine tune ride quality to perfection. A heavy duty front MuscleBar™ sway bar kit finishes off the system. Overall, you’ll be thoroughly impressed with how well your truck handles, rides and looks with our Coil-over Suspension System.

Note: This system does not currently bolt on to the S10/S15 Blazer

Features:

The Upper StrongArm tubular control arms feature tall ball joints to provide increased camber gain and the ball joint location has been moved back to allow for additional caster setting to improve high speed stability and steering feel. Offset slugs are also available for additional caster. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.

The Lower StrongArm tubular control arms feature a double sheer lower mount for increased strength. We have also dropped the lower shock mount to increase suspension travel and moved the lower ball joint forward to increase caster settings while keeping the wheel centered in the wheel opening. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.

This TruTurn steering linkage optimizes bump steer, under .065? though 5? of suspension travel. Includes outer tie rod studs, out tie rod heim joints, tie rod adjusters and inner tie rods.

HQ Series Coil-overs utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the ride quality and handling the rebound knob is located at the top of the shock for under hood access. They come standard with a 1,000,0001 Mile Warranty. Interested in Auto Cross or Road Course Racing? Consider the TQ Series Coil-overs.

This Front MuscleBar sway bar helps reduce body roll with a significant increase in rate (1.375? O.D. x .25? wall – 475 lb/in) and includes performance end links and Delrin liners to reduce suspension bind.

The Rear Wishbone Suspension System greatly improves traction, handling and ride quality. Installation does not require the any modifications to the bed floor and the installation is completely Bolt-on. It is designed for use w/ the stock 7.5? rear end (A bracket for the 8.5? rear end is available upon request). The R-Joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack!

Upgrades:

TQ Series Shocks – The remote reservoir triple adjustable coil-over shocks feature rebound adjustment along with dual stage (High Speed and Low Speed) compression adjustment. High speed adjustment allows tuning for impact harshness and low speed adjustment allows tuning of cornering characteristics, perfect for use on the autocross, road course and drag strip. Read More

Charts

Ridetech Coilover System Installation Instructions (PDF)

Guides & Documents

Front/Rear Suspension Kits Installation Instructions (76811390201)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Ridetech 11390201 Specifications

KEY SPECS
MFG. Part #	11390201
Brand	Ridetech
Bushing Material	Delrin
Hardware Included	Yes
Spring Rate	750 lbs.
Front Coil Springs Included	Yes
Rear Coil Springs Included	Yes
Rear Leaf Springs Included	No
Front Sway Bar Included	Yes
Sway Bar Bushings Included	Yes
Upper Trailing Arms Included	Yes
Lower Trailing Arms Included	Yes
Trailing Arm Mount Braces Included	Yes
Upper Control Arms Included	Yes
Lower Control Arms Included	Yes
Control Arm Style	Tubular
Control Arm Material	Steel
Control Arm Finish	Powder Coated
Spindles Included	No
Inner Tie Rod Ends Included	No
Outer Tie Rod Ends Included	No

GENERAL
GTIN Code	840123506467
Finish	Powder Coated
Sold in Quantity	Set
Front Sway Bar Finish	Powder Coated
Calipers Included	No
Rotors Included	No
Brake Pads Included	No
Brake Lines Included	No
Wheel Studs Included	No

Ratings & Reviews

Be the first to write a review.

Questions & Answers

2 Questions • 2 Answers

Sort Questions

Is this kit compatible with a 8.5 rear

by Kaleb

• a year ago

1 answer

View Answer

How much does your s10 coilover kit lower the truck by?

by William

• 3 years ago

1 answer

View Answer

2 of 2 questions shown

Fitment

1982-2003 Chevy S10

1982-1990 GMC S15

1991-2003 GMC Sonoma

1996-2000 Isuzu Hombre
