Ridetech 11360297 Air Suspension System, 73-87 C10

#76811360297

Ridetech 11360297 Air Suspension System, 73-87 C10

Name: Ridetech 11360297 Air Suspension System, 73-87 C10
Brand: Ridetech
SKU: 76811360297
Price: 7240 USD
Availability: InStock

Write a Review

Ask a Question

Suspension Type:

Air Ride

Coil-OverCoil / Leaf

$7,240.00

/kit

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

73-87 Chevy, 73-87 GMC

See more details

Key Specs

MFG. Part #	11360297
Brand	Ridetech

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Ridetech 11360297 Details

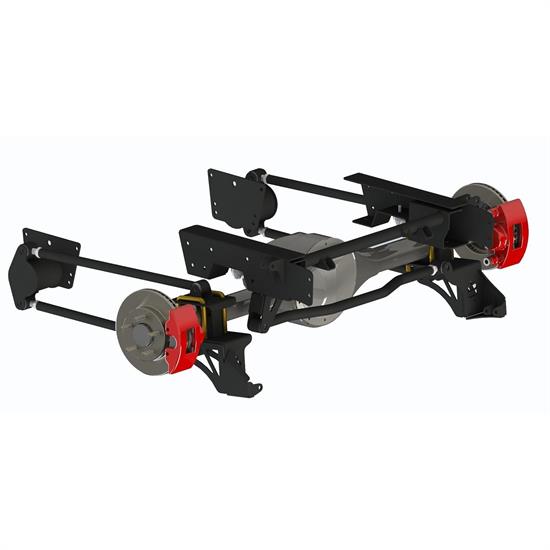

This Air Suspension System is specifically designed for the 1973-1987 Chevrolet and GMC C10 Truck and includes everything needed to create modern driveability with an ultra low show stance. The package contains front upper and lower control arms, 2.5? drop spindles, front air springs with adjustable shocks, front sway bar, rear 4 Link with C-Notces, an adjustable panhard bar and HQ Series rear Shockwaves. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension.

2.5? Drop Spindles allows a lowered stance while maintaining suspension travel. The modular design allows for variety of brake options incluing Baer, Wilwood or the stock HD brakes (1.25? wide rotors).

Upper and Lower StrongArms feature corrected ball joint angles and increased caster to improve high speed stability and steering feel. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction. They are powdercoated black and fully assembled with ball joints, bushings and cross shafts, ready for installation.

Front CoolRide setup includes HQ Series Shocks and bolt-on upper shocks mounts to allow more ground clearance and maximum suspension travel. The aluminum body shocks are a monotube design, are rebound adjustable and come with a 1,000,001 Mile Warranty.

Bolt-On Rear 4 Link System replaces the leaf springs to provide excellent ride quality, handling, traction and load capacity. It is completely bolt-on and provides mounting for the rear Shockwaves. The panhard is adjustable so you can optimize your tire clearance at the new lowered height and the mount has been located to optimize the bar length and angle for the lowered height. This helps keep the rearend centered in the truck and lowers the roll center to mimize body roll. The R-Joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack! The C-notches are included with the kit and FIT the frame rail. Compatible with all cab and bed configurations.

HQ Series Shockwaves utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the ride quality and handling the rebound knob is located at the top of the shock for under hood access. They come standard with a 1,000,0001 Mile Warranty.

Front MucleBar helps reduce body roll and includes the PosiLink endlinks that provide immediate engagement between the chassis and control arms.

To complete this Air Suspension system please choose from one of our Compressor Systems.

Charts

Installation Instructions (PDF)

Guides & Documents

Front/Rear Suspension Kits Installation Instructions (76811360297)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Ridetech 11360297 Specifications

KEY SPECS
MFG. Part #	11360297
Brand	Ridetech

GENERAL
GTIN Code	840123505859

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1973-1986 Chevy C10

1987 Chevy R10

1975-1978 GMC C15

1973-1974 GMC C15/C1500 Pickup

1979-1986 GMC C1500

1987 GMC R1500
