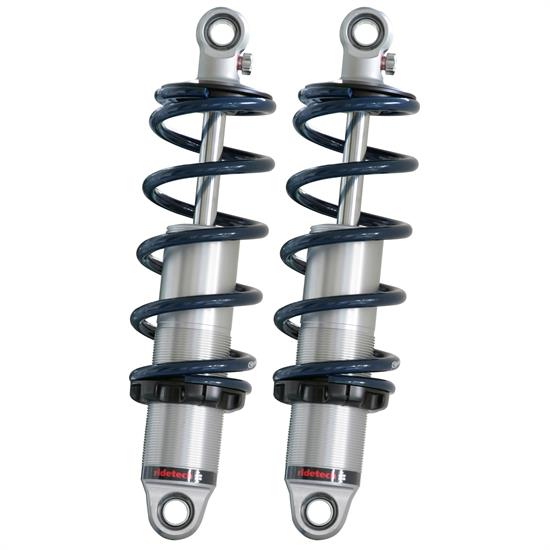

Ridetech 11333510 Coilover, HQ 1963-1972 C10, Front
Ridetech 11333510 Coilover, HQ 1963-1972 C10, Front
Ridetech

|

#76811333510

Ridetech 11333510 Coilover, HQ 1963-1972 C10, Front

$840.00

/kit

Factory Shipped


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

63-72 Chevy, 63-72 GMC, Front Position, Anodized

    See more details

    Key Specs

    PositionFront
    Shock AdjustabilitySingle Adjustable
    Shock TypeMono Tube
    Shock Body MaterialAluminum
    Upper Shock MountSpherical Rod End
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Ridetech 11333510 Details

    For use with a Ridetech Control Arms

  • This Coil-Over system is designed to provide the optimal ride quality and ease of installation for Ridetech Bolt-On 4-Link systems.

    Ridetech continues to offer today’s hot rodders the ultimate in ride quality, handling performance, technical support, and now, SIMPLICITY, with the new Ridetech Coil-Overs.

    Anodized finish protects against corrosion

  • Available in several shock valving adjustment configurations
  • CNC machined billet hardware
  • Unique pinch clamp height adjuster uses finer thread for easy adjustment
  • Includes 1/2? bore x 1?kevlar lined bearings for noise free operation

    • Ridetech 2 1/2? Coil-Over springs

    built in Indiana by HyperCo:

    High tensile premium steel CNC cold wound, less weight, more resistant to bowing, increased travel with durable powered coated finish

    Monotube gas pressure design offers superior fade free performance

  • Impact forged aluminum body provides superior strength and reliable service
  • Larger 1.834” piston provides outstanding ride quality
  • Double sealed rod guide with dust cover eliminates oil leakage
  • 5/8? chrome shock shaft

    • Ridetech Aluminum Mono Tube Shocks

    Great Performance

    Mono-tube construction sets this coil-over shock apart – it means consistent performance and great ride quality

    Ridetech 11333510 Specifications

    KEY SPECS
    MFG. Part #11333510
    BrandRidetech
    PositionFront
    Shock AdjustabilitySingle Adjustable
    Shock TypeMono Tube
    Shock Body MaterialAluminum
    Upper Shock MountSpherical Rod End
    Lower Shock MountSpherical Rod End
    Height AdjustableYes
    FinishAnodized
    GENERAL
    Shock Body TypeThreaded
    Number of Valving Selections24
    Coilover Kit IncludedYes
    Coilover Springs IncludedYes
    Bushing MaterialDelrin
    Body Diameter2"
    Sold in QuantityPair
    AdjustableYes
    Hardware IncludedYes
    Crossmember IncludedNo
    Welding RequiredNo
    Gas ChargedYes
    Mounting Bracket IncludedNo
    Suspension Height Adjustment1.0-3.0 Inch Lowered
    Spring FinishPowder Coated
    Spring ColorBlue
    NotesFor use with RideTech StrongArms.
    GTIN Code840123505545
