RideTech 11329599 Completetru Turn System, 78-88 G-Body
78-87 Buick, 78-88 Chevy, 78-87 GMC, 78-87 Oldsmobile, 78-88 Pontiac, Tubular Control Arm Style
- This item ships directly from the manufacturer. It may take an additional 5 business days for RideTech to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
TRUTURN - Muscle car Steering Components

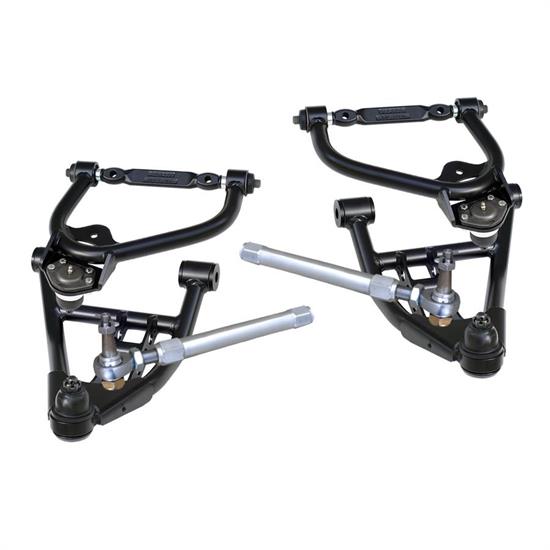

An upgraded control arm system that includes StrongArms, tall ball joints, delrin bushings, and tie rods
What will this system do?
The TruTurn system resolves bumpsteer and camber gain issues... the tires now lean INTO the turn.
- Taller upper ball joints to increase camber gain.
- Integrates with OEM spindles.
- Increased caster settings.
- Optimizes bumpsteer to under .065" through 5" of suspension travel.
- Includes upper and lower StrongArms, outer tie rods, and billet tie rod adjusters.
What says "performance" more than a set of tubular control arms! After all of the time and effort expended on your ride, you definitely can't let your stamped OEM control arms detract from all that work. Finish your suspension off with these new tubular control arm systems from RideTech. Built with all of the care and experience you have come to expect from us, these tubular control arms are a precision engineered solution for ShockWave installation, ball joint binding, and frame clearance issues that can haunt some vehicles. When you combine the performance benefits with the elegant design of these arms, there is no question.... You want these.
Development - StrongArms are developed by RideTech in Jasper, Ind. on an actual running, driving vehicle. This allows us to properly address ALL fitment and performance issues. It also allows us to document an installation, demonstrate the installation to our sales techs and dealers, and allows ongoing evaluation of the performance of the StrongArms
Design - We think the best way to design any component is to keep it simple. That is why Strong Arms are designed with as few components as possible. We have a new 4 axis tubing bender that allows precise, repeatable bends that no other machine can achieve. We can create elegant tubing bends that would otherwise require several separate welded components.
Components - We have worked closely with Moog, a major manufacturer of OEM ball joints, to ensure that the proper ball joints have been selected for the Application... a compression style unit in a compression application, a tension bal joint in a tension application. Proper poly or rubber bushings are selected based on application and the type of driving or racing that is anticipated.
Geometry - Geometry of a suspension starts with the position of the frame mounts and the height of the spindle, not the shape of the control arm. However, there are a few small things in control arm design that can make a big difference in how a vehicle drives and performs.We create extra caster potential by adjusting the fore and aft position of the ball joints. At the same time we make sure the wheel is properly positioned in the wheel-well so your new 18" wheels fit like they should!
StrongArms are optimized to allow proper camber adjustment at your new lowered ride height without using a large stack of shims.
