Ridetech 11320201 Coilover System, 78-88 GM G Body

#76811320201

Ridetech 11320201 Coilover System, 78-88 GM G Body

Name: Ridetech 11320201 Coilover System, 78-88 GM G Body
Brand: Ridetech
SKU: 76811320201
Price: 5420 USD
Availability: InStock

Write a Review

Ask a Question

$5,420.00

/kit

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Buick, Chevy, GMC, Oldsmobile, Pontiac

See more details

Key Specs

MFG. Part #	11320201
Brand	Ridetech

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Ridetech 11320201 Details

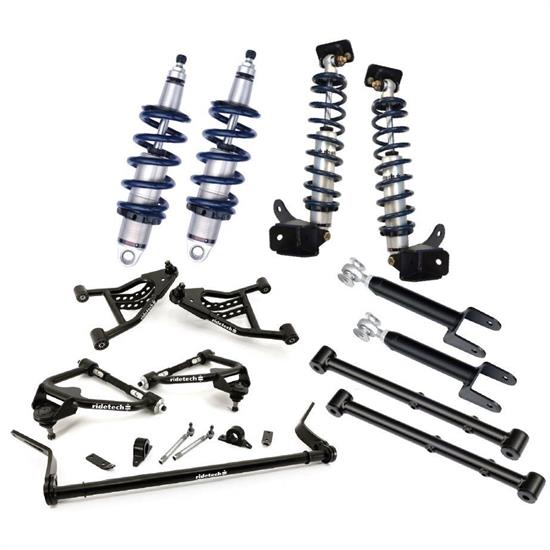

This CoilOver System is specifically designed to lower the 1978-1988 GM “G” Body Platform and includes everything needed to create modern driveability from vintage muscle. The package contains front upper and lower control arms, front MuscleBar, rear StrongArms and 4 HQ Series CoilOvers. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension. Ridetech has spent hours collecting data to find a perfect spring rate and components for your vehicle’s performance and ride quality. 1978-1988 GM “G” Body includes Monte Carlo, Cutlass, El Camino, Grand National, Grand Prix, Malibu and Regal.

Features:

Upper StrongArms feature tall ball joints to provide increased camber gain and the ball joint location has been moved back to allow for additional caster setting to improve high speed stability and steering feel. Offset slugs are also available for additional caster. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.

Lower StrongArms feature a double sheer lower mount for increased strength. We have also dropped the lower shock mount to increase suspension travel and moved the lower ball joint forward to increase caster settings while keeping the wheel centered in the wheel opening. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.

HQ Series CoilOvers utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the ride quality and handling the rebound knob is located at the top of the shock for under hood access. They come standard with a 1,000,0001 Mile Warranty. Brackets are included witht the rear coilovers for easy attachment to the frame and to the 10/12 bolt rearend. Interested in AutoCross or Road Course Racing? Consider the TQ Series CoilOvers.

Front MucleBar helps reduce body roll and creates room for wider front tires. An adjustable rate Rear MuscleBar is also included.

Rear StrongArms provide added strength to help get the power to the pavement and utilize R-Joint Technology to combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack.

UPGRADES

TQ Series Shocks- The remote reservoir triple adjustable coil-over shocks feature rebound adjustment along with dual stage (High Speed and Low Speed) compression adjustment. High speed adjustment allows tuning for impact harshness and low speed adjustment allows tuning of cornering characteristics, perfect for use on the autocross, road course and drag strip. Read More

Charts

Installation Instructions (PDF)

Guides & Documents

Front/Rear Suspension Kits Installation Instructions (76811320201)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Ridetech 11320201 Specifications

KEY SPECS
MFG. Part #	11320201
Brand	Ridetech

GENERAL
GTIN Code	840123505200

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1978-1981 Buick Century

1984-1987 Buick Grand National

1978-1987 Buick Regal

1978-1987 Chevy El Camino

1978-1983 Chevy Malibu

1978-1988 Chevy Monte Carlo

1978-1987 GMC Caballero

1978-1981 Oldsmobile Cutlass

1978-1984 Oldsmobile Cutlass Calais

1981-1983 Oldsmobile Cutlass Cruiser

1978-1987 Oldsmobile Cutlass Salon

1978-1988 Oldsmobile Cutlass Supreme

1982-1986 Pontiac Bonneville

1978-1980 Pontiac Grand Am

1978-1983 Pontiac Grand LeMans

1978-1987 Pontiac Grand Prix

1978-1981 Pontiac LeMans
