Ridetech 11300298 Air Suspension System, 67-70 Impala

#76811300298

Ridetech 11300298 Air Suspension System, 67-70 Impala

Specifically designed to fit the 1967-1070 Chevy Impala
Includes all the suspension components to get your car siting on the ground
System can be used with the OEM spindles

$5,335.00

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

67-70 Chevy

Specifically designed to fit the 1967-1070 Chevy Impala
Includes all the suspension components to get your car siting on the ground
System can be used with the OEM spindles

See more details

Key Specs

MFG. Part #	11300298
Brand	Ridetech

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Ridetech 11300298 Details

This Air Suspension System is specifically designed for the 1967-1970 Chevy “B” Body cars and includes everything needed to provide an ultra low show stance while maintaining excellent ride qualtiy and handling. The system contains front upper and lower StrongArms, front and rear MuscleBars, front HQ Series Shockwaves, rear StrongArms with Adjustable Panhard Bar, rear CoolRide and rear HQ Series shocks. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension. Ridetech has spent hours collecting data to find a perfect spring rate and components for your vehicle’s performance and ride quality.

1967-1970 GM “B” Body includes Impala, Bel Air, Biscayne and Caprice.

Features:

The Upper StrongArms feature corrected ball joint angles and the upper ball joint have been moved back to allow for additional caster setting to improve high speed stability and steering feel. They are powdercoated black and fully assembled with ball joints, bushing and cross shafts, ready for installation.

The Lower StrongArms feature a double sheer lower mount for increased strength. They are powdercoated black and fully assembled with ball joints, bushing and cross shafts, ready for installation.

HQ Series Shockwaves utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the ride quality and handling the rebound knob is located at the top of the shock for under hood access. They come standard with a 1,000,0001 Mile Warranty. Hyperco springs are used to provide a consistent spring rate that will last a lifetime.

This Front and Rear MucleBars helps reduce body roll and includes the PosiLink endlinks that provide immediate engagement between the chassis and control arms.

The Rear StrongArms provide added strength to help get the power to the pavement. The upper arm and panhard bar utilize R-Joint Technology to provide smooth operation and reduce roll bind.

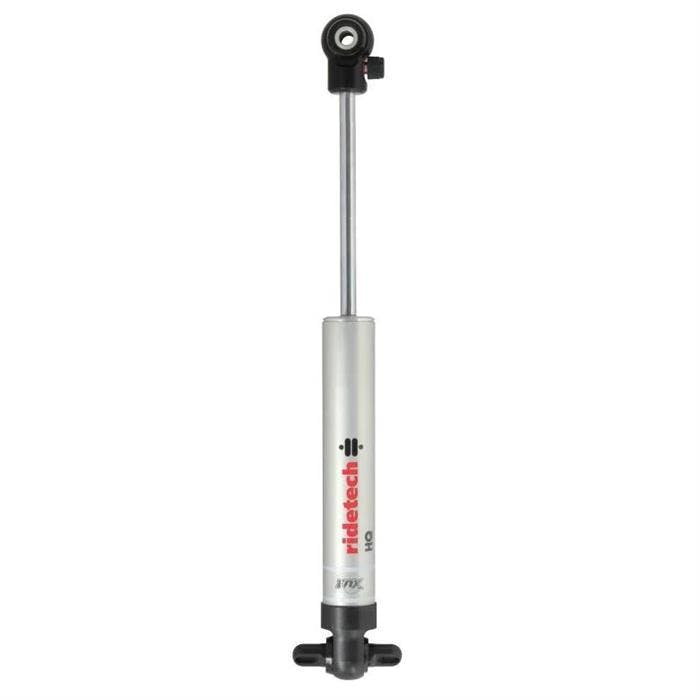

HQ Series Rear Shocks utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the ride quality and handling and come standard with a 1,000,0001 Mile Warranty.

The Rear CoolRide system simply bolts in place of the stock springs.

To complete this Air Suspension system please choose from one of our Compressor Systems.

Notes:

-Must be used with stock spindles.

-Some cars have two rear upper control arms and will need an additional StrongArm.

Charts

Installation Instructions (PDF)

Guides & Documents

Front/Rear Suspension Kits Installation Instructions (76811300298)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Ridetech 11300298 Specifications

KEY SPECS
MFG. Part #	11300298
Brand	Ridetech

GENERAL
GTIN Code	840123505118

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1967-1970 Chevy Bel Air

1967-1970 Chevy Biscayne

1969-1970 Chevy Brookwood

1967-1970 Chevy Caprice

1969-1970 Chevy Estate

1967-1970 Chevy Impala

1969-1970 Chevy Kingswood

1969-1970 Chevy Townsman
