Ridetech 11290298 Air Suspension System, 65-66 Impala

#76811290298

Ridetech 11290298 Air Suspension System, 65-66 Impala

Name: Ridetech 11290298 Air Suspension System, 65-66 Impala
Brand: Ridetech
SKU: 76811290298
Price: 5335 USD
Availability: InStock

Write a Review

Ask a Question

$5,335.00

/kit

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Bel Air, Biscayne, Caprice, Impala

See more details

Key Specs

MFG. Part #	11290298
Brand	Ridetech

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Ridetech 11290298 Details

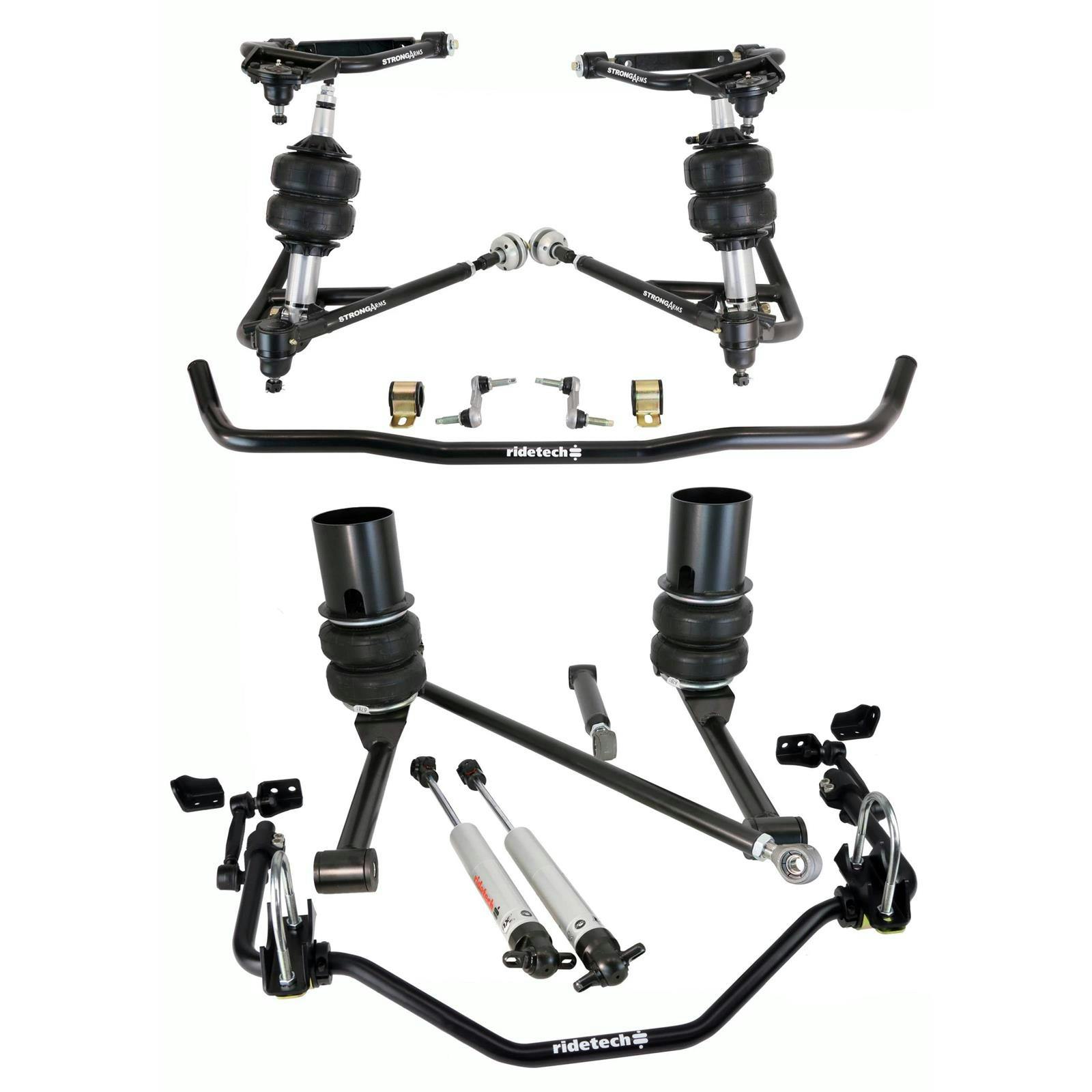

This Air Suspension kit is specifically designed for the 1965-1966 Chevy “B” Body cars and includes everything needed to provide an ultra low show stance while maintaining excellent ride quality and handling. The system contains front upper and lower StrongArms, front and rear MuscleBars, front HQ Series Shockwaves, rear StrongArms with Adjustable Panhard Bar, rear CoolRide and rear HQ Series shocks. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension. Ridetech has spent hours collecting data to find a perfect spring rate and components for your vehicle’s performance and ride quality.

1965-1965 GM “B” Body includes Impala, Bel Air, Biscayne and Caprice.

Features:

Upper StrongArms feature corrected ball joint angles and the upper ball joint have been moved back to allow for additional caster setting to improve high speed stability and steering feel. They are powder coated black and fully assembled with ball joints, bushing and cross shafts, ready for installation.

Lower StrongArms feature a double sheer lower mount for increased strength. They are powder coated black and fully assembled with ball joints, bushing and cross shafts, ready for installation.

HQ Series Shockwaves utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the ride quality and handling the rebound knob is located at the top of the shock for under hood access. They come standard with a 1,000,0001 Mile Warranty. Hyperco springs are used to provide a consistent spring rate that will last a lifetime.

Front and Rear MucleBars helps reduce body roll and includes the PosiLink end links that provide immediate engagement between the chassis and control arms.

Rear StrongArms provide added strength to help get the power to the pavement. The upper arm and panhard bar utilize R-Joint Technology to provide smooth operation and reduce roll bind.

HQ Series Rear Shocks utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the ride quality and handling and come standard with a 1,000,0001 Mile Warranty.

Rear CoolRide system simply bolts in place of the stock springs.

To complete this Air Suspension system please choose from one of our Compressor Systems.

Notes:

-Must be used with stock spindles.

-Some cars have two rear upper control arms and will need an additional StrongArm.

Charts

Installation Instructions (PDF)

Guides & Documents

Front/Rear Suspension Kits Installation Instructions (76811290298)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Ridetech 11290298 Specifications

KEY SPECS
MFG. Part #	11290298
Brand	Ridetech

GENERAL
GTIN Code	840123505071

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1965-1966 Chevy Bel Air

1965-1966 Chevy Biscayne

1966 Chevy Caprice

1965-1966 Chevy Impala
