Ridetech 11290202 1965-66 Impala Coilover System

#76811290202

Ridetech 11290202 1965-66 Impala Coilover System

Featuring front upper and lower StrongArms, front & rear sway bars, front HQ Series Coil-Overs, rear Upper and lower StrongArms with Adjustable upper and Panhard Bar, and rear HQ Series Coil-Overs
Ridetech has meticulously gathered data to determine the ideal spring rate and components for peak vehicle performance and ride comfort

$5,330.00

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Bel Air, Biscayne, Caprice, Impala, Hardware Included

Featuring front upper and lower StrongArms, front & rear sway bars, front HQ Series Coil-Overs, rear Upper and lower StrongArms with Adjustable upper and Panhard Bar, and rear HQ Series Coil-Overs
Ridetech has meticulously gathered data to determine the ideal spring rate and components for peak vehicle performance and ride comfort
Compatible with 1965-1966 Chevy "B" Body models, including Impala, Bel Air, Biscayne, and Caprice
Important Note: This system is designed for use with stock spindles.

See more details

Key Specs

MFG. Part #	11290202
Bushing Material	Polyurethane
Hardware Included	Yes
Front Coil Springs Included	Yes
Rear Coil Springs Included	Yes

See more specs

Need To Know

Truck Shipment

Truck shipments must be pre-paid with a credit card, certified check or money order

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Ridetech 11290202 Details

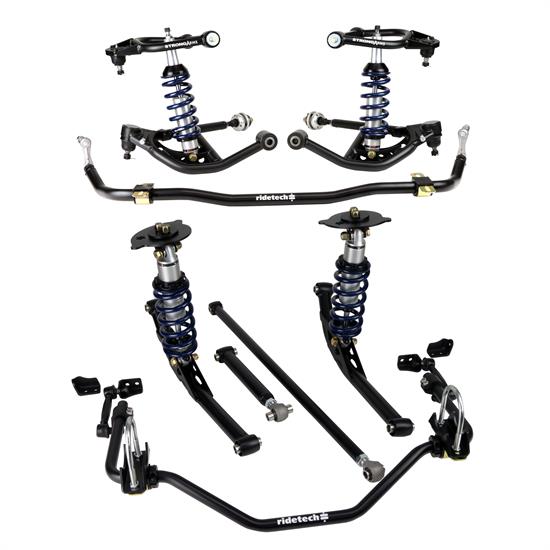

This Coil-Over System is specifically designed for the 1965-1966 Chevy “B” Body cars and includes everything needed to provide a lowered stance with dramatically improved handling and ride quality. The system contains front upper and lower StrongArms, front & rear sway bars, front HQ Series Coil-Overs, rear Upper and lower StrongArms with Adjustable upper and Panhard Bar, rear HQ Series Coil-Overs shocks. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension. Ridetech has spent hours collecting data to find a perfect spring rate and components for your vehicle’s performance and ride quality.

1965-1966 Chevy “B” Body includes Impala, Bel Air, Biscayne & Caprice.

Features:

Upper StrongArms feature corrected ball joint angles and the upper ball joint have been moved back to allow for additional caster setting to improve high speed stability and steering feel. They are powder coated satin black and fully assembled with ball joints, bushing and cross shafts, ready for installation.

Lower StrongArms feature a double sheer lower mount for increased strength. They are powder coated satin black and fully assembled with ball joints, bushing and cross shafts, ready for installation.

HQ Series Coil-Overs utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the ride quality and handling via the rebound knob is located at the top of the shock for under hood access. They come standard with a 1,000,0001 Mile Warranty. Hyperco springs are used to provide a consistent spring rate that will last a lifetime.

Front Sway Bar helps reduce body roll and creates room for wider front tires. An adjustable-rate Rear Sway Bar is also included, which is a great tool for tuning front/rear grip. Both include billet aluminum mounts (anodized black) and low friction bushings.

Rear StrongArms provide added strength to help get the power to the pavement. They utilize R-Joint Technology to provide smooth operation and reduce roll bind. The lower arms feature a double sheer mount for the coil-overs locating them in place of the stock springs, keeping the load where is belongs. The upper arm and panhard bar are adjustable, allowing the axle to be centered and pinion angle to be set.

UPGRADES

Additional Rear Upper StrongArm – Most cars were equipped with 1 rear upper trailing arm from the factory, therefore only 1 StrongArm is included in this system. However, some cars were equipped with a 2nd upper arm, requiring the purchase of a additional arm.

Notes:

System is designed for use with stock spindles.

Charts

Installation Instructions (PDF)

Guides & Documents

Front/Rear Suspension Kits Installation Instructions (76811290202)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Ridetech 11290202 Specifications

KEY SPECS
MFG. Part #	11290202
Brand	Ridetech
Bushing Material	Polyurethane
Hardware Included	Yes
Front Coil Springs Included	Yes
Rear Coil Springs Included	Yes
Rear Leaf Springs Included	No
Front Shock Struts Included	Yes
Front Shock Type	Single adjustable coil-over
Rear Shock Struts Included	Yes
Rear Shock Type	Single Adjustable Coilover
Front Sway Bar Included	Yes
Front Sway Bar Diameter	1.13"
Rear Sway Bar Included	Yes
Rear Sway Bar Diameter	1"
Tie Rod Sleeves Included	No
End Link Bushings Included	No
Rear Leaf Spring Bushings Included	No
Sway Bar Bushings Included	Yes
Upper Trailing Arms Included	Yes
Lower Trailing Arms Included	Yes
Trailing Arm Mount Braces Included	No
Panhard Bar Included	Yes
Torque Arm Included	No
Upper Control Arms Included	Yes
Lower Control Arms Included	Yes
Control Arm Style	Tubular
Control Arm Material	Steel
Control Arm Finish	Powder Coated
Subframe Connectors Included	No
Spindles Included	No
Inner Tie Rod Ends Included	No
Outer Tie Rod Ends Included	No
Drivetrain	RWD

GENERAL
GTIN Code	840123513687
Sold in Quantity	Kit
Notes	Includes one upper trailing arm. Vehicles with two upper arms will need to purchase second arm separately.
Shock Type	Mono Tube
Front Sway Bar Finish	Powder Coated
Sway Bar Type	Hollow
Rear Sway Bar Finish	Black powdercoated
Rear Sway Bar Type	Hollow
Front Strut Tower Bar Included	No
K-Member Support Brace Included	No
Rear Strut Tower Bar Included	No
Chassis Stiffener Included	No
Calipers Included	No
Rotors Included	No
Brake Pads Included	No
Brake Lines Included	No
Wheel Studs Included	No
Center Link Included	No
Bushing Color	Black

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1965-1966 Chevy Bel Air

1965-1966 Chevy Biscayne

1966 Chevy Caprice

1965-1966 Chevy Impala
