#76811263511

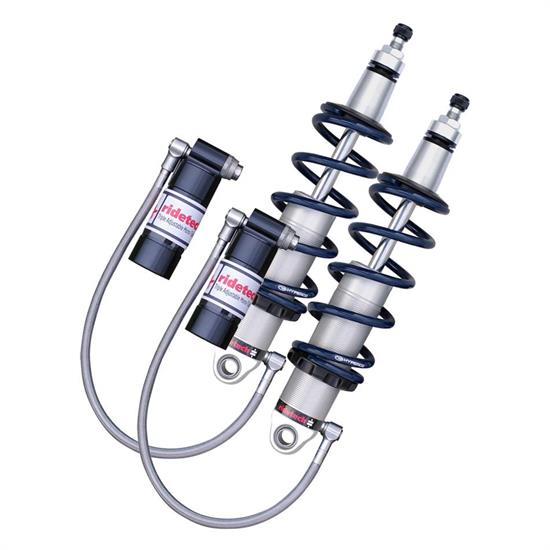

RideTech 11263511 TQ Series Front Coilovers, 68-74 Nova
$1,960.00
kit
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before June 7th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Apollo, Chevy II, Nova, Omega, Ventura, Acadian
See more details
Key Specs
| Position | Front |
| Shock Adjustability | Triple Adjustable |
| Shock Type | Mono Tube |
| Shock Body Material | Aluminum |
| Upper Shock Mount | Stud |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyRideTech 11263511 Details
RideTech 11263511 Details
TQ Series CoilOvers give your 1968-1974 Nova competition-grade handling with dual compression adjustment and rebound adjustment for precise tuning. Remote reservoirs provide consistent fluid temps in all environments, as well as easy access to compression tuning knobs. TQ “Track Quality” Series provides single rebound adjustment combined with dual stage – high speed and low speed – compression adjustment. The high speed adjustment feature allows tuning of instances that might induce a high speed excursion of the piston rod. This includes rapid changes in suspension loading such as quick directional transitions in autocross competition. The high speed adjustment also allows fine tuning for impact harshness typically found during street driving such as pot holes, speed bumps, and other road irregularities. Low speed adjustment allows tuning of ride quality, as well as the general cornering characteristics of typical road course and winding road cornering use. TQ Series CoilOvers are the ultimate choice for autocross, track days, drag racing and other ultra-high performance use.
With a large 1.834? piston, heavy duty 5/8? shaft, and impact forged bodies, TQ Series CoilOvers are built to perform and built to last. They’re backed by our exclusive 1,000,001 mile warranty. RideTech develops our shock calibrations and spring rates through thousands of cross-country test miles, on our exclusive test track and at competition events from coast to coast. We understand the suspension needs of your Nova better than any other company. This CoilOver system includes two front triple adjustable TQ Series CoilOver shocks with remote reservoirs on a 30? braided line and two Hyperco coil springs with proper spring rate.
A RideTech Suspension Specialist with contact you to discuss your setup prior to shipping.
This product requires RideTech StrongArms for proper installation.
Charts
Guides & Documents
RideTech 11263511 Specifications
RideTech 11263511 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 11263511 |
| Brand | RideTech |
| Position | Front |
| Shock Adjustability | Triple Adjustable |
| Shock Type | Mono Tube |
| Shock Body Material | Aluminum |
| Upper Shock Mount | Stud |
| Lower Shock Mount | Eyelet |
| Finish | Anodized |
| GENERAL | |
| Speedway Motors Catalog Part # | 768-11263511 |
| Shock Body Type | Threaded |
| Compressed Length Range | 10.00" to 10.99" |
| Compressed Length | 10.43" |
| Extended Length Range | 14.00" to 14.99" |
| Extended Length | 14" |
| Number of Valving Selections | 72 |
| Coilover Kit Included | Yes |
| Coilover Springs Included | Yes |
| Bushing Material | Delrin |
| Body Diameter | 2.00" |
| Sold in Quantity | Pair |
| Adjustable | Yes |
| Hardware Included | Yes |
| Crossmember Included | No |
| Welding Required | No |
| Gas Charged | Yes |
| Mounting Bracket Included | No |
| Suspension Height Adjustment | 1.0-3.0 Inch Lowered |
| Spring Finish | Powder Coated |
| Spring Color | Blue |
