Ridetech 11260298 Air Suspension System, 68-74 Nova

#76811260298

Ridetech 11260298 Air Suspension System, 68-74 Nova

Name: Ridetech 11260298 Air Suspension System, 68-74 Nova
Brand: Ridetech
SKU: 76811260298
Price: 6065 USD
Availability: InStock

Write a Review

Ask a Question

$6,065.00

/kit

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

1968 Chevy II, 69-74 Nova, 71-72 Ventura, 68-71 Acadian

See more details

Key Specs

MFG. Part #	11260298
Brand	Ridetech

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Ridetech 11260298 Details

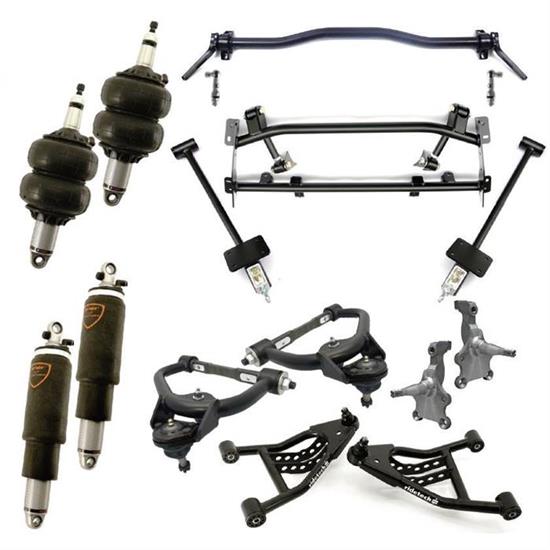

This Air Suspension System is designed to fit the 1968-1974 Nova. This system will allow you to achieve that ultra-low show stance and includes several components that will dramatically improve the suspension geometry to give your old muscle car modern drivability.

*Some 1973-1974 cars have a different shape frame rail and require kit number 11260297. See instruction manual for identification details.

Ridetech Tall Spindles will induce more negative camber gain to maximize tire contact patch during cornering. It also offers a 2” pin drop which allows for the use of longer shocks creating more suspension travel.

Upper StrongArms feature corrected ball joint angles for the tall spindles. The upper ball joint have been moved back to allow for additional caster setting to improve high-speed stability and steering feel. Offset slugs are also available for additional caster. Injection-molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.

Lower StrongArms feature a double sheer lower mount for increased strength. We have also dropped the lower shock mount to increase suspension travel and moved the lower ball joint forward to increase caster settings while keeping the wheel centered in the wheel opening. Injection-molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.

HQ Series Shockwaves utilize an impact-forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine-tuning of the ride quality and handling the rebound knob is located at the top of the shock for under-hood access. They come standard with a 1,000,0001 Mile Warranty. Interested in AutoCross or Road Course Racing? Consider the TQ Series ShockWaves which add remote reservoirs with high and low-speed compression adjustments.

Front MuscleBar Sway Bar helps reduce body roll and allows wider front tires. (new style bar adds additional clearance) Rate = 700lbs Diameter= 1.125? Wall Thickness = .219? Includes Easy to install spherical end links with barrel lock nuts

Bolt On 4-Link greatly improves traction, handling, and ride quality. Installation does not require any major modifications to the floor pan and requires only minimal welding to the axle tube. Works with mini-tubs. The R-Joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack!

*** Control system not included. To complete this Air Suspension system, please choose from one of our Control Systems.

UPGRADES

TQ Series Shocks- The remote reservoir triple adjustable coil-over shocks feature rebound adjustment and dual-stage (High Speed and Low Speed) compression adjustment. High-speed adjustment allows tuning for impact harshness, and low-speed adjustment allows tuning of cornering characteristics, perfect for use on the autocross, road course and drag strip. Read More

TruTURN System- The early Camaro/Nova frontends have very poor suspension geometry…the tires lean outward around turns, the bump steer is bad, and there is little room to run a wide wheel because of the oem steering arm interference with the inside of the wheel. The Tru Turn system resolves ALL these issues…the tires now lean INTO the turn, the bump steer is UNDER .050? through 5? of suspension travel, and you now have clearance to run up to a 10? wide wheel with a 275mm tire!

*Some 1973-1974 cars have a different shape frame rail and require kit number 11260297. See instruction manual for identification details.

Charts

Installation Instructions (PDF)

Guides & Documents

Front/Rear Suspension Kits Installation Instructions (76811260298)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Ridetech 11260298 Specifications

KEY SPECS
MFG. Part #	11260298
Brand	Ridetech

GENERAL
GTIN Code	840123504760

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1968 Chevy Chevy II

1969-1974 Chevy Nova

1968-1971 Pontiac Acadian

1971-1972 Pontiac Ventura
