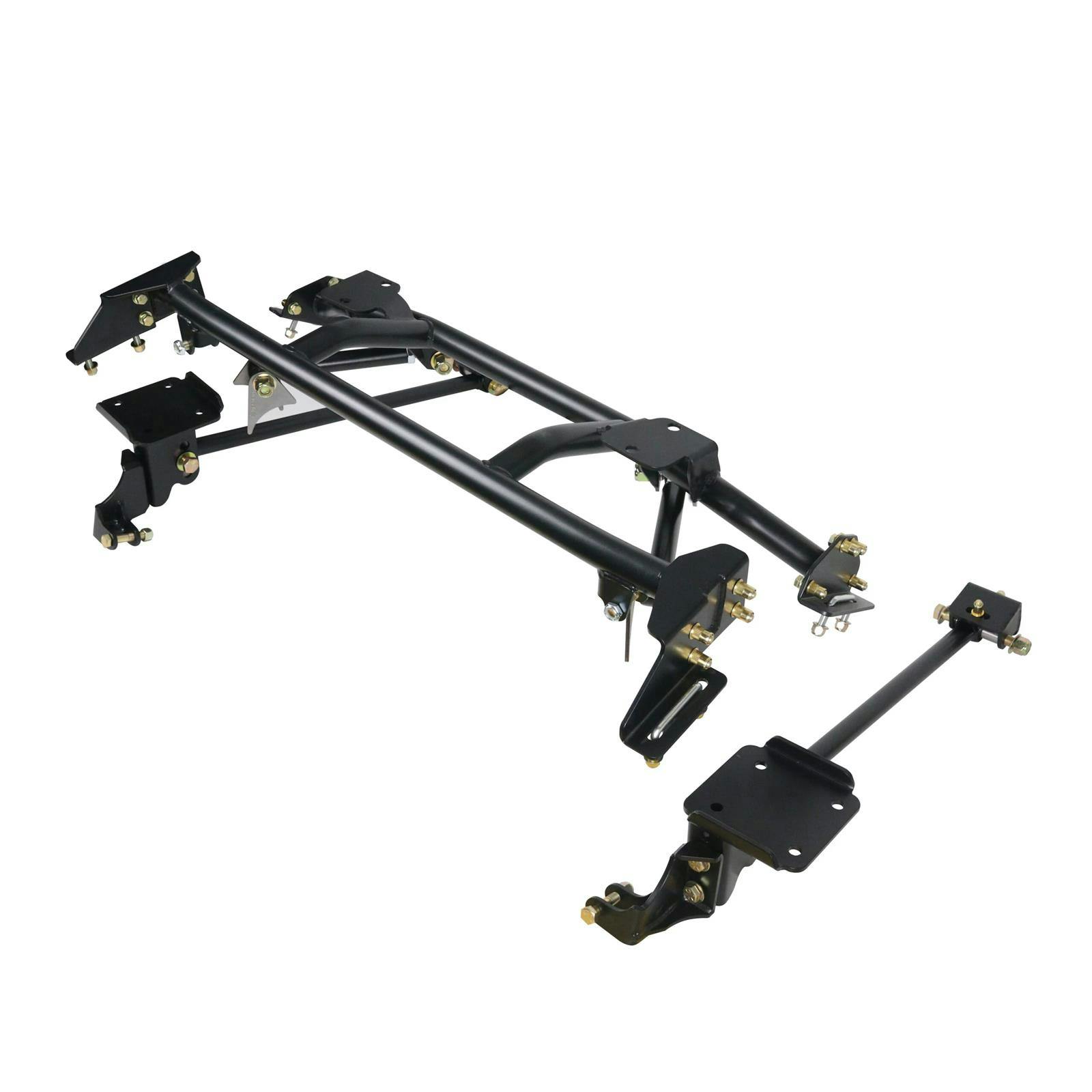

RideTech 11257199 1962-67 Nova Rear Bolt On 4-Link, One End Adj

#76811257199

RideTech 11257199 1962-67 Nova Rear Bolt On 4-Link, One End Adj

Greatly improves traction, handling, and ride quality.
Suspension geometry improvements include optimized roll center and adjustable anti-squat (41% – 109%).
The R-Joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack!

$1,995.00

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Solid Axle Rear Suspension Type, Bolt-On

Greatly improves traction, handling, and ride quality.
Suspension geometry improvements include optimized roll center and adjustable anti-squat (41% – 109%).
The R-Joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack!
Installation does not require any major modifications to the floor pan and requires only minimal welding to the axle tube.
Front lower bar mount reinforces leaf spring bucket and integrates with Ridetech subframe connector

See more details

Key Specs

MFG. Part #	11257199
Rear Suspension Type	Solid Axle
Trailing Arm Style	Parallel 4-Link
Suspension Kit Type	Conversion
Suspension Height Adjustment	2 Inch Lowered

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

RideTech 11257199 Details

The Ridetech Bolt-On 4-Link installs onto the oem leaf spring mounts of your prized musclecar… no cutting, no fabrication, just four small tabs to weld to the axle for your upper bars. The ride height of your car is typically lowered by approximately 2”. The ride quality is dramatically improved over stock… instead of a wallowing soft ride you’ll experience a crisp, controlled ride quality that will inspire more confidence for performance driving.

The area of largest improvement is the handling and cornering performance. The system eliminates the OEM leaf spring and replaces them with a 4 link rear suspension. The 4 link bars offer more precise positioning of the rear axle to eliminate flexing and increase stability through the corners. When combined with a ShockWave or a Ridetech Coil-Over front suspension kit your classic musclecar can now enjoy the benefits of modern handling and ride quality technology. The patented R-Joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack!

If you want your classic muscle car to ride and drive like a modern performance car, the Bolt-On 4-Link system is the perfect solution!

We wouldn’t expect you to bolt on any suspension component that we haven’t thoroughly tested. We regularly use our cars in a wide range of performance driving environments, as well as plain ol’ highway time. Our 4-Link systems have proven time and time again to provide not only ground shaking traction, but a great highway ride as well.

Features:

Greatly improves traction, handling, and ride quality.

Suspension geometry improvements include optimized roll center and adjustable anti-squat (41% – 109%).

The R-Joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack!

Installation does not require any major modifications to the floor pan and requires only minimal welding to the axle tube.

Front lower bar mount reinforces leaf spring bucket and integrates with Ridetech subframe connector

Upper cradle bridges the frame rails to create attachment points for the upper 4 link bars and the shocks. Strong bolt-in installation using square U-bolts and 3/8? riv-nuts (tool included)

Compatible with mini-tubs

Fit’s 2 door, 4 door and Wagon

Options:

Double Adjustable Rods ends: Adding this option gives you the ability to adjust you lower bar length without removing bar end nuts and bolts. Simply loosen the jam nuts and turn.

Shock Series: HQ Series features 24 positions of rebound adjustment. The TQ Series adds remote reservoirs allowing high and low speed compression adjustments, great for dedicated track cars. Click Here to learn more.

Charts

Installation Instructions (PDF)

Guides & Documents

Rear Suspension Kits Installation Instructions (76811257199)

CA Prop 65

RideTech 11257199 Specifications

KEY SPECS
MFG. Part #	11257199
Brand	RideTech
Rear Suspension Type	Solid Axle
Trailing Arm Style	Parallel 4-Link
Suspension Kit Type	Conversion
Suspension Height Adjustment	2 Inch Lowered
Rear Coil Springs Included	No
Spring Type	Not Included
Shocks Included	No
Bolt-On	Yes
Axle Housing Included	No
Rear Leaf Springs Included	No
Rear Leaf Spring Bushings Included	No
Lower Trailing Arms Included	Yes
Upper Trailing Arms Included	Yes
Hardware Included	Yes
Air Springs Included	No
Frame Brackets Included	Yes
Welding Required	Yes
Rear Sway Bar Included	No
End Link Bushings Included	No
Sway Bar Bushings Included	No
Panhard Bar Included	No
Torque Arm Included	No
Upper Control Arms Included	No
Lower Control Arms Included	No
Rear Strut Tower Bar Included	No
Calipers Included	No
Rotors Included	No
Brake Pads Included	No
Brake Lines Included	No
Wheel Studs Included	No
Crossmember Included	No

GENERAL
Sold in Quantity	Kit
GTIN Code	840123513533

Ratings & Reviews

Be the first to write a review.

Fitment

1962-1967 Chevy Chevy II

1962-1967 Pontiac Acadian
