Ridetech 11230201 Coilover System, 64-67 GM A Body

#76811230201

Ridetech 11230201 Coilover System, 64-67 GM A Body

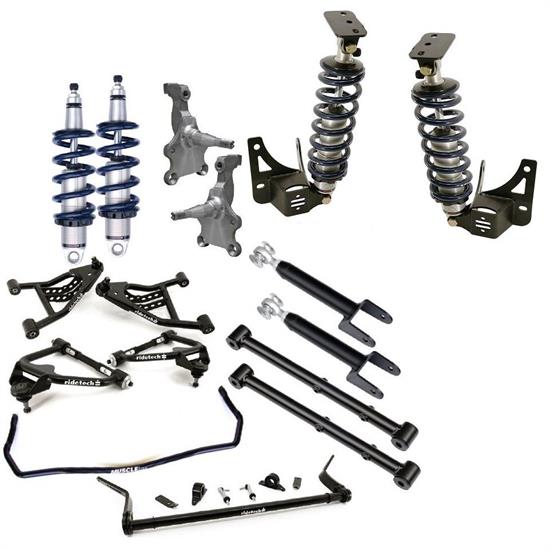

Offers a blend of modern drivability and vintage muscle performance with a complete package that includes front upper and lower control arms, tall spindles, front & rear sway bars, rear StrongArms, and 4 HQ Series Coil-Overs

$5,645.00

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Buick, Chevy, Oldsmobile, Pontiac, Hardware Included

Offers a blend of modern drivability and vintage muscle performance with a complete package that includes front upper and lower control arms, tall spindles, front & rear sway bars, rear StrongArms, and 4 HQ Series Coil-Overs
The advantage of a complete suspension system is the elimination of guesswork, as Ridetech has meticulously researched and tested to achieve optimal spring rates and components for superior vehicle performance and ride quality
The system is compatible with various GM A-Body models, including Chevelle, Cutlass, GTO, Malibu, and more
Tall "Pin" Spindles optimize cornering performance and offer a 2" drop for longer shock travel, remaining compatible with stock disc brake spindles and various brake kits
The package includes Upper and Lower StrongArms with enhanced geometry, HQ Series Coil-Overs with adjustable ride quality, front and rear sway bars, and Rear StrongArms with R-Joint Technology for improved power delivery and handling

See more details

Key Specs

MFG. Part #	11230201
Bushing Material	Delrin
Hardware Included	Yes
Front Coil Springs Included	Yes
Rear Coil Springs Included	Yes

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Ridetech 11230201 Details

This Coil-Over System is specifically designed for the 1964-1967 GM A-Body Platform and includes everything needed to create modern drivability from vintage muscle. The package contains front upper and lower control arms, tall spindles, front & rear sway bars, rear StrongArms and 4 HQ Series Coil-Overs. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension. Ridetech has spent hours collecting data to find a perfect spring rate and components for your vehicle’s performance and ride quality. 1964-1967 GM A-Body includes Chevelle, Cutlass, El Camino, F85, GTO, LeMans, Malibu, Skylark, Special, Sportwagon, Tempest and Vista Cruiser.

Tall “Pin” Spindles will induce more negative camber gain to maximize tire contact patch during cornering. It also offers a 2” drop which allows for the use of longer shocks creating more suspension travel. Compatible with all brake kits designed to fit the stock disc brake spindle.

Optional “Hub” Spindles offer the same geometry improvements as the pin spindle but add the performance and simplicity of late model Corvette hubs and brakes. Uses C5/C6/C7 Corvette hubs for maximum strength, consistent braking and reduced maintenance. (Hubs not included). Compatible with C5/C6 Corvette brake systems, OE and aftermarket (caliper brackets included).

Upper StrongArms feature corrected ball joint angles for the tall spindles. The upper ball joints have been moved back to allow for additional caster setting to improve high speed stability and steering feel. Offset slugs are also available for additional caster. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.

Lower StrongArms feature a double sheer lower mount for increased strength. We have also dropped the lower shock mount to increase suspension travel and moved the lower ball joint forward to increase caster settings while keeping the wheel centered in the wheel opening. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.

HQ Series Coil-Overs utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the ride quality and handling via the rebound knob, located at the top of the shock for under hood access. They come standard with a 1,000,0001 Mile Warranty. Brackets are included with the rear coil-overs for easy attachment to the frame and to the 10/12 bolt rearend or Currie 9?. Brackets for a Moser rearend are also available.

Front Sway Bar helps reduce body roll and creates room for wider front tires. An adjustable-rate Rear Sway Bar is also included, which is a great tool for tuning front/rear grip. Both include billet aluminum mounts (anodized black) and low friction bushings.

Rear StrongArms provide added strength to help get the power to the pavement and utilize R-Joint Technology to combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack.

Charts

Installation Instructions (PDF)

Guides & Documents

Front/Rear Suspension Kits Installation Instructions (76811230201)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Ridetech 11230201 Specifications

KEY SPECS
MFG. Part #	11230201
Brand	Ridetech
Bushing Material	Delrin
Hardware Included	Yes
Front Coil Springs Included	Yes
Rear Coil Springs Included	Yes
Rear Leaf Springs Included	No
Front Sway Bar Included	Yes
Front Sway Bar Diameter	1.50"
Rear Sway Bar Included	Yes
Rear Sway Bar Diameter	1"
Tie Rod Sleeves Included	No
End Link Bushings Included	Yes
Rear Leaf Spring Bushings Included	No
Sway Bar Bushings Included	Yes
Upper Trailing Arms Included	Yes
Lower Trailing Arms Included	Yes
Trailing Arm Mount Braces Included	No
Panhard Bar Included	No
Torque Arm Included	No
Upper Control Arms Included	Yes
Lower Control Arms Included	Yes
Control Arm Style	Tubular
Control Arm Material	Steel
Subframe Connectors Included	No
Spindles Included	Yes
Inner Tie Rod Ends Included	No
Outer Tie Rod Ends Included	No

GENERAL
GTIN Code	840123504487
Sold in Quantity	Kit
Notes	Springs rates are 850 Ibs. front and 225 Ibs. rear.
Sway Bar Type	Modular
Rear Sway Bar Type	Hollow
Front Strut Tower Bar Included	No
K-Member Support Brace Included	No
Rear Strut Tower Bar Included	No
Chassis Stiffener Included	No
Calipers Included	No
Rotors Included	No
Brake Pads Included	No
Brake Lines Included	No
Wheel Studs Included	No
Center Link Included	No
Bushing Color	Black

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1965-1967 Buick Gran Sport

1964-1967 Buick Skylark

1964-1967 Buick Special

1964-1967 Buick Sportwagon

1964-1967 Chevy Chevelle

1964-1967 Chevy El Camino

1964-1967 Chevy Malibu

1964-1967 Oldsmobile 442

1964-1967 Oldsmobile Cutlass

1967 Oldsmobile Cutlass Supreme

1964-1967 Oldsmobile F85

1964-1967 Oldsmobile Vista Cruiser

1964-1967 Pontiac Beaumont

1964-1967 Pontiac GTO

1964-1967 Pontiac LeMans

1964-1967 Pontiac Tempest
