RideTech 11040297 Air Suspension System for 1958 Impala
RideTech 11040297 Air Suspension System for 1958 Impala

RideTech 11040297 Air Suspension System for 1958 Impala

1958 Chevy Impala, Delrin Bushing Material, Hardware Included, Front Shock Struts Included

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
RideTech 11040297 Air Suspension System for 1958 Impala
RideTech 11040297 Air Suspension System for 1958 Impala
RideTech 11040297 Air Suspension System for 1958 Impala
RideTech 11040297 Air Suspension System for 1958 Impala
RideTech 11040297 Air Suspension System for 1958 Impala
RideTech 11040297 Air Suspension System for 1958 Impala
RideTech 11040297 Air Suspension System for 1958 Impala
RideTech 11040297 Air Suspension System for 1958 Impala
RideTech 11040297 Air Suspension System for 1958 Impala
RideTech 11040297 Air Suspension System for 1958 Impala
RideTech 11040297 Air Suspension System for 1958 Impala
X
RideTech 11040297 Air Suspension System for 1958 Impala
RideTech 11040297 Air Suspension System for 1958 Impala
RideTech 11040297 Air Suspension System for 1958 Impala
RideTech 11040297 Air Suspension System for 1958 Impala
RideTech 11040297 Air Suspension System for 1958 Impala
RideTech 11040297 Air Suspension System for 1958 Impala
RideTech 11040297 Air Suspension System for 1958 Impala
RideTech 11040297 Air Suspension System for 1958 Impala
RideTech 11040297 Air Suspension System for 1958 Impala
Zoomed In Image
We estimate this item will ship on or before April 16th.
Part # 76811040297
$4,175.00
kit
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

MFG. Part #:
11040297
Sold in Quantity:
Kit
Notes:
Requires 1959-64 spindles and disc brakes.
Bushing Material:
Delrin
Hardware Included:
Yes
Front Coil Springs Included:
No
Rear Coil Springs Included:
No
Rear Leaf Springs Included:
No
Front Shock Struts Included:
Yes
Front Shock Type:
Gas-charged Adjustable Monotube
Rear Shock Struts Included:
Yes
Rear Shock Type:
Gas-charged Adjustable Monotube
Front Sway Bar Included:
Yes
Front Sway Bar Finish:
Black powdercoated
Front Sway Bar Type:
Hollow
Front Sway Bar Diameter:
1.125"
Rear Sway Bar Included:
Yes
Rear Sway Bar Finish:
Black powdercoated
Rear Sway Bar Type:
Hollow
Rear Sway Bar Diameter:
1"
Tie Rod Sleeves Included:
No
End Link Bushings Included:
No
Rear Leaf Spring Bushings Included:
No
Sway Bar Bushings Included:
Yes
Upper Trailing Arms Included:
Yes
Lower Trailing Arms Included:
Yes
Trailing Arm Mount Braces Included:
No
Panhard Bar Included:
No
Torque Arm Included:
No
Upper Control Arms Included:
Yes
Lower Control Arms Included:
Yes
Control Arm Style:
Tubular
Control Arm Material:
Steel
Control Arm Finish:
Black powdercoated
Front Strut Tower Bar Included:
No
K-Member Support Brace Included:
No
Rear Strut Tower Bar Included:
No
Subframe Connectors Included:
No
Chassis Stiffener Included:
No
Calipers Included:
No
Rotors Included:
No
Brake Pads Included:
No
Brake Lines Included:
No
Wheel Studs Included:
No
Center Link Included:
No
Spindles Included:
No
Inner Tie Rod Ends Included:
No
Outer Tie Rod Ends Included:
No
Bushing Color:
Black

Info

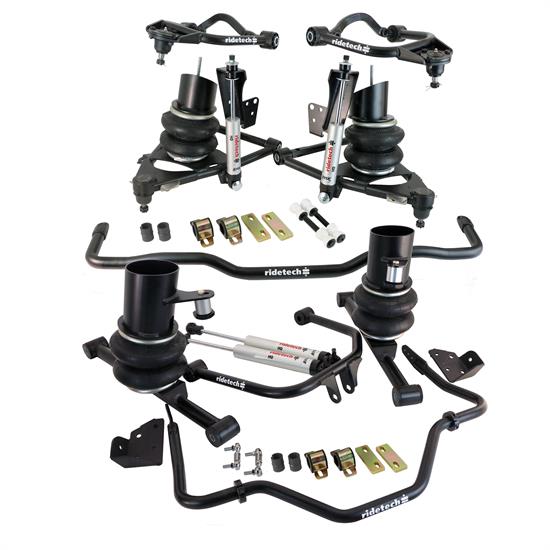

This Air Suspension System is specifically designed for the 1958 Chevy "B" Body cars and includes everything needed to provide an ultra-low show stance while maintaining excellent ride quality and handling.  The system contains front tubular upper and lower control arms, front & rear sway bars, front and rear HQ Series shocks, front and rear air spring w/ brackets, rear tubular trailing arms. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension. Ridetech has spent hours collecting data to find the perfect components to achieve maximum vehicle performance and ride quality.

1958 Chevrolet "B" Body includes Impala, Del Ray, Bel Air, Biscayne, Brookwood, Nomad.

Features:

The Upper StrongArms feature corrected ball joint angles and the upper ball joint have been moved back to allow for additional caster setting to improve high-speed stability and steering feel.  They are powder coated satin black and fully assembled with ball joints, injection-molded Delrin bushings, and cross shafts; ready for installation.

The Lower StrongArms feature a double sheer lower mount for increased strength.  They are powder coated satin black and fully assembled with ball joints, injection-molded Delrin bushings, and cross shafts; ready for installation.

Front and Rear CoolRide systems utilize Firestone air springs and application-specific bolt-on mounting brackets.

HQ Series Shocks utilize an aluminum body and Monotube design to deliver excellent ride quality and handling.     They allow fine-tuning of the rebound dampening to adjust ride quality and handling. They come standard with a 1,000,0001 Mile Warranty.   Bolt-on brackets are included to relocate the front shocks to the rear side of the lower StrongArms.  The rear shocks simply bolt in place of the factory shocks.

The Rear StrongArms provide added strength to help get the power to the pavement.   They utilize R-Joint Technology to provide smooth operation and reduce roll bind.  The lower arms feature the air spring bracket for which bolts in place of the stock coil springs, keeping the load where it belongs.  The tubular upper arm is specific to the 1958 model year and utilizes injection molded Delrin bushings.

Front & Rear MucleBars are included to replace the tiny factory sway bars (Most of these cars did not even have factory sway bars.)  They feature significantly higher rates, performance end links, and Delrin lined bushings.

Notes

  • Must be used with 1959-1964 stock spindles & disc brakes.
  • If utilizing the stock style power steering (with the assist cylinder), an additional bracket will be required.  Part # 11059121
  • To complete this Air Suspension system please choose from one of our Compressor Systems.
