RideTech 11040202 Coilover System for 1958 Impala
1958 Chevy Impala, Delrin Bushing Material, Hardware Included, Front Coil Springs Included

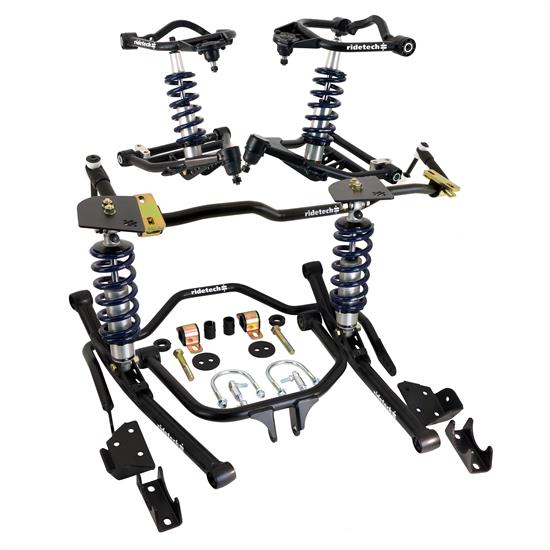

This CoilOver System is specifically designed for the 1958 Chevy "B" Body cars and includes everything needed to provide a lowered stance with dramatically improved handling and ride quality. The system contains front tubular upper and lower control arms, front & rear sway bars, front and rear HQ Series CoilOvers & tubular rear trailing arms. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension. Ridetech has spent hours collecting data to find a perfect spring rate and components for your vehicle's performance and ride quality.
1958 Chevrolet "B" Body includes Impala, Del Ray, Bel Air, Biscayne, Brookwood, Nomad.
The Upper StrongArms feature corrected ball joint angles and the upper ball joint have been moved back to allow for additional caster setting to improve high-speed stability and steering feel. They are powder coated satin black and fully assembled with ball joints, injection-molded Delrin bushings, and cross shafts; ready for installation.
The Lower StrongArms feature a double sheer lower mount for increased strength. They are powder coated satin black and fully assembled with ball joints, injection-molded Delrin bushings, and cross shafts; ready for installation.
HQ Series CoilOvers utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine-tuning of the ride quality and handling the rebound knob is located at the top of the shock for under hood access. They come standard with a 1,000,0001 Mile Warranty. Hyperco springs are used to provide a consistent spring rate that will last a lifetime.
The Rear StrongArms provide added strength to help get the power to the pavement. They utilize R-Joint Technology to provide smooth operation and reduce roll bind. The lower arms feature a double sheer mount for the coilovers locating them in place of the stock springs, keeping the load where it belongs. The tubular upper arm is specific to the 1958 model year and utilizes injection molded Delrin bushings.
The Front & Rear MucleBars greatly reduce body roll. They feature significantly higher rates, performance end links, and Delrin lined bushings.
- Must be used with 1959-1964 stock spindles & disc brakes.
- If utilizing the stock style power steering (with the assist cylinder), an additional bracket will be required. Part # 11059121
- This item ships directly from the manufacturer. It may take an additional 5 business days for RideTech to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
