Product Summary

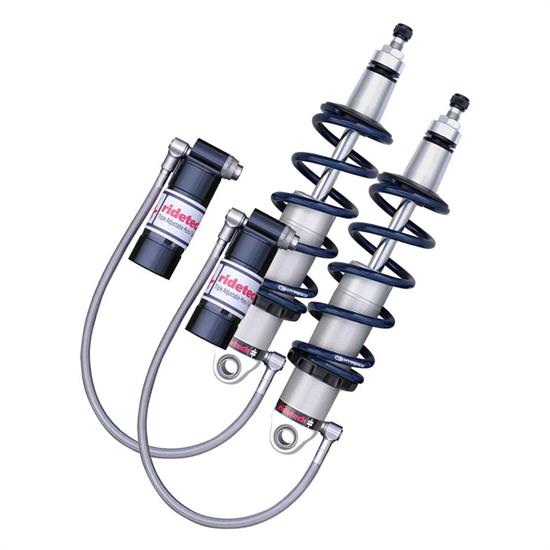

55-57 Chevy, Front Position, Mono Tube Shock Type

    Key Specs

    Shock AdjustabilityTriple Adjustable
    Shock TypeMono Tube
    Shock Body MaterialAluminum
    Upper Shock MountStud

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    RideTech 11013511 Details

    TQ Series CoilOvers give your 1955-1957 Chevy competition-grade handling with dual compression adjustment and rebound adjustment for precise tuning. Remote reservoirs provide consistent fluid temps in all environments as well as easier access to low and high speed compression tuning knobs. TQ “Track Quality” Series provides a single rebound adjustment combined with dual stage – high speed and low speed – compression adjustment. The high speed adjustment feature allows tuning of instances that might induce a high speed excursion of the piston rod including rapid changes in suspension loading. Examples include quick directional transitions in autocross competition as well as impact harshness typically found during street driving such as pot holes, speed bumps, and other road irregularities. Low speed adjustment allows tuning of ride quality, as well as the general cornering characteristics of typical road course and winding road use. TQ Series CoilOvers are the ultimate choice for autocross, track days, drag racing and other extreme use.

    With a large 1.834? piston, heavy duty 5/8? shaft, and impact forged bodies, TQ Series CoilOvers are built to perform and built to last. They’re backed by our exclusive 1,000,001 mile warranty. RideTech develops our shock calibrations and spring rates through thousands of cross-country test miles, on our exclusive test track and at competition events from coast to coast. We understand the suspension needs of your Tri-Five better than any other company. This CoilOver system includes two triple adjustable TQ Series CoilOver shocks with remote reservoirs on a 30? braided line and two Hyperco coil springs with proper spring rate. A RideTech Suspension Specialist with contact you to discuss your setup prior to shipping.


    RideTech 11013511 Specifications

    MFG. Part #11013511
    Shock AdjustabilityTriple Adjustable
    Shock TypeMono Tube
    Shock Body MaterialAluminum
    Upper Shock MountStud
    Lower Shock MountEyelet
    Speedway Motors Catalog Part #768-11013511
    Shock Body TypeThreaded
    Compressed Length Range10.00" to 10.99"
    Compressed Length10.43"
    Extended Length Range14.00" to 14.99"
    Extended Length14.5"
    Number of Valving Selections72
    Coilover Kit IncludedYes
    Coilover Springs IncludedYes
    Bushing MaterialDelrin
    Body Diameter2.00"
    Sold in QuantityPair
    Hardware IncludedYes
    Crossmember IncludedNo
    Welding RequiredNo
    Gas ChargedYes
    Mounting Bracket IncludedNo
    Suspension Height Adjustment1.0-3.0 Inch Lowered
    Spring FinishPowder Coated
    Spring ColorBlue
