RapidAir M3810 Maxline Air Hose Outlet Connector Kit, 1/2 Inch Hose
RapidAir M3810 Maxline Air Hose Outlet Connector Kit, 1/2 Inch Hose

RapidAir M3810 Maxline Air Hose Outlet Connector Kit, 1/2 Inch Hose

.50" Tube I.D., 1/4" NPT Outlet Fitting, 175 lbs Pressure Rating

0 Reviews | 0 Answered Questions
In Stock
Can Ship FREE
RapidAir M3810 Maxline Air Hose Outlet Connector Kit, 1/2 Inch Hose
RapidAir M3810 Maxline Air Hose Outlet Connector Kit, 1/2 Inch Hose
Zoomed In Image
Part # 9103810
Save 7%
$25.99
$27.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

GTIN Code:
094084381001
MFG. Part #:
M3810
Tube I.D.:
.50"
Outlet Fitting:
1/4" NPT
Pressure Rating:
175 lbs
Sold in Quantity:
Each

Info

These Maxline industrial compressed air piping systems are fast and easy to install. They feature leakproof, corrosion resistant fittings that are built to last.  These air hose connectors work great for your workshop with applications from automotive to woodworking. These kits allow you to put air lines exactly where you want them, just like electrical outlets. No more dragging hoses across the shop to your work area.  No special tools required, simply push the flexible tubing into the fittings and put up your system in an afternoon.

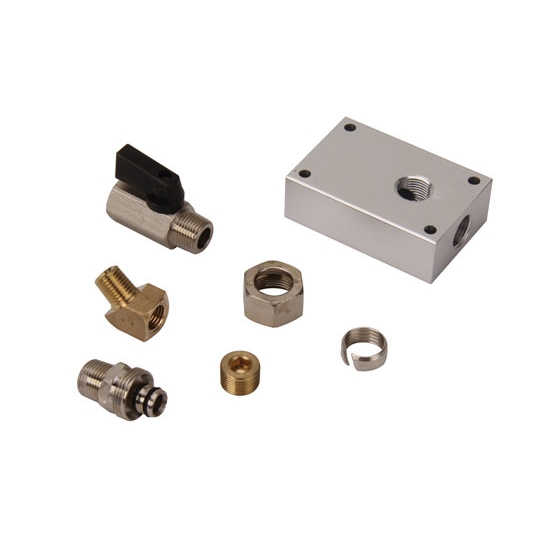

Kit Includes:

  • (1) Aluminum Outlet Block
  • (1) 3/8" NPT Straight
  • (1) Sleeve seal
  • (1) Hand Valve
  • (1) Connector nut
  • (1) 1/4" NPT Brass 45 degree
  • (1) 3/8" NPT Brass Plug

Note: Quick coupler sold separately

Outlet Kit Contents (GIF)

Maxline Brochure (PDF)

Maxline Installation Instructions (PDF)

RapidAir Maxline Warranty (PDF)

Notes

Compressed Air Outlet

  • The starting point for the compressed air system.
  • Attach the supplied 3/8" npt fitting to your air compressor regulator, jumper a piece of nylon tubing to the manifold and begin your system.
  • Nickel plated brass
  • Double o-ring design
  • Split ring allows disassembly
  • No expensive tools required
  • Operating pressure: 175psi at 70° F / 140psi at 140° F
  • Meets OSHA guidelines
  • Temperature range: -40° F to 140° F
  • Compatible with common compressor oils

Safety tips when working with pressurized air systems:

  • Regulate system pressure to a maximum of 175psi
  • Slowly turn off compressor when not in use
  • Check local building codes before installation
  • Always wear eye protection when using compressed air

Note: Pipe Sealant - Use a brushable pipe sealant for all pipe thread connections. This provides lubrication and prevents the threads from galling in the aluminum blocks. DO NOT use Teflon tape.
