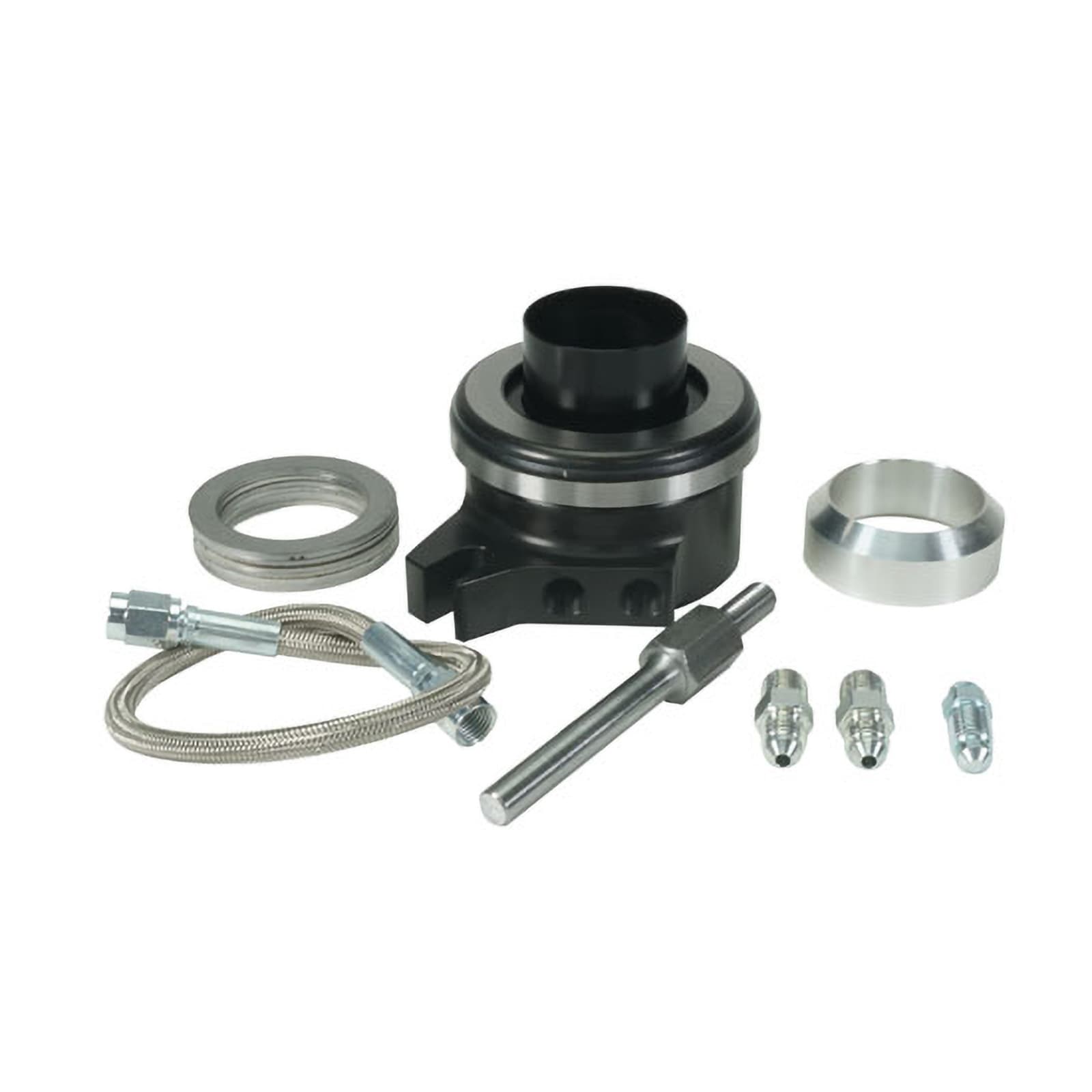

Ram Street Stock Hydraulic Throwout Bearing - Ford T-5

#60578130

Ram Street Stock Hydraulic Throwout Bearing - Ford T-5

Name: Ram Street Stock Hydraulic Throwout Bearing - Ford T-5
Brand: Ram Clutches
SKU: 60578130
Price: 255 USD
Availability: InStock
Rating: 4.9 (10 reviews)

10 Reviews

2 Questions

Designed to work with 10-1/2" street stock type clutches
Comes with a new special machined front bearing retainer for the release bearing to ride on
Overall length is 4.875" and the shaft measures 3-5/8"

$255.00

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

T5, Steel

Designed to work with 10-1/2" street stock type clutches
Comes with a new special machined front bearing retainer for the release bearing to ride on
Overall length is 4.875" and the shaft measures 3-5/8"
Features a steel construction with a natural finish
Kits contain the bearing, bleeder hose assembly, shims and mounting hardware

See more details

Key Specs

MFG. Part #	78130
Brand	Ram Clutches

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Installation Tips

This kit includes a replacement front bearing support for the T-5 transmission. The support has a machined "recess" or "register" that the race for this transmissions' tapered front bearing must be installed into. The bearing race is about 2.5" OD and about 5/8" deep. This support also has the necessary "smooth" area for the t/o bearing to slide back-and-forth on.

The front bearing support is in addition to the hydraulic throwout bearing, bleeder hose, and other components within each kit.

CAUTION: Please follow all installation instructions regarding installation and setup. Incorrect setup height will cause undue stress on the o-rings from being over travelled and may lead to a leak in the system. ONLY use Teflon tape to install the fittings or fluid leakage will occur. Please see videos for complete setup information.

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Ram Clutches 78130 Details

Ram hydraulic bearings ease installations in vehicles with chassis constraints, and offer a smooth, lighter pedal effort.

Kits contain the bearing, bleeder hose assembly, shims and mounting hardware. A 3/4 inch bore master cylinder and AN 3 feed line are required for this installation. For 10-1/2" street stock type clutches.

This bearing comes with a new special machined front bearing retainer for the release bearing to ride on.

NOTE: When using with world class T-5 case, a front bearing retainer sleeve # 908 will be required. All other world class T-5 retainers/sleeves of a different number will require the use of Ram Clutch kit part # 78136.

Learn more about hydraulic release bearings and how to properly install them by reading our tech article.How to Install a Hydraulic Throwout Bearing.

Clutches, Flywheels and release bearings are STRICTLY FACTORY WARRANTY ONLY. Customer must return the unit to RAM for evaluation and inspection.

For a full list of warranty information please see our warranty information here

Charts

Terms and Policy (PDF)

Specs

Overall length 3.045

Bearing O.D. 2.87

Sleeve I.D. 1.15

Sleeve O.D. 1.37

1 ¾ compressed length with .700 travel

Guides & Documents

Clutch Bearings Warranty (60578130)

Warranty Information

Click for details

STREET DUAL DISC, HYDRAULICS, FLYWHEELS, MULTI-DISC CIRCLE TRACK

The above referenced units are strictly factory warranty only.

Units are not to be returned for warranty consideration to Speedway Motors.

EACH OF THESE UNITS ARE TAGGED WITH A FACTORY WARRANTY TAG/LABEL TO CONTACT RAM DIRECTLY FOR WARRANTY REPLACEMENT CONSIDERATION.

Warranty return must be processed with Ram directly and not Speedway Motors.

Speedway Motors cannot facilitate the return of defective Ram Automotive Co. products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Ram Automotive Co. at 1-803-788

Ram Clutches 78130 Specifications

KEY SPECS
MFG. Part #	78130
Brand	Ram Clutches

GENERAL
Material Type	Steel
Overall Length	4.875"
Finish	Natural
Hardware Included	No
Notes	Shaft measures 3-5/8"
GTIN Code	809009356701
Sold in Quantity	Each

Ratings & Reviews

4.9

10 Reviews

Overall Assessment

Our product consistently receives positive feedback for its high-quality materials and excellent fitment. Many customers note the impressive performance after installation, expressing their satisfaction and willingness to purchase again. Despite some modifications needed for custom applications, the product integrates smoothly into various settings. Although instructions might be unclear, customers find the installation process manageable due to the product's easy-to-understand design. This further underscores its practicality and usability, distinguishing our product from competitors.

Write A Review

4.9

10 reviews

Filter by Ratings

Sort Reviews

One time buy

5.0

9 months ago

Addison

Verified

Needed w model a clutch brake assembly

Would Recommend

Working as intended

5.0

4 years ago

Jake

Grand Rapids, MI

Verified

Custom application. Ford WC t5 behind a Mercruiser 3.7L. Ended up having to turn the OD of the bearing retainer down to fit into the right adapter bellhousing, other than that everything installed smoothly and the clutch feels great.

Would Recommend

Excellent Product

5.0

4 years ago

Fig1

Chino Valley, Az.

Verified

Although this part did not work for the project I am involved in the customer service was excellent. The part was very high quality.

Would Recommend

I would buy this product again.

5.0

5 years ago

Drilldog

Hayden Lake, Idaho

Verified

Product was an easy installation. On my T5 transmission mounted on a 302 w/ a Luk flywheel and clutch I had to add extra shims to get the throw out bearing within .200" of the clutch fingers. Adding the extra shims moved the throw out bearing far enough out that I had to lenghten the guide rod .750". Don't forget to pull the bearing race off the old shaft and install it on the new provided shaft.

Would Recommend

I recommend this product

5.0

5 years ago

Rolix

Paso Robles

Verified

Quality product. Fitment is dead on!

Would Recommend

Great quality and easy to follow instructions

5.0

6 years ago

Jack

Perth

Verified

Great product and easy to follow instructions

Would Recommend

Awesome.

5.0

7 years ago

Matt

Ontario Canada

Verified

Nice parts. Can't wait to get it installed and put it to work.

Would Recommend

Fit perfect

5.0

8 years ago

Bob

Ofallon mo

Verified

Fit perfect

great customer very happy

5.0

14 years ago

Pavement Optional Automotive & Off Road

Lake Havasu, AZ

Verified

A little time consuming due to trans removal and custome line making, but worked great to get rid of the cable

Would Recommend

Overall good product,but

4.0

14 years ago

Ranchero Driver

Boca Raton, FL

Verified

Product is complete, but the instructions were useless. Refers to nonexistent illustrations. Use common sense and throw instructions away.

Would Recommend

Showing 10 of 10 reviews
