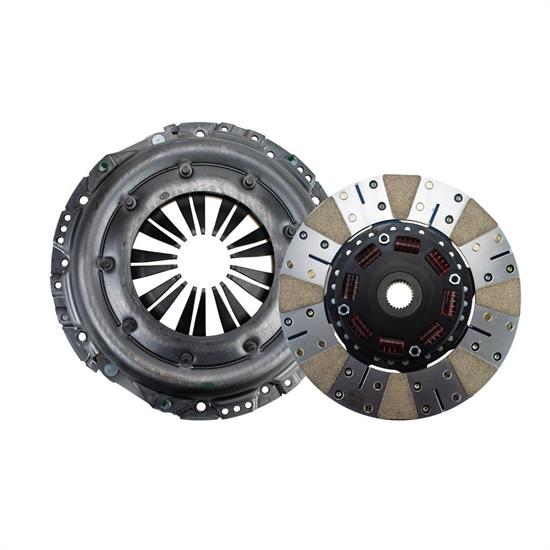

Ram Clutches 98969T Clutch, Ford 11 Inch X 1-1/8-26, Diaphragm
26 Spline Count, 1.125" Shaft Diameter, 11" Diameter, Metallic/Organic Friction Material
MUSCLE CAR PERFORMANCE TO 550 HORSEPOWER
As power levels move up to and beyond 500 horsepower. RAM POWERGRIP meets the challenge with a combination of organic and metallic disc friction surfaces that effectively increase the clutch capacity to the 550 horsepower level. The 8-spring hub is equipped with RAM POLYCOIL damper springs encapsulated in polyurethane. This spring can handle three times the shock load of just the coil spring, and is standard in all RAM competition discs. The RAM Competition pressure plate in this kit provides 30% more clamp pressure than stock, and meets SFI specifications. At this high level of performance RAM POWERGRIP provides surprisingly good driving characteristics with smooth, comfortable driver control. Sets include pressure plate, disc, release bearing, and alignment tool unless otherwise noted.
- 11 x 1 1/8-26 spline Ford
- 8 spring hub
- For applications up to 550 hp
- Includes pressure plate, clutch disc, release bearing, alignment tool
ApplicationFord 11 X 1-1/8-26 Diaphragm
Instruction Sheet (PDF)
- This item ships directly from the manufacturer. It may take an additional 2 business days for Ram Clutches to ship this item.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
