Ram Clutches 98794HDT Clutch, Ford/Mercury 10.5 Inch X 1-1/8-26
26 Spline Count, 1.125" Shaft Diameter, 10.5" Diameter, Metallic Friction Material
STREET AND COMPETITION PERFORMANCE TO 650 HORSEPOWER
?POWERGRIP HD is a true “strip/street” competition clutch system that can handle the rigors of weekend racing and spirited street driving. This system has the same components as standard POWERGRIP above with the exception that the disc friction surfaces are both sintered metallic. Sintered metallic provides a degree of slippage on vehicle launch to prevent the violent and uncontrollable engagement characteristics of paddle type metallic discs. This firm consistent engagement is easy to control. Some chatter is likely on engagement with rear gearing less than 3.73 in street applications. Each set includes the pressure plate, clutch disc, release bearing, and alignment tool unless otherwise noted. Use Powergrip HD for power levels to 650 horsepower, or lower powered vehicles that see frequent track duty.
- 10.5 x 1 1/8-26 spline
- 8 spring hub
- For applications up to 650 hp

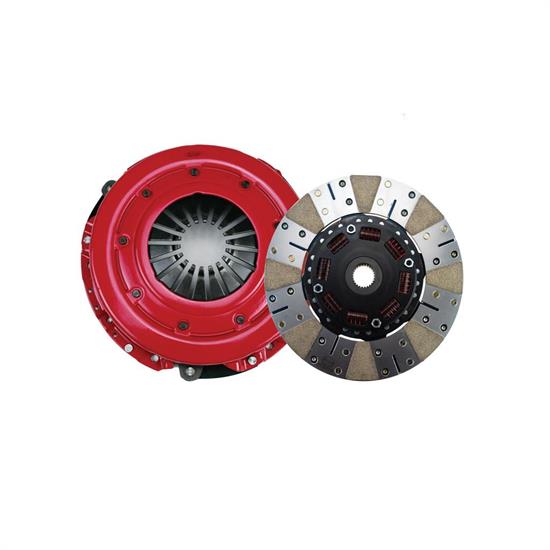

- Includes pressure plate, clutch disc, release bearing, alignment tool
ApplicationFord/Mercury 10.5 X 1-1/8-26
Instruction Sheet (PDF)
- This item ships directly from the manufacturer. It may take an additional 2 business days for Ram Clutches to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
