#60592766
Ram Clutches 92766 Clutch Set, Mopar, 10.5 x 1-23, Borg & Beck
$329.00
set
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
273, 318, 340, 360, 361, 383, 413, 10.5" Diameter
See more details
Key Specs
Input Spline Quantity | 23 |
Diameter | 10.5" |
Friction Material | Organic |
Disc Style | Full face |
Throwout Bearing Style | Standard |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyRam Clutches 92766 Details
Ram Clutches 92766 Details

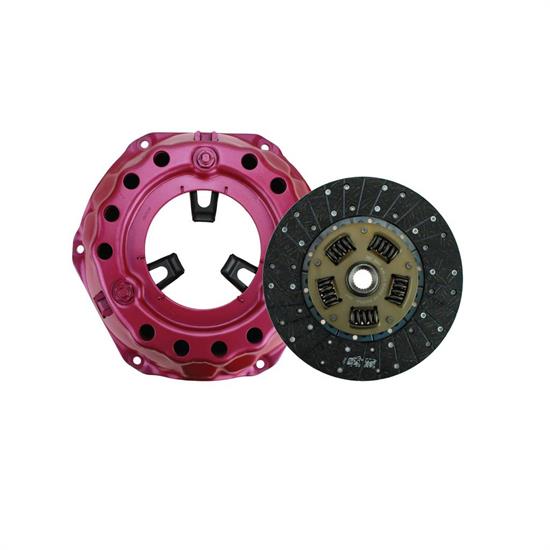

Musclecar clutch sets are an affordable upgrade from a stock replacement unit, most popular for restoration applications where a slightly better unit is required. Musclecar sets include a higher clamp load pressure plate along with a premium quality 5 or 6 spring double spring hub organic disc. The higher clamp load addresses the higher torque produced by many earlier muscle cars and yet retains a very smooth engagement for low speed driving and cruising. These sets are also ideal for mild bolt on cars that will only see street driving. Sets include pressure plate, clutch disc, release bearing, and alignment tool unless otherwise noted.
- 10.5 x 1-23 spline Chrysler
- Borg & Beck
- 6 spring hub
- For applications up to 450 hp
- Includes pressure plate, clutch disc, release bearing, alignment tool
Ram Clutches 92766 Specifications
Ram Clutches 92766 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 92766 |
Brand | Ram Clutches |
Input Spline Quantity | 23 |
Diameter | 10.5" |
Friction Material | Organic |
Disc Style | Full face |
Throwout Bearing Style | Standard |
Flywheel Included | No |
Hardware Included | No |
GENERAL | |
Input Shaft Diameter | 1" |
Hub Style | Sprung |
Pressure Plate Style | Borg and Beck |
Throwout Bearing Included | Yes |
Alignment Tool Included | Yes |
Pilot Bushing Included | No |
Counterweight Assist | No |
Sold in Quantity | Kit |
Max Horsepower Rating | 450 |
GTIN Code | 809009362108 |
Spline Count | 23 |
Shaft Diameter | 1.000" |
