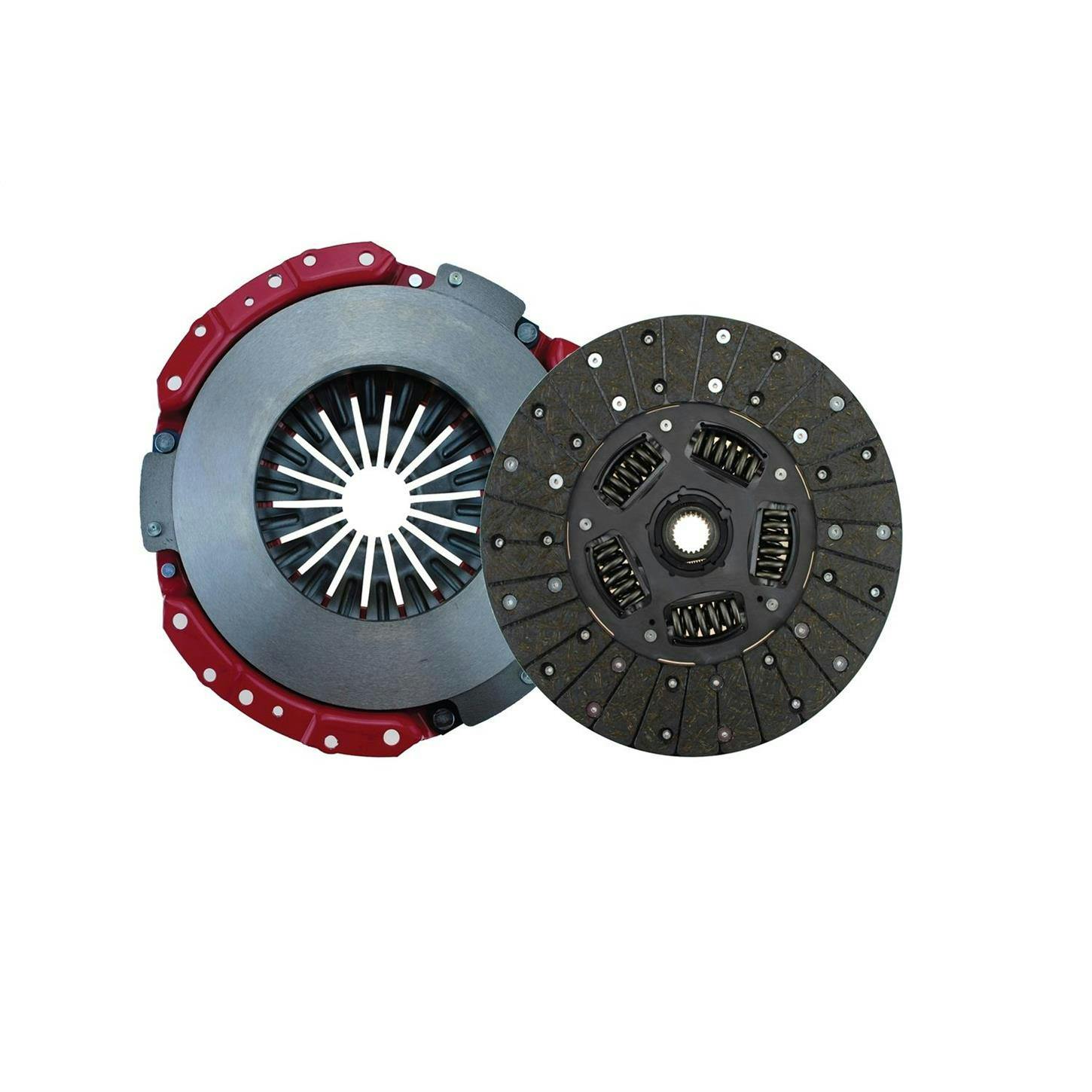

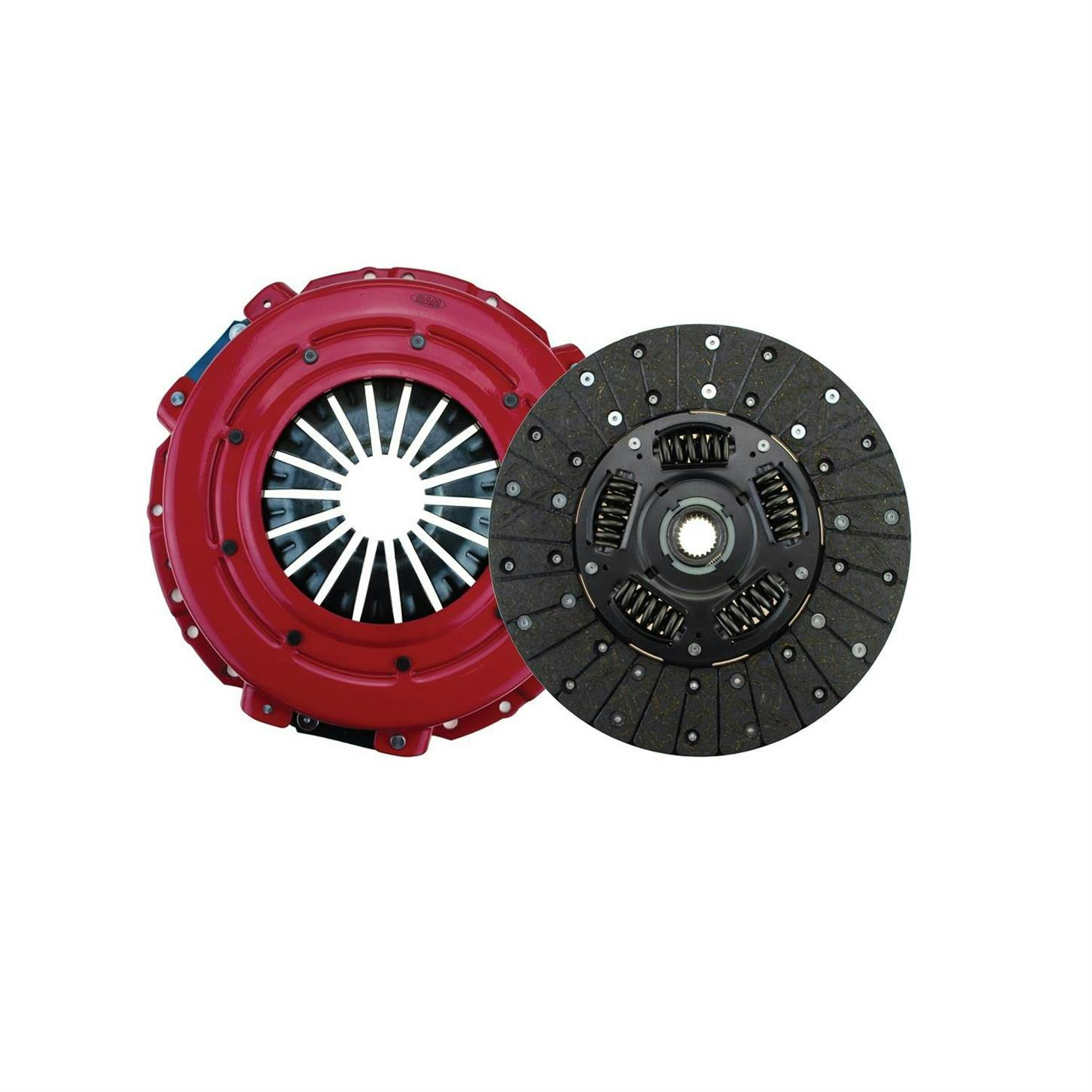

Ram Clutches 88955HDX HDX Clutch, Ford 11 Inch X 1-23 Spline

#60588955HDX

Ram Clutches 88955HDX HDX Clutch, Ford 11 Inch X 1-23 Spline

Name: Ram Clutches 88955HDX HDX Clutch, Ford 11 Inch X 1-23 Spline
Brand: Ram Clutches
SKU: 60588955HDX
Price: 260 USD
Availability: Discontinued

Write a Review

Ask a Question

Discontinued

This item is currently not available

Shop all Ram Clutches HDX Series Clutches

Product Summary

302, 351C, 351W, 390, 428, 23 Spline Count

See more details

Key Specs

Input Spline Quantity	23
Input Shaft Diameter	1"
Diameter	11"
Friction Material	Organic
Disc Style	Full face

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Ram Clutches 88955HDX Details

GREAT DRIVEABILITY AND PERFORMANCE TO 450 HORSEPOWER

The basic RAM concept of clutch performance is simple: Increased clamp pressure is the single most effective way to manage high horsepower or load, especially in street driven performance cars. We purpose build RAM HDX pressure plates with 30% more clamp pressure than stock. The second important feature is smooth, chatter free operation, which we achieve with premium organic composite disc friction material. Also, HDX discs feature our exclusive 8-spring hub assembly for added load capacity. HDX. Great driveability and control for power levels to 450 horsepower. Sets include pressure plate, disc, release bearing, and alignment tool unless otherwise noted.

11 x 1-23 spline
Diaphragm
6 spring helix hub
Includes pressure plate, clutch disc, alignment tool
For applications up to 450 hp

Clutches, Flywheels and release bearings are STRICTLY FACTORY WARRANTY ONLY. Customer must return the unit to RAM for evaluation and inspection.

For a full list of warranty information please see our warranty information here

Application

Ford 11 X 1-23

Charts

Instruction Sheet (PDF)

Guides & Documents

Clutches Installation Instructions (60588955HDX)

Warranty Information

Click for details

Speedway Motors cannot facilitate the return of defective Ram Automotive Co. products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Ram Automotive Co. at 1-803-788

CA Prop 65

Ram Clutches 88955HDX Specifications

KEY SPECS
MFG. Part #	88955HDX
Brand	Ram Clutches
Input Spline Quantity	23
Input Shaft Diameter	1"
Diameter	11"
Friction Material	Organic
Disc Style	Full face
Hub Style	Sprung
Throwout Bearing Style	Standard
Flywheel Included	No
Hardware Included	No

GENERAL
Pressure Plate Style	Diaphragm
Throwout Bearing Included	No
Alignment Tool Included	Yes
Pilot Bushing Included	No
Counterweight Assist	No
Sold in Quantity	Kit
Max Horsepower Rating	450
GTIN Code	809009386357
Spline Count	23
Shaft Diameter	1"

Ratings & Reviews

Be the first to write a review.

Fitment

1968-1972 DeTomaso Mangusta

Ford 302

1971-1974 DeTomaso Pantera

351C Ford 335 Series Cleveland V8

1981-1987 DeTomaso Pantera

351C Ford 335 Series Cleveland V8

1968-1977 Ford Bronco

Ford 302

1978-1979 Ford Bronco

351M Ford 335 Series Cleveland V8

1980-1982 Ford Bronco

351M Ford 335 Series Cleveland V8
Ford 302

1983-1984 Ford Bronco

Ford 302

1968-1969 Ford Country Sedan

Ford 302

1970-1974 Ford Country Sedan

351C Ford 335 Series Cleveland V8
Ford 302

1968-1969 Ford Country Squire

Ford 302

1970-1974 Ford Country Squire

351C Ford 335 Series Cleveland V8
Ford 302

1968-1969 Ford Custom

Ford 302

1970-1972 Ford Custom

351C Ford 335 Series Cleveland V8
Ford 302

1968-1969 Ford Custom 500

Ford 302

1970-1974 Ford Custom 500

351C Ford 335 Series Cleveland V8
Ford 302

1975-1977 Ford Custom 500

351M Ford 335 Series Cleveland V8

1968-1974 Ford E-100 Econoline

Ford 302

1975 Ford E-100 Econoline

351M Ford 335 Series Cleveland V8
Ford 302

1976-1978 Ford E-100 Econoline

351M Ford 335 Series Cleveland V8

1979-1982 Ford E-100 Econoline

351M Ford 335 Series Cleveland V8
Ford 302

1983 Ford E-100 Econoline

Ford 302

1975-1978 Ford E-100 Econoline Club Wagon

351M Ford 335 Series Cleveland V8

1979-1982 Ford E-100 Econoline Club Wagon

351M Ford 335 Series Cleveland V8
Ford 302

1983 Ford E-100 Econoline Club Wagon

Ford 302

1975 Ford E-150 Econoline

351M Ford 335 Series Cleveland V8
Ford 302

1976-1978 Ford E-150 Econoline

351M Ford 335 Series Cleveland V8

1979-1982 Ford E-150 Econoline

351M Ford 335 Series Cleveland V8
Ford 302

1983-1984 Ford E-150 Econoline

Ford 302

1975-1978 Ford E-150 Econoline Club Wagon

351M Ford 335 Series Cleveland V8

1979-1982 Ford E-150 Econoline Club Wagon

351M Ford 335 Series Cleveland V8
Ford 302

1983-1984 Ford E-150 Econoline Club Wagon

Ford 302

1968-1974 Ford E-200 Econoline

Ford 302

1975 Ford E-250 Econoline

351M Ford 335 Series Cleveland V8
Ford 302

1976-1978 Ford E-250 Econoline

351M Ford 335 Series Cleveland V8

1979-1982 Ford E-250 Econoline

351M Ford 335 Series Cleveland V8
Ford 302

1983-1984 Ford E-250 Econoline

Ford 302

1975-1978 Ford E-250 Econoline Club Wagon

351M Ford 335 Series Cleveland V8

1979-1980 Ford E-250 Econoline Club Wagon

351M Ford 335 Series Cleveland V8
Ford 302

1981-1982 Ford E-250 Econoline Club Wagon

351M Ford 335 Series Cleveland V8

1968-1974 Ford E-300 Econoline

Ford 302

1975 Ford E-350 Econoline

351M Ford 335 Series Cleveland V8
Ford 302

1976-1978 Ford E-350 Econoline

351M Ford 335 Series Cleveland V8

1979-1982 Ford E-350 Econoline

351M Ford 335 Series Cleveland V8
Ford 302

1977-1978 Ford E-350 Econoline Club Wagon

351M Ford 335 Series Cleveland V8

1979-1980 Ford E-350 Econoline Club Wagon

351M Ford 335 Series Cleveland V8
Ford 302

1981-1982 Ford E-350 Econoline Club Wagon

351M Ford 335 Series Cleveland V8

1975-1976 Ford Elite

351M Ford 335 Series Cleveland V8

1969-1976 Ford F-100

Ford 302

1977-1979 Ford F-100

351M Ford 335 Series Cleveland V8
Ford 302

1980 Ford F-100

Ford 302

1981 Ford F-100

351M Ford 335 Series Cleveland V8
Ford 302

1982-1983 Ford F-100

Ford 3.8 Essex V6
Ford 302

1975-1976 Ford F-150

Ford 302

1977-1982 Ford F-150

351M Ford 335 Series Cleveland V8
Ford 302

1983-1984 Ford F-150

Ford 302

1969-1976 Ford F-250

Ford 302

1977-1982 Ford F-250

351M Ford 335 Series Cleveland V8
Ford 302

1983-1984 Ford F-250

Ford 302

1972-1976 Ford F-350

Ford 302

1977-1980 Ford F-350

351M Ford 335 Series Cleveland V8
Ford 302

1981-1982 Ford F-350

351M Ford 335 Series Cleveland V8

1968-1969 Ford Fairlane

Ford 302

1970 Ford Fairlane

351C Ford 335 Series Cleveland V8
Ford 302

1978-1979 Ford Fairmont

Ford 302

1968-1969 Ford Falcon

Ford 302

1970 Ford Falcon

351C Ford 335 Series Cleveland V8
Ford 302

1968-1969 Ford Galaxie 500

Ford 302

1970-1974 Ford Galaxie 500

351C Ford 335 Series Cleveland V8
Ford 302

1972-1974 Ford Gran Torino

351C Ford 335 Series Cleveland V8
Ford 302

1975-1976 Ford Gran Torino

351M Ford 335 Series Cleveland V8

1975-1980 Ford Granada

Ford 302

1982 Ford Granada

Ford 3.8 Essex V6

1968-1969 Ford LTD

Ford 302

1970-1974 Ford LTD

351C Ford 335 Series Cleveland V8
Ford 302

1975-1976 Ford LTD

351M Ford 335 Series Cleveland V8

1977-1978 Ford LTD

351M Ford 335 Series Cleveland V8
Ford 302

1979-1982 Ford LTD

Ford 302

1983-1984 Ford LTD

Ford 3.8 Essex V6
Ford 302

1985-1986 Ford LTD

Ford 3.8 Essex V6

1977-1979 Ford LTD II

351M Ford 335 Series Cleveland V8
Ford 302

1971-1977 Ford Maverick

Ford 302

1968-1969 Ford Mustang

Ford 302

1970-1973 Ford Mustang

Ford 335 Series Cleveland V8 351C Cobra Jet
Ford 302

1979 Ford Mustang

Ford 302

1982 Ford Mustang

Ford 302

1983-1984 Ford Mustang

Ford 3.8 Essex V6
Ford 302

1985-1986 Ford Mustang

Ford 3.8 Essex V6

1994-2004 Ford Mustang

Ford 3.8 Essex V6

1975-1978 Ford Mustang II

Ford 302

1968-1969 Ford Ranch Wagon

Ford 302

1970-1974 Ford Ranch Wagon

351C Ford 335 Series Cleveland V8
Ford 302

1968-1969 Ford Ranchero

Ford 302

1970-1974 Ford Ranchero

351C Ford 335 Series Cleveland V8
Ford 302

1977-1979 Ford Ranchero

351M Ford 335 Series Cleveland V8
Ford 302

1977-1979 Ford Thunderbird

351M Ford 335 Series Cleveland V8
Ford 302

1980-1981 Ford Thunderbird

Ford 302

1982 Ford Thunderbird

Ford 3.8 Essex V6

1983-1984 Ford Thunderbird

Ford 3.8 Essex V6
Ford 302

1985-1997 Ford Thunderbird

Ford 3.8 Essex V6

1968-1969 Ford Torino

Ford 302

1970-1974 Ford Torino

351C Ford 335 Series Cleveland V8
Ford 302

1975-1976 Ford Torino

351M Ford 335 Series Cleveland V8

1980 Lincoln Continental

Ford 302

1982 Lincoln Continental

Ford 3.8 Essex V6
Ford 302

1983-1984 Lincoln Continental

Ford 302

1980-1983 Lincoln Mark VI

Ford 302

1984 Lincoln Mark VII

Ford 302

1981-1984 Lincoln Town Car

Ford 302

1977-1980 Lincoln Versailles

Ford 302

1979 Mercury Capri

Ford 302

1982 Mercury Capri

Ford 302

1983-1984 Mercury Capri

Ford 3.8 Essex V6
Ford 302

1985-1986 Mercury Capri

Ford 3.8 Essex V6

1968-1969 Mercury Comet

Ford 302

1971-1977 Mercury Comet

Ford 302

1968-1971 Mercury Cougar

Ford 302

1972 Mercury Cougar

Ford 335 Series Cleveland V8 351C Boss
Ford 335 Series Cleveland V8 351C Cobra Jet

1975-1976 Mercury Cougar

351M Ford 335 Series Cleveland V8

1977-1979 Mercury Cougar

351M Ford 335 Series Cleveland V8
Ford 302

1980-1981 Mercury Cougar

Ford 302

1982 Mercury Cougar

Ford 3.8 Essex V6

1983-1984 Mercury Cougar

Ford 3.8 Essex V6
Ford 302

1985-1997 Mercury Cougar

Ford 3.8 Essex V6

1968-1971 Mercury Cyclone

Ford 302

1978 Mercury Grand Marquis

351M Ford 335 Series Cleveland V8

1979-1984 Mercury Grand Marquis

Ford 302

1979-1982 Mercury Marquis

Ford 302

1983-1986 Mercury Marquis

Ford 3.8 Essex V6

1975-1980 Mercury Monarch

Ford 302

1968-1974 Mercury Montego

Ford 302

1975-1976 Mercury Montego

351M Ford 335 Series Cleveland V8

1978-1979 Mercury Zephyr

Ford 302
